$9.99
SKU: B07KW445DJ

OVERVIEW

Price: $9.99
(as of Nov 25, 2025 05:31:13 UTC - Details)

Technical Details

Collapse all

Summary
RAM ‎LPDDR4

Other Technical Details
Brand ‎Comidox
Series ‎CP317
Item model number ‎CP317
Operating System ‎Linux, Windows
Item Weight ‎1.76 ounces
Package Dimensions ‎5.67 x 3.78 x 0.94 inches
Processor Brand ‎ARM
Number of Processors ‎1
Manufacturer ‎Comidox
ASIN ‎B07KW445DJ
Is Discontinued By Manufacturer ‎No
Date First Available ‎November 26, 2018

Additional Information

Customer Reviews

4.4 out of 5 stars

141 ratings

4.4 out of 5 stars

Best Sellers Rank

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

Product Warranty: For warranty information about this product, please click here

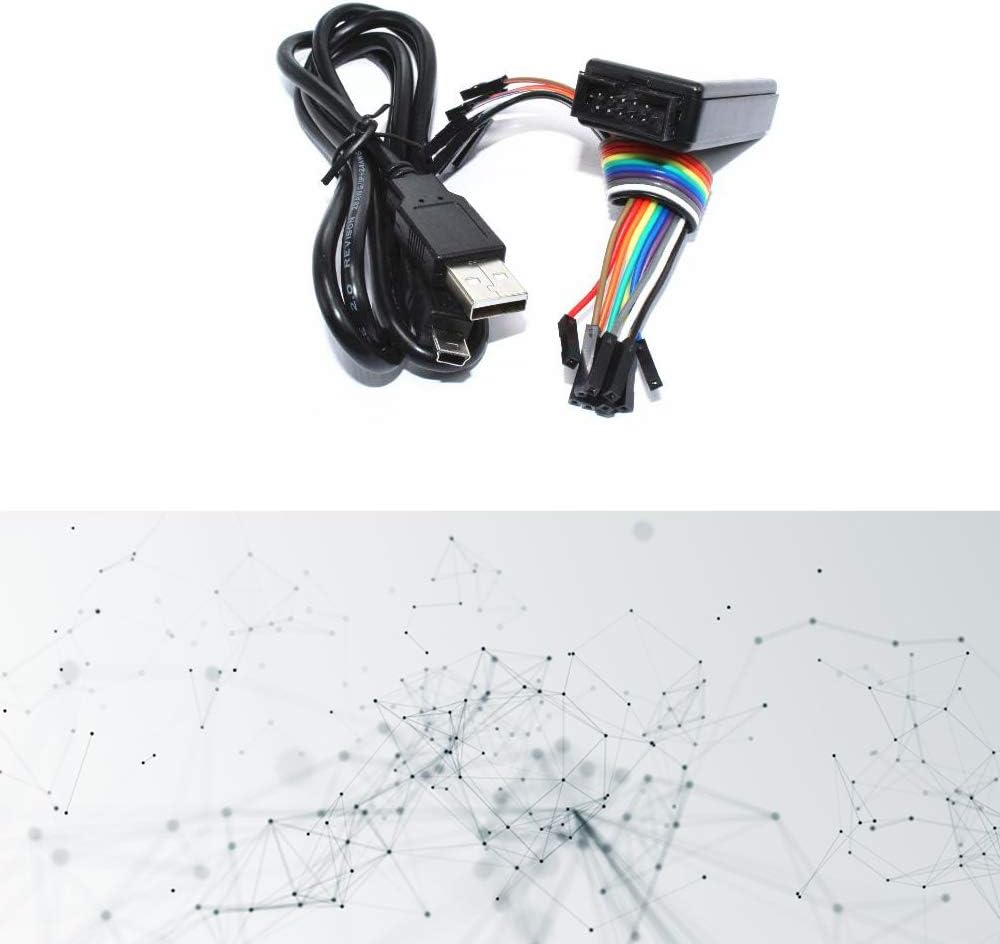

This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported by the software by Sigrok called PulseView.
 Specifications:
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystl: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz)
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!

This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported for PulseView.
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.

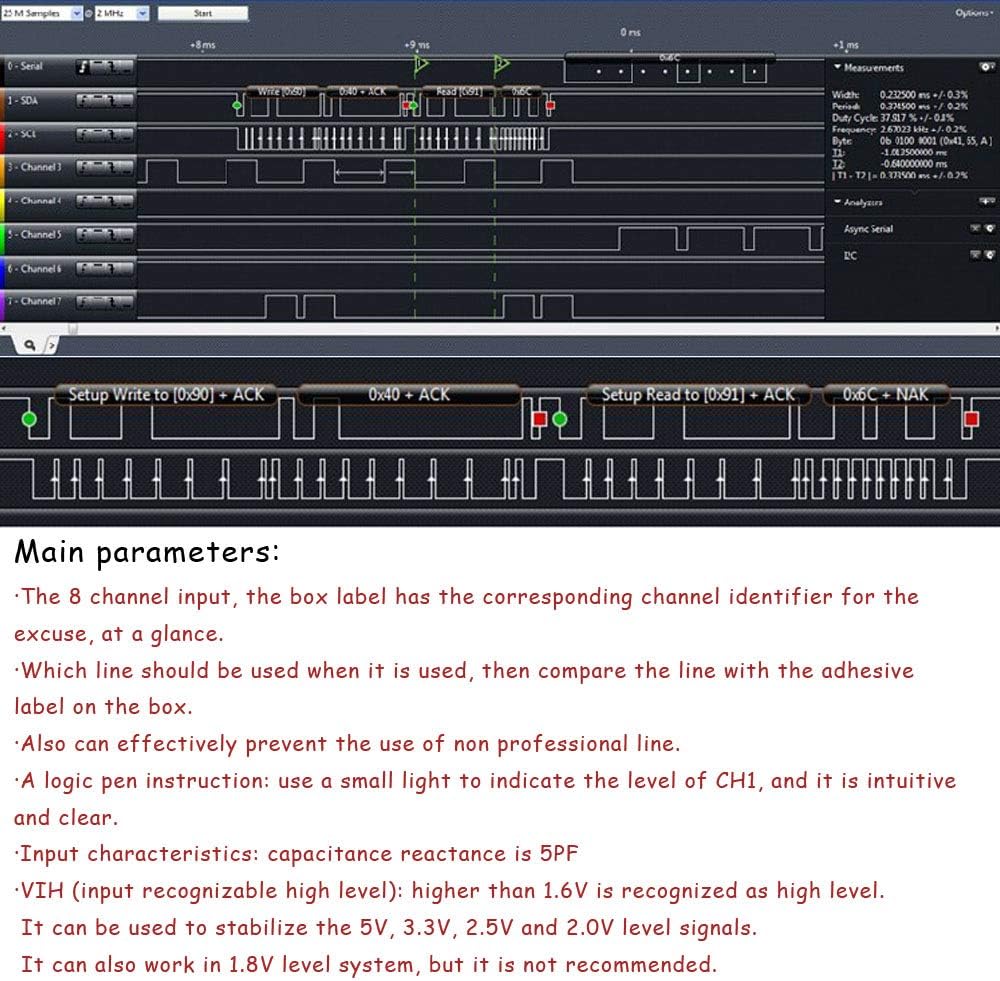

UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.

Customers say

Customers find the logic analyzer works well with Saleae's software and consider it good value for money, with one customer noting it performs great for troubleshooting game logic hardware. They appreciate its ease of use, with one mentioning it's easy to write scripted operations, and find it portable, with one describing it as a highly portable analyzer for field work. The debugging capability receives positive feedback, with one customer noting its suitability for debugging serial communication protocols. Customers disagree on the device's speed.

Price: $9.99
(as of Nov 25, 2025 05:31:13 UTC - Details)
