| Package Dimensions | 5.59 x 3.62 x 1.14 inches |
|---|---|
| Item Weight | 3.17 ounces |
| Manufacturer | UMLOFE |
| ASIN | B092ZR25W5 |
| Date First Available | April 20, 2021 |

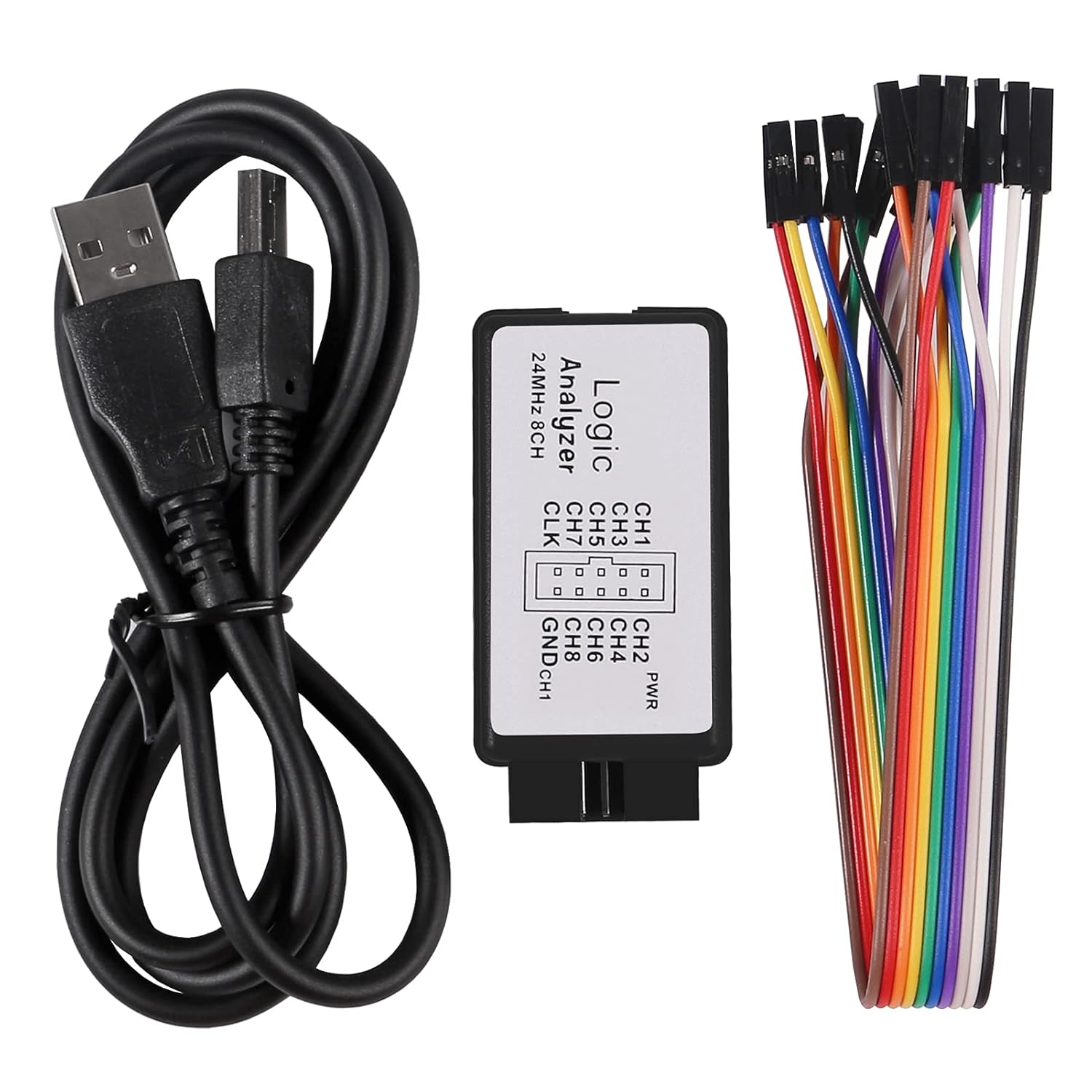

2pcs USB Logic Analyzer Device with USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug for Arduino ARM FPGA M100 SCM
$16.99
OVERVIEW
2pcs USB Logic Analyzer Device with USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug for Arduino ARM FPGA M100 SCM
UMLIFE
Price:
$16.99
$16.99
(as of Feb 28, 2026 11:58:07 UTC –
Details
)
Rating: 5 / 5
Categories: Industrial & Scientific > Test, Measure & Inspect > Electrical Testing > Logic Analyzers
ASIN: B092ZR25W5
Categories: Industrial & Scientific > Test, Measure & Inspect > Electrical Testing > Logic Analyzers
ASIN: B092ZR25W5
What customers are saying
Product overview
Specifications:
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Packing Included:

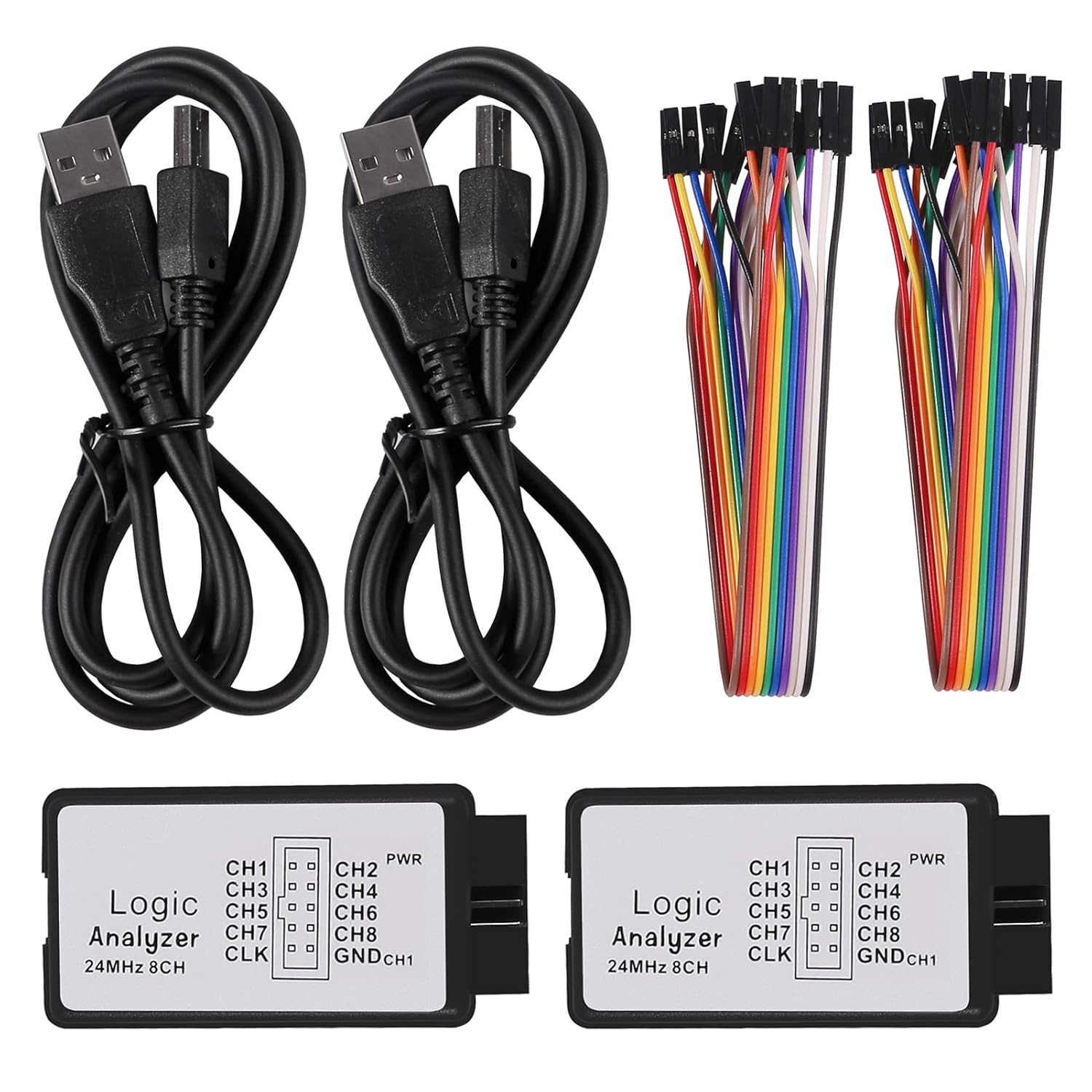

2 Set USB Logic Analyzer Device Set
✹✹The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
✹✹Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
✹✹Input voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V
✹✹ART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
✹✹his item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software, but this item is not an official Saleae product. This item is also supported by the free software by Sigrok called PulseView.
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Packing Included:
2 Set USB Logic Analyzer Device Set
✹✹The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
✹✹Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
✹✹Input voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V
✹✹ART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
✹✹his item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software, but this item is not an official Saleae product. This item is also supported by the free software by Sigrok called PulseView.
