Price:
$15.99

(as of Jan 14, 2026 08:26:05 UTC –

Details
)

Product description

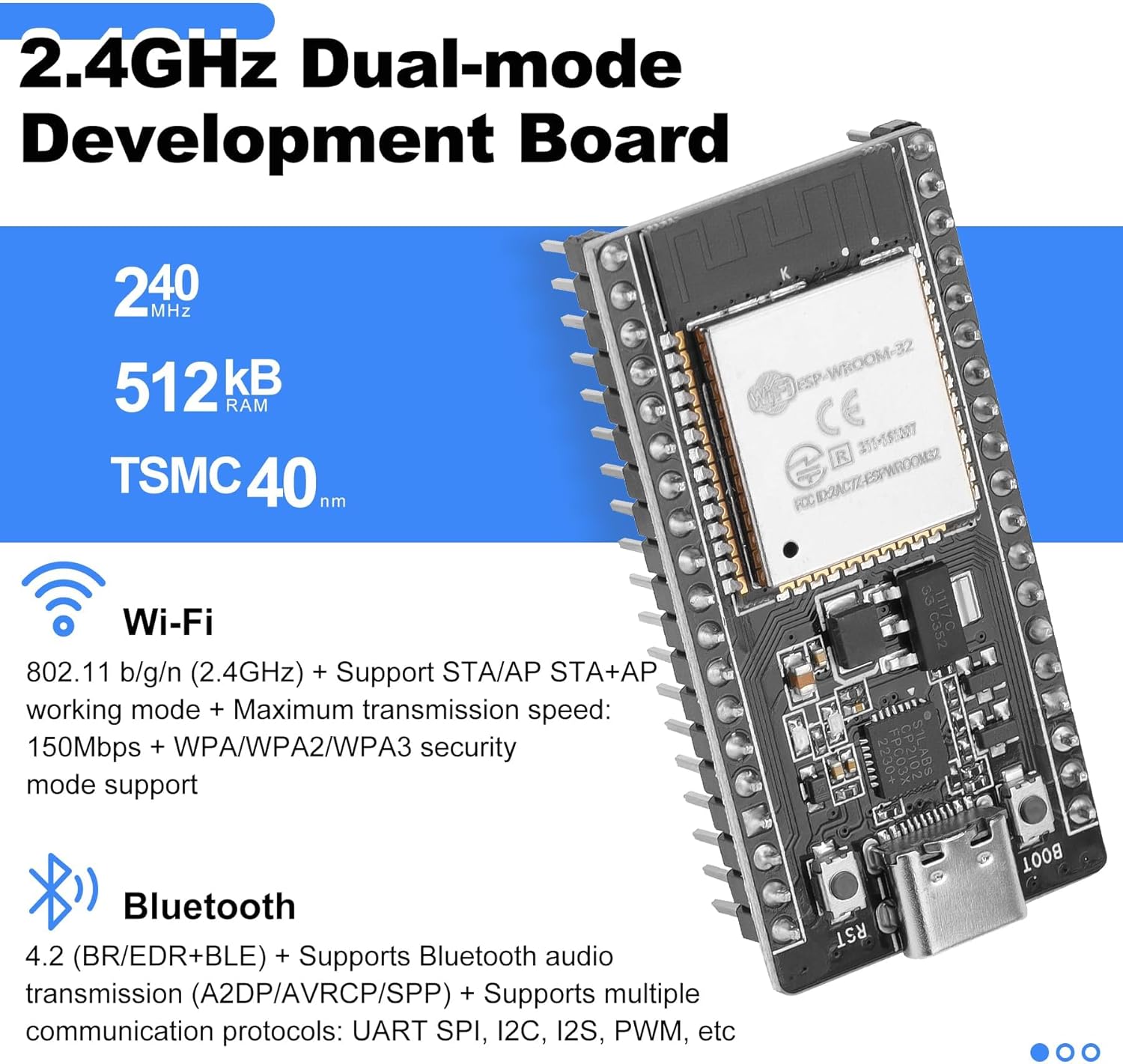

240MHz 512kB RAM TSMC 40nm

2.4GHz Dual-mode Development Board

Wi-Fi:

802.11 b/g/n (2.4GHz) + Support STA/AP STA+AP working mode + Maximum transmission speed: 150Mbps + WPA/WPA2/WPA3 security mode support

Bluetooth:

4.2 (BR/EDR+BLE) + Supports Bluetooth audio transmission (A2DP/AVRCP/SPP) + Supports multiple communication protocols: UART SPI, I2C, I2S, PWM, etc

34 GPIO 12 ADC 8 DAC

TYPE-C USB CP2102 AMS1117 ESP-WROOM-32

Supports multiple communication protocols: UART SPI, I2C, I2S, PWM, etcTouch sensor, Hall sensor, LEDC controllerHardware Accelerator: AES SHA, RSA, etccompatible with Arduino + LoRaNodeMCU-32S Lua WiFi IoT Development Board. Fully supports LoRa WAN protocol

1 Medical Field

2 Home Intelligence

3 Remote Monitoring

4 Monitoring Equipment

2.4GHz Dual WiFi+Bluetooth 802.11 b/g/n • Up to 150 Mbps data rate in 802.11n mode Frame aggregation (TX/RX A-MPDU, RX A-MSDU) 0.4 μ s protection interval Working channel center frequency range: 2412~2484 MHz CPU & On-Chip Memory Built in ESP32-S2 chip, Xtensa single core 32-bit LX7 micro Processor, supports clock frequencies up to 240 MHz 128 KB ROM 320 KB SRAM 16 KB RTC SRAM Module Integrated Components 40 MHz integrated crystal oscillator 4 MB SPI flash Interface USB-C (Type-C) Working Conditions Working voltage/supply voltage: 3.0~3.6 V Working environment temperature: -40~85 ° C Peripheral GPIO, SPI, UART, I2C, I2S, LCD interface, Camera Interface, IR, pulse counter, LED PWM, TWAI (also known as Compliant with ISO 11898-1, i.e. CAN specification 2.0, full speed USB OTG、ADC、DAC、 Touch sensors, temperature sensors Model Number ESP32 ESP-32S ESP-WROOM-32

ESP32& ESP8266 Development Board Series

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars 150

4.3 out of 5 stars 150

4.3 out of 5 stars 16

4.3 out of 5 stars 150

4.3 out of 5 stars 150

4.2 out of 5 stars 15

3.9 out of 5 stars 14

Price

$15.99$15.99

—

—

—

$7.59$7.59

—

$5.99$5.99

Pieces

3

3

4

5

1

3

3

Core Count

Dual

Dual

Dual

Dual

Single

Tensilica L106 32-bit RISC

—

Wireless Standard

802.11 b/g/n, Bluetooth

802.11 b/g/n, Bluetooth

802.11 b/g/n, Bluetooth

802.11 b/g/n, Bluetooth

802.11 b/g/n, Bluetooth

802.11 b/g/n

802.11 b/g/n

Connectivity Tech

Wi-Fi, Bluetooth, I2C

Wi-Fi, Bluetooth, I2C

Wi-Fi, Bluetooth, I2C, USB

Wi-Fi, Bluetooth

Wi-Fi, Bluetooth

Wi-Fi, USB

Wi-Fi

Size(mm)

52.0*26.0*13.0

49.0*29.0*10.0

51.0*28.0+68.5*53.7

40.0*31.0

40.0*30.0*10.0

52.0*26.0*13.0

25.0*14.0*11.0

SPI Flash

16MB

4MB

4MB

4MB

4MB

4 MB

1 MB

IO Port

38 GPIO

38 GPIO

30 GPIO

34 GPIO

30 GPIO

30 GPIO

2 GPIO

Supply Voltage

3.0 ~ 3.6 V

3.0 V ~ 3.6 V

3.3 V ~ 5 V

3.3 V ~ 5 V

.0 ~ 3.6 V

2.7 V ~ 3.6 V

3.0V~3.6V

Antenna Form

Onboard PCB,External connector

Onboard PCB

Onboard PCB

/

Onboard PCB,External connector

Onboard PCB

Onboard PCB

Crystal Oscillator

40 MHz

40 MHz

40 MHz

40 MHz

40 MHz

26 MHz

/

Interfaces

USB-C

Micro USB

USB-C+Micro USB

USB-C

Micro USB

USB-C

UART/GPIO

2.4GHz Dual Mode WiFi+Bluetooth Development Board: Built in ESP32-S chip, Xtensa single core 32-bit LX7 microprocessor, supporting clock frequencies up to 240 MHz. 128 KB ROM, 320 KB SRAM, 16 KB RTC SRAM. The chip supports secondary development without the need for other microcontrollers or processors
Compatible With Arduino+LoRa: The ESP32 development board is 100% compatible with the Arduino IDE, Lua, and Micropython. It is easy to develop and supports the LWIP protocol, Freertos, and three modes: AP, STA, and AP+STA
Advanced Peripheral Interfaces & Sensors: SPI, I2S, UART, I2C, LED PWM, LCD interface, Camera interface, ADC, DAC, touch sensor, temperature sensor, and up to 43 GPIOs. In addition, this series of chips also includes a full-speed USB On The Go (OTG) interface, which can support USB communication
Ultra Low Power Coprocessor (ULP): ESP32-S series chips support multiple low-power operating states, meeting the power consumption requirements for various application scenarios. The precise clock gating, dynamic voltage clock frequency adjustment, and adjustable output power of RF power amplifiers unique to chips can balance communication distance, data rate, and power consumption best
Unique Hardware Security Mechanism: The hardware encryption accelerator supports AES, SHA, and RSA algorithms. RNG, HMAC, and Digital Signature modules provide more security performance. Other security features include flash encryption and secure boot signature verification. A comprehensive security mechanism enables the chip to meet strict security requirements
