Product Description

This product can easily mount Raspberry Pi / Arduino / BeagleBone to DIN rail, expand their range of applications to industrial control.Supports Raspberry Pi 1 Model A+ / Pi 1 Model B+ / Pi 2 Model B / Pi 3 Model B / Pi 3 Model B+ / Pi 4 Module B / Pi 5 / Pi Zero / Pi Zero W, Arduino Uno R2 / Uno R3 / Uno R4 / Mega 2560 R2 / Mega 2560 R3 / MKR Series etc, and BeagleBone / BeagleBone Black / BeagleBone AI / BeagleBone Black Wireless / BeagleBone Green / BeagleBone Green Wireless or SanCloud BeagleBone Enhanced.High quality DIN rail feed and mounting very stable, can support width 35mm / 32mm / 15mm DIN rail. Support horizontal and side installation. The position of the DIN rail feet can be adjusted according to the situation. And the carrier feet can be taken apart for wall-mount use.Thickness 1.5mm/0.06" aluminum bracket sheet, the weight is very light and very strong.Package included: 1x Aluminum bracket, 1 pair DIN rail adapter feed and mount screws, 6x M2.5x10mm standoffs, 12x M2.5x6 pan head screws, 4x M2x12mm standoffs and 8x M2x6mm screws(for Arduino MKR).NOTE: the item not include Raspberry Pi and iron DIN rail. If you want to get 3D STEP or other documents, you can contact the seller.

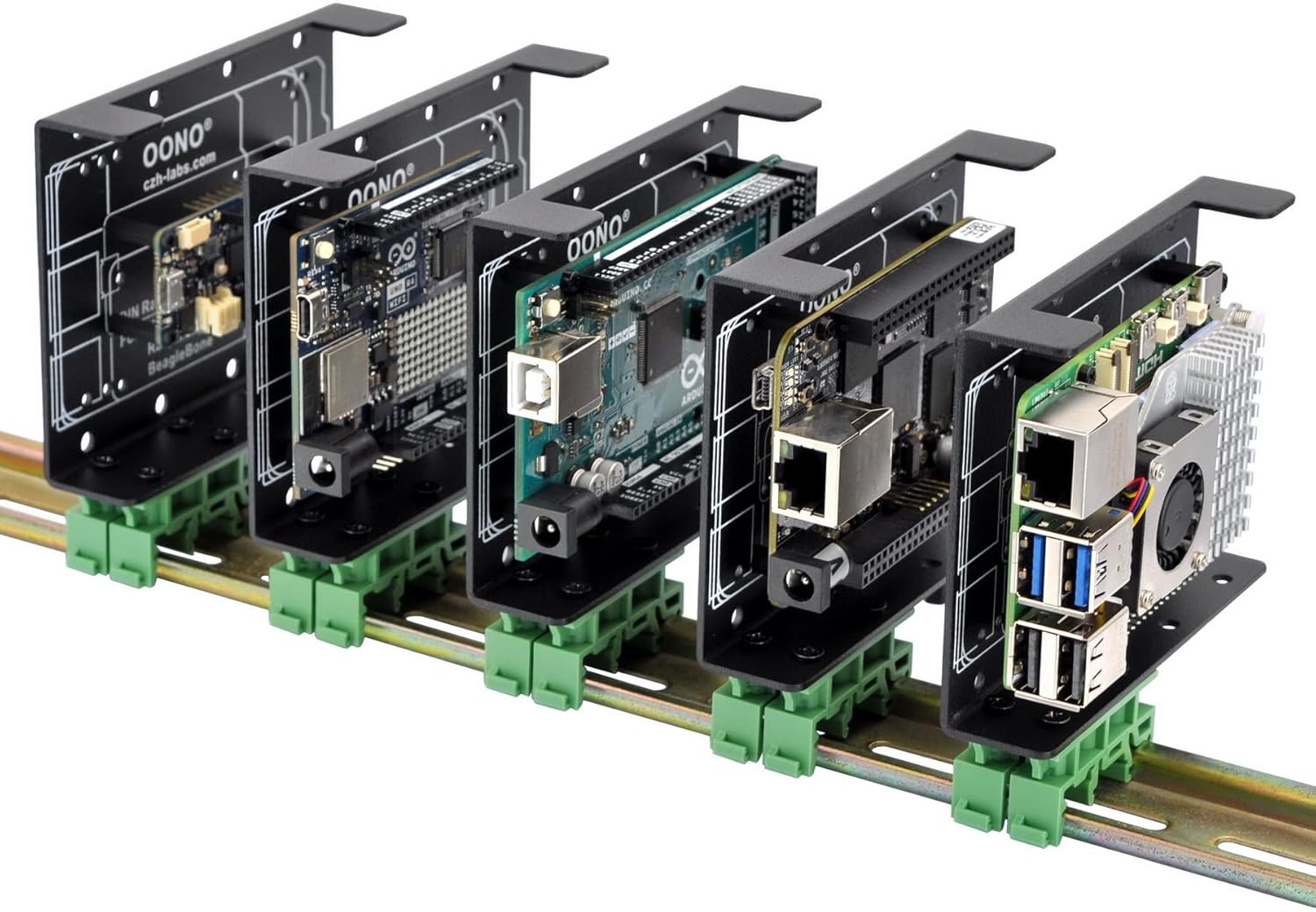

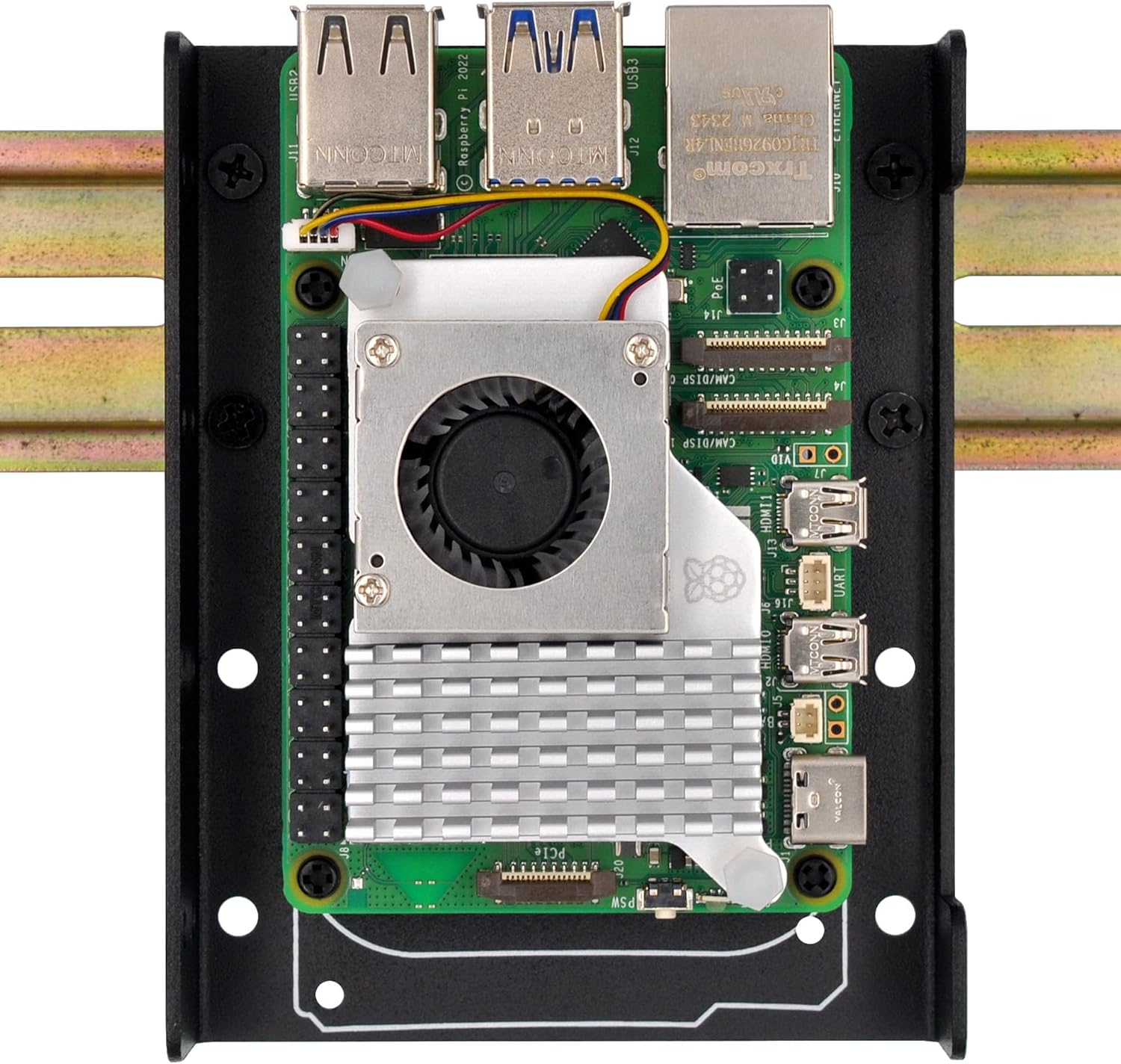

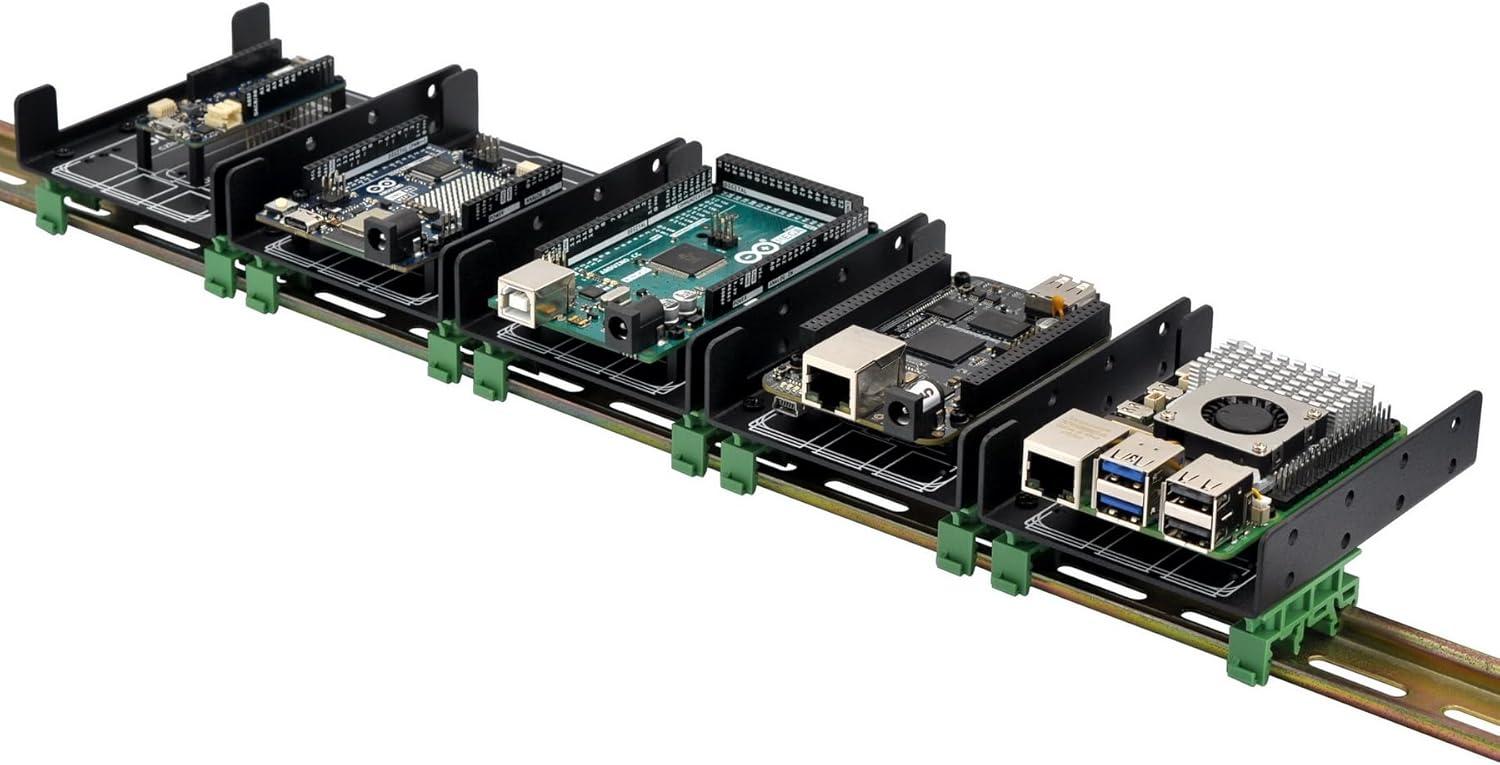

This product can easily mount Raspberry Pi / Arduino / BeagleBone to DIN rail, expand their range of applications to industrial control.
Supports Raspberry Pi 1 Model A+ / Pi 1 Model B+ / Pi 2 Model B / Pi 3 Model B / Pi 3 Model B+ / Pi 4 Module B / Pi 5 / Pi Zero / Pi Zero W, Arduino Uno R2 / Uno R3 / Uno R4 /Mega 2560 R2 / Mega 2560 R3 / MKR Series etc, and BeagleBone / BeagleBone Black / BeagleBone AI / BeagleBone Black Wireless / BeagleBone Green / BeagleBone Green Wireless or SanCloud BeagleBone Enhanced.
Thickness 1.5mm/0.06" aluminum bracket sheet, the weight is very light and very strong. High quality DIN rail feed and mounting very stable, can support width 35mm / 32mm / 15mm DIN rail. Support horizontal and side installation. The position of the DIN rail feet can be adjusted according to the situation. And the carrier feet can be taken apart for wall-mount use.

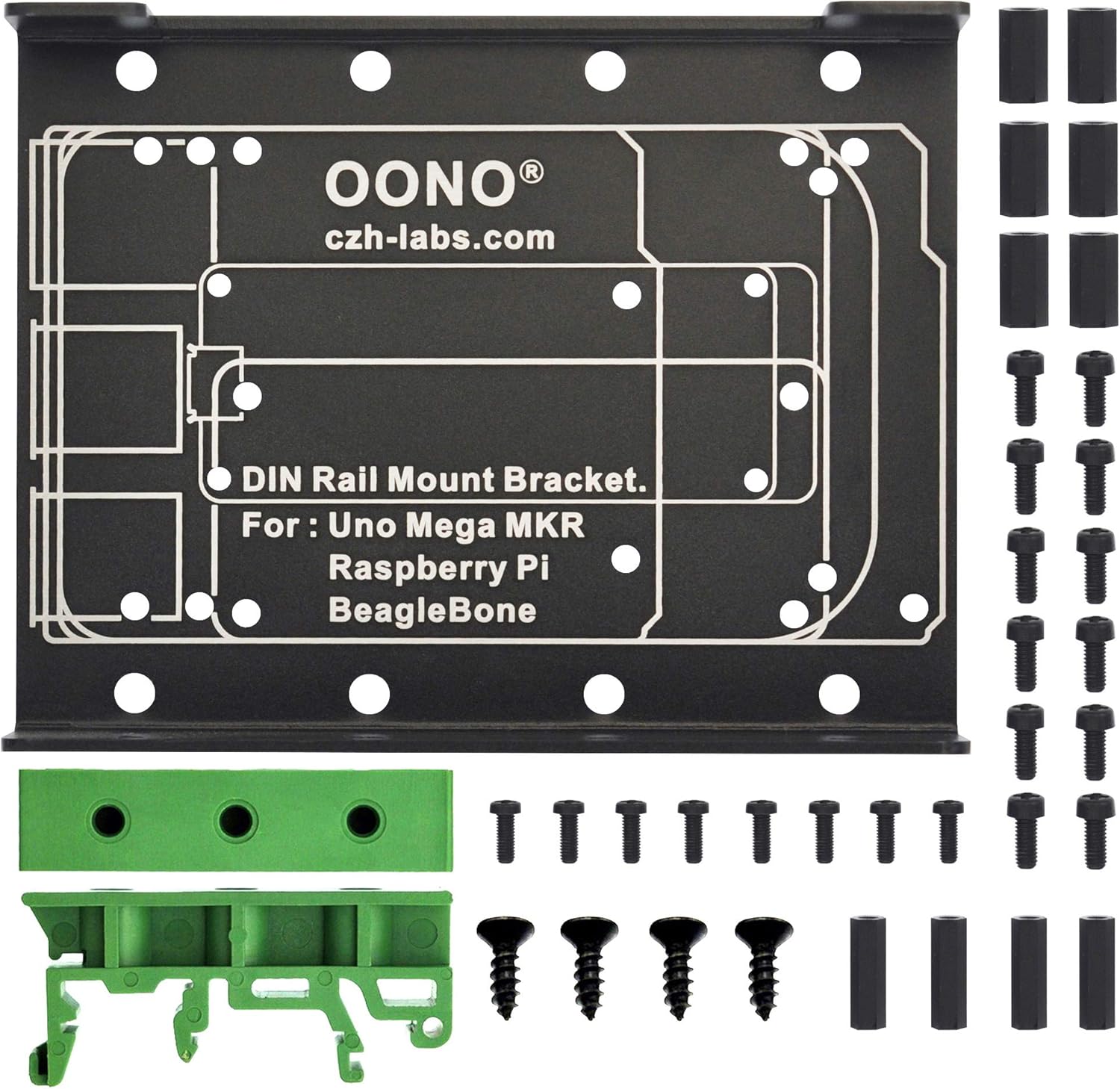

Package included: 1x Aluminum bracket, 1 pair DIN rail adapter feed and mount screws, 6x M2.5x10mm standoffs, 12x M2.5x6 pan head screws, 4x M2x12mm standoffs and 8x M2x6mm screws(for Arduino MKR). NOTE: the item not include Raspberry Pi and iron DIN rail.

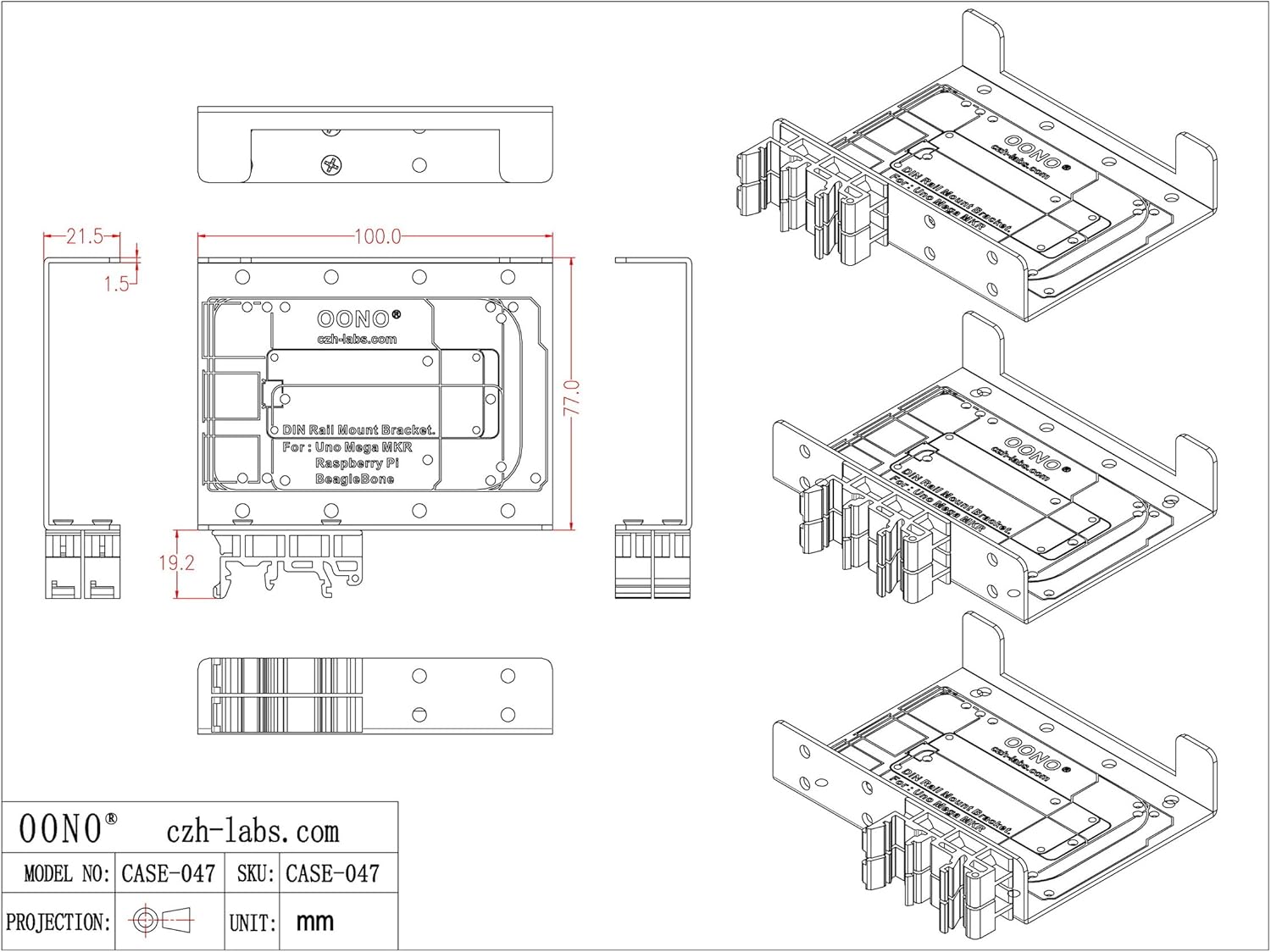

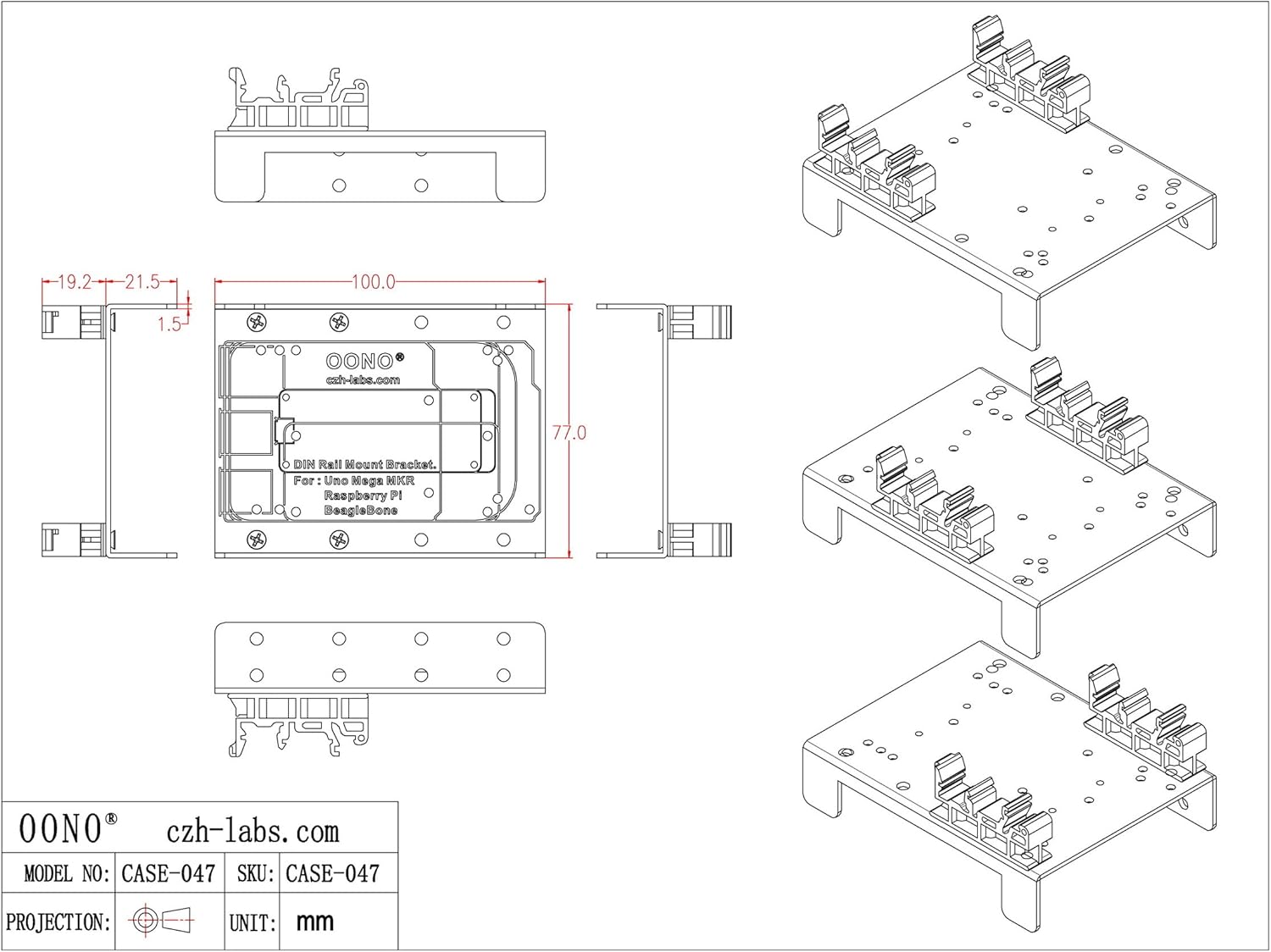

If you want to get 3D STEP or other documents, you can contact the seller.
