The Elegoo Nano Board is a small, complete, and breadboard-friendly board based on the ATmega328P and it works with a mini USB cable. The Elegoo Nano can be powered via USB connection, 6-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The Elegoo Nano has a variety of facilities for communicating with a PC or other microcontrollers.
Input and Output
Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. Some pins have specialized functions:
Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the CH340G USB chip.
Classic LED Project with Nano Board This example project shows the simplest thing you can do with an Elegoo Nano to see physical output: it blinks the on-board LED just like the star in the sky. Hardware needed for this project: 1 x Nano Board 1 x Mini USB Cable 1 x Breadboard 2 x Wires
The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the official Arduino/Genuino UNO, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
You could download the driver of Elegoo Nano V3.0 from ELEGOO official websit.
Package Include :

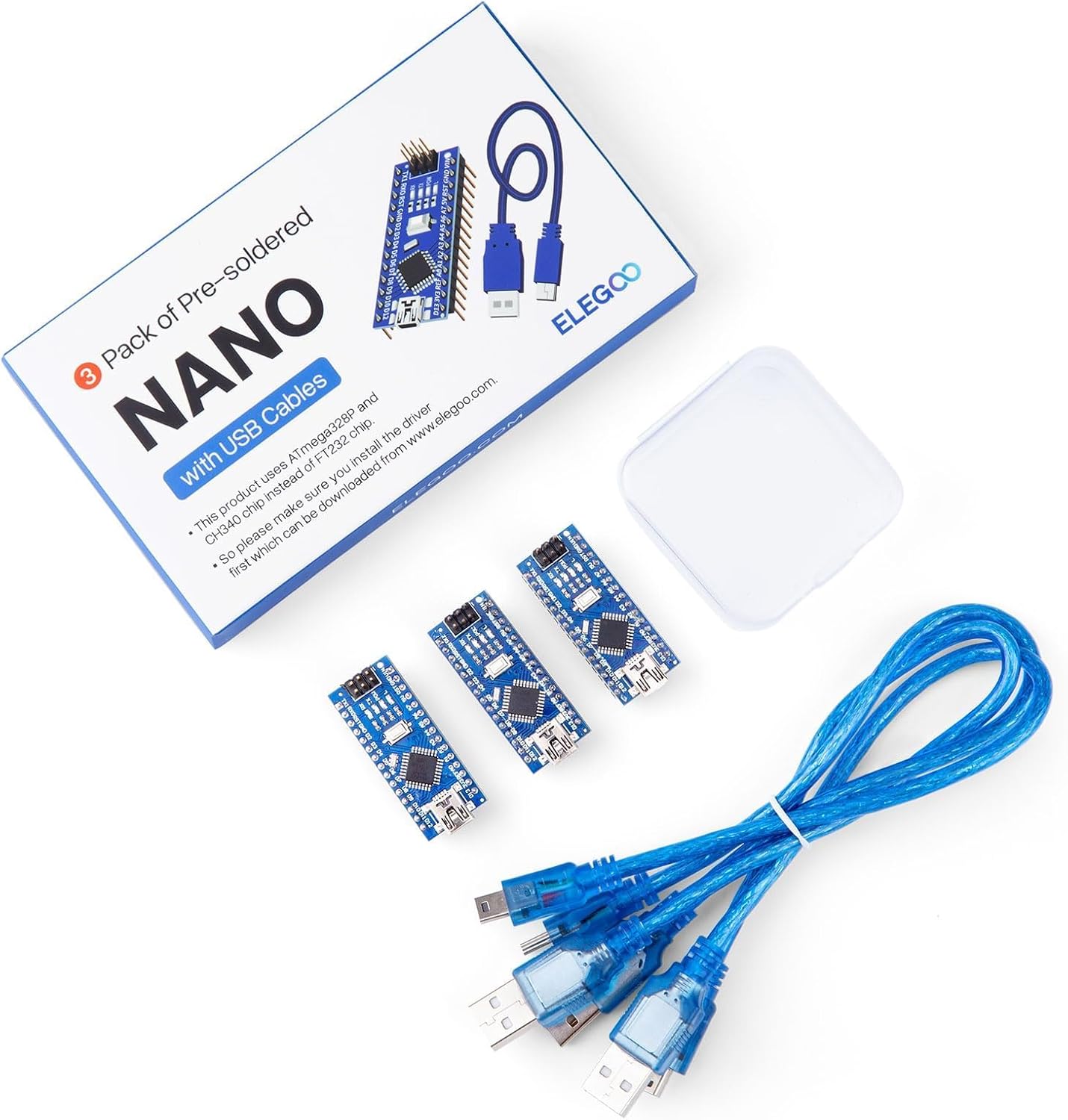

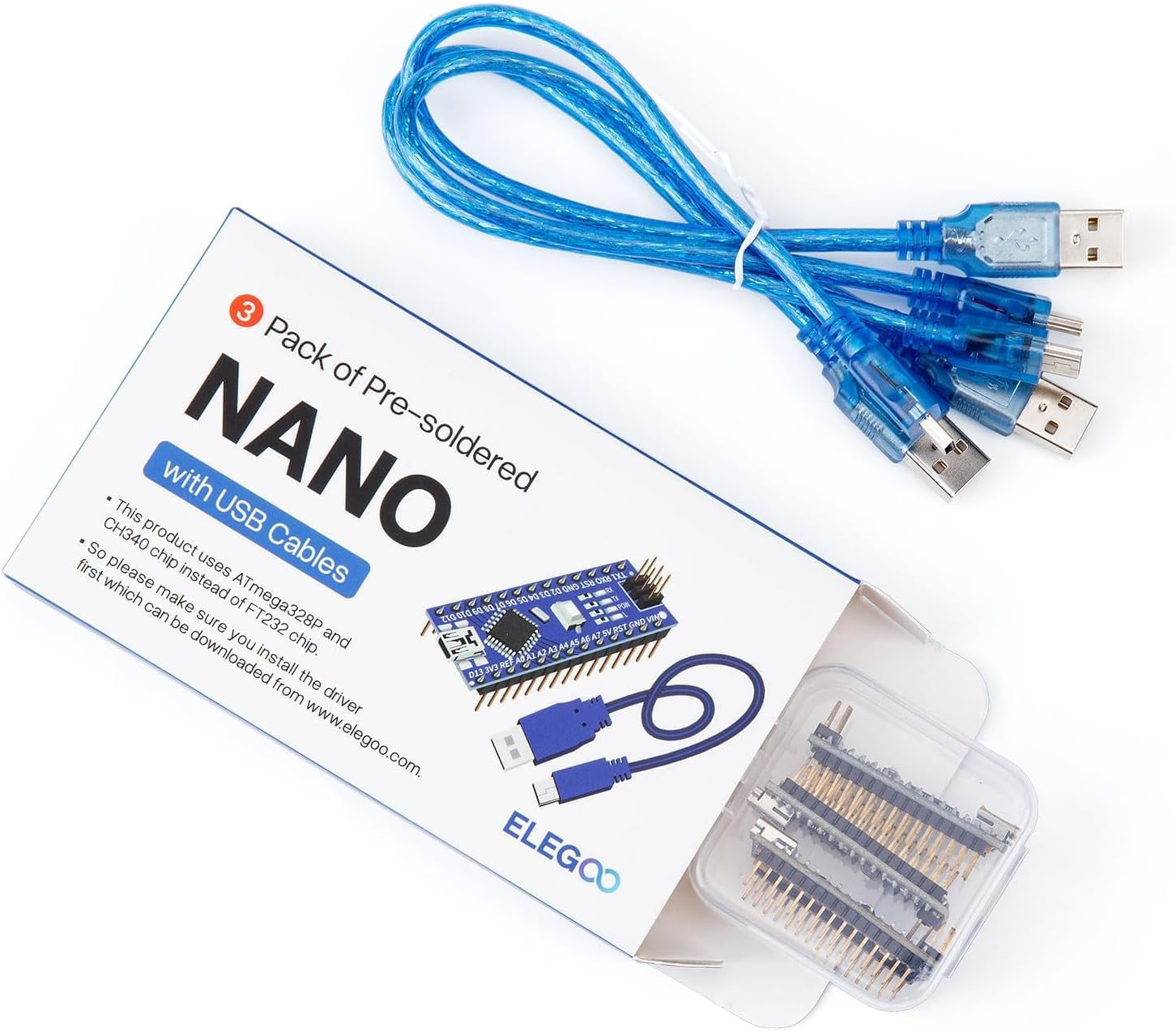

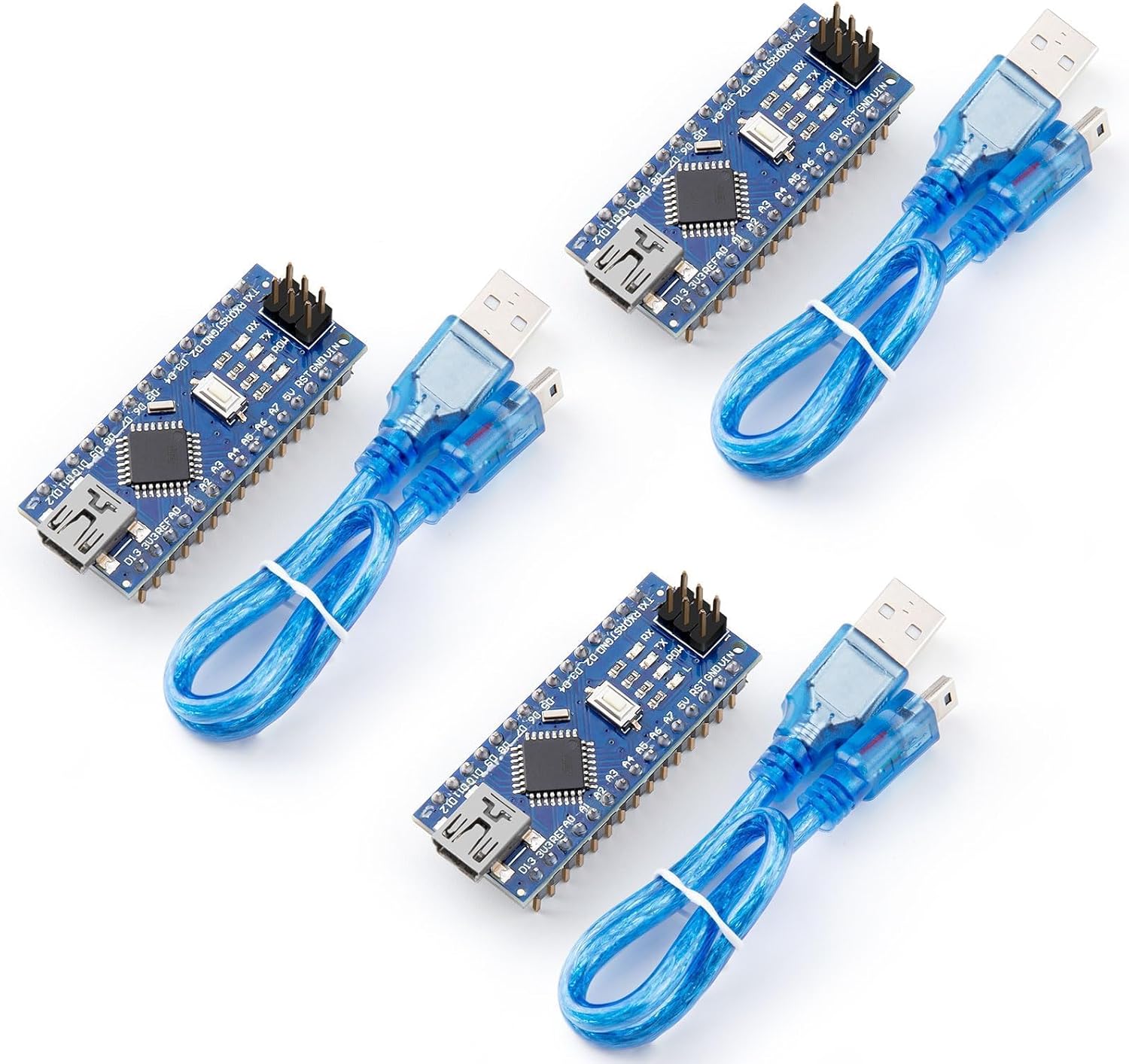

3 x Pre-soldered Nano Boards
3 x USB Cables
PCB Size: 18 x 45 mm Weight: 7 g
Technical specs: Microcontroller: ATmega328;Architecture: AVR Operating Voltage: 5 V; Flash Memory: 32 KB of which 2 KB used by bootloader SRAM: 2 KB; EEPROM: 1 KB Clock Speed: 16 MHz;Analog I/O Pins: 8 DC Current per I/O Pins: 40 mA (I/O Pins) Input Voltage: 7-12 V; Power Consumption: 19 mA PWM Output: 6; Digital I/O Pins: 22
Controller Board
UNO R3 NANO UNO R3 UNO R3 MEGA UNO R3
Compatibility with Arduino
✓
✓
✓
✓
✓
✓
Projects Tutorial Included
✓
✓
✓
✓
✓
✓
Assembly Requirement
No
✓
✓
No No No
Reasons to Buy
The Same ATmega328 with Arduino UNO R3 Board; the same ATmega16U2 with Arduino Stand up by itself, Obstacle-Avoidance, Auto-follow ELEGOO EleRobot APP; FPV Mode; Obstacle Avoidance; Line Tracking Mode Tutorial of 33 Projects, Complete Stater Kit with UNO R3 Tutorial of 33 Projects, Powerful Mega R3 Control Board Tutorial of 24 Projects, Cost-effetive Starter Kit
The pre-soldered Nano uses the chips ATmega+328P and CH340, not FT232, please install the driver first It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. Learn Arduino Nano with ease: Our ELEGOO Nano Board is the perfect choice for beginners and experts alike, with tutorials available to help you get started.
