GeeekPi Basic Starter Kit for BBC Micro:bit (V2 Included), Blocks and Python Code, Multiple Sensors Project Examples, Detailed Tutorial Included

Product description

Micro:bit Basic DIY Programming Learning Electric Kit

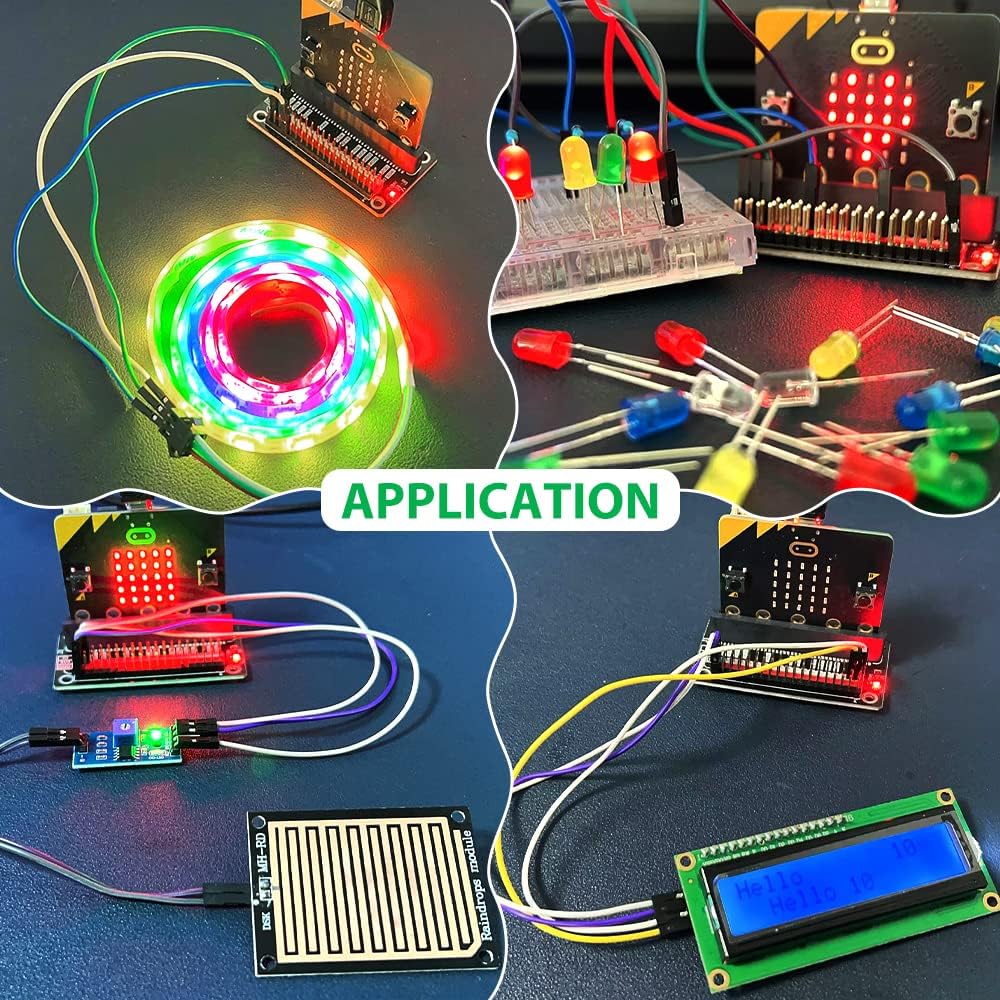

Project Examples

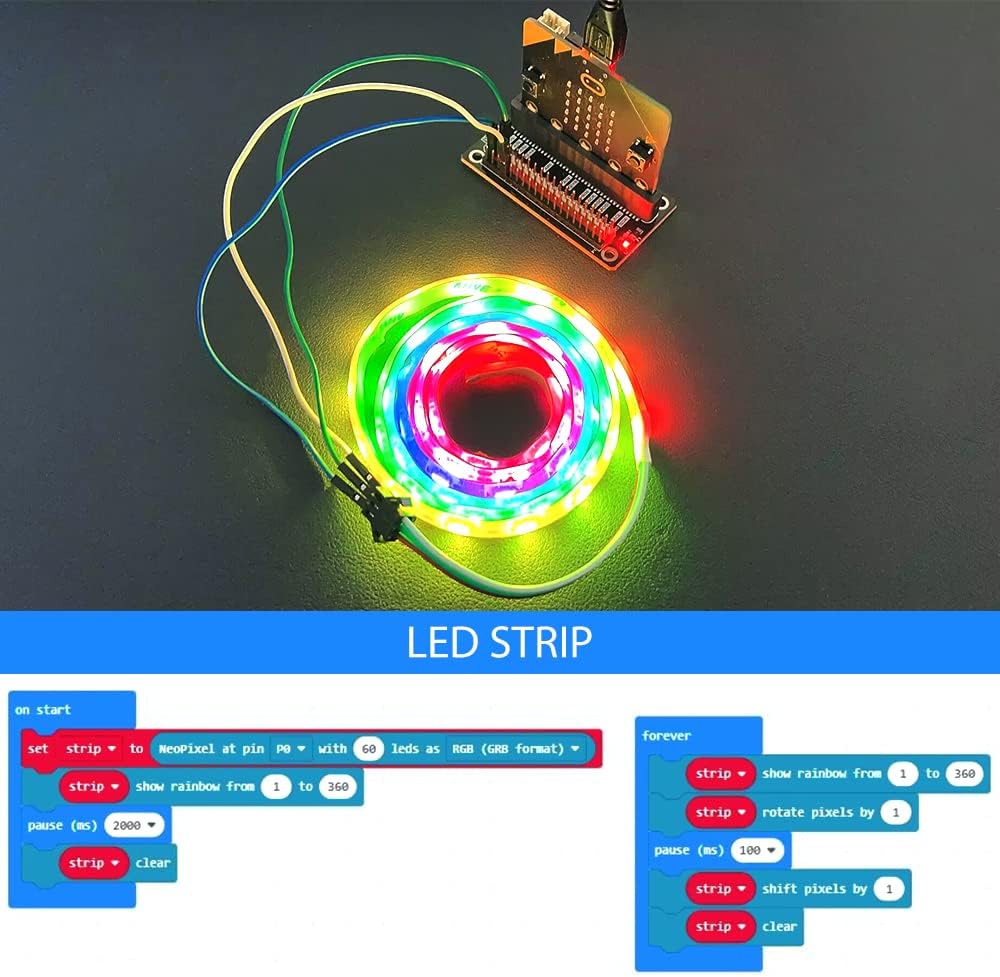

RGB LED light strip

RGB light strip is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components.

It internal include intelligent digital port data latch and signal reshaping amplif ication drive circuit.

Micro:bit Breadboard Adapter

This Microbit expansion board allows you to connect the Microbit expansion IOs to the breadboard,

which makes it very easy to create various creations.

Rain Module

When there is no water droplet on the sensor board, the DO output is high level, the switch indicator light is off.

Comparator output with clean signal, good waveform and more than 15mA strong driving ability. Output form: digital switching output (0 and 1) and analog AO voltage output.

LCD1602 display

LCD1602, or 1602 character-type liquid crystal display, is a kind of dot matrix module to show letters, numbers, and characters and so on. It's composed of 5x7 or 5x11 dot matrix positions; each position can display one character. There's a dot pitch between two characters and a space between lines, thus separating characters and lines. The model 1602 means it displays 2 lines of 16 characters.

4-digital display

This is a basic, 4-digit 7-segment display . It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 3.4VDC and a max forward current of 20mA.

Ultrasonic sensor

An ultrasonic sensor is an electronic device that measures the distance of a target object by emitting ultrasonic sound waves, and converts the reflected sound into an electrical signal. Ultrasonic waves travel faster than the speed of audible sound (i.e. the sound that humans can hear). Ultrasonic sensors have two main components: the transmitter (which emits the sound using piezoelectric crystals) and the receiver (which encounters the sound after it has travelled to and from the target).

OLED 0.96 inch display

OLED 0.96 inch is a monochrome graphic display module with a built-in 0.96 inch, 128X64 high-resolution display. OLED 0.96inch is able to work despite the absence of backlight. In a dark environment, contrast of OLED display is higher than LCD display. This device is I2C or SPI compatible.

Servo

A servo (servomechanism) is an electromagnetic device that converts electricity into precise controlled motion by use of negative feedback mechanisms. Servos can be used to generate linear or circular motion, depending on their type.

Potentiometer

The potentiometer is an instrument used for measuring the unknown voltage by comparing it with the known voltage. It can be used to determine the emf and internal resistance of the given cell and also used to compare the emf of different cells.

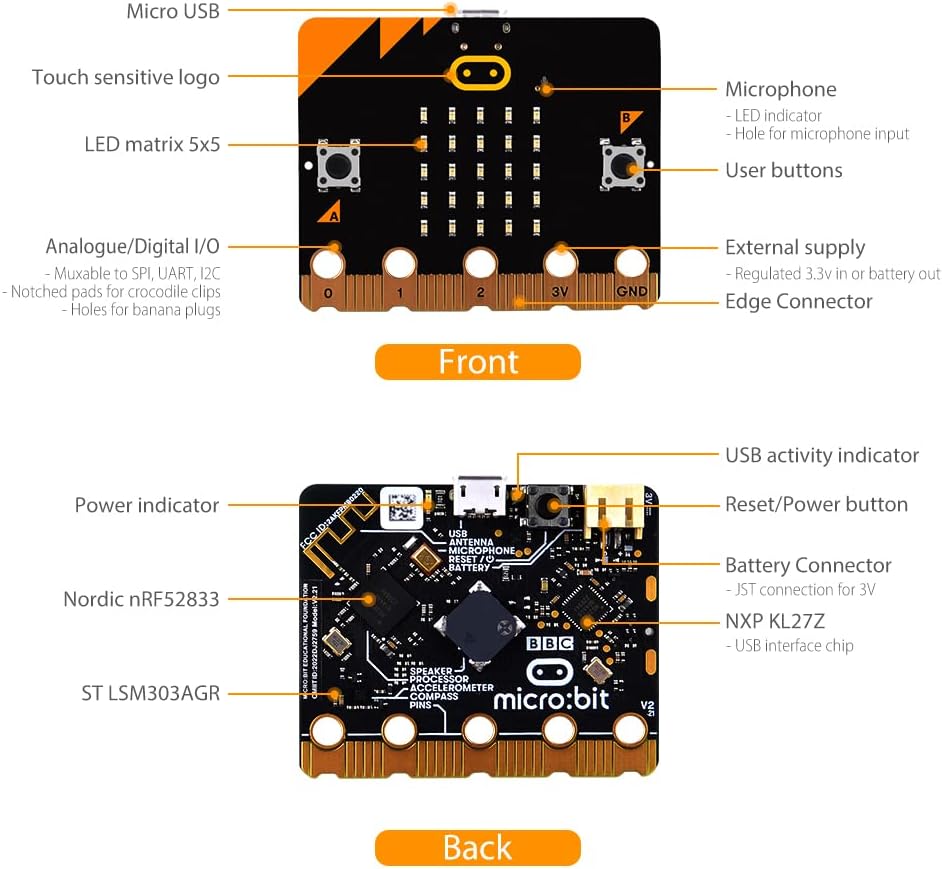

What is micro:bit?

The BBC micro:bit is a pocket-sized computer that introduces you to how software and hardware work together. It has an LED light display, buttons, sensors and many input/output features that, when programmed, let it interact with you and your world.

This is an entry-level micro:bit kit with multiple sensors and an exquisite manual. Using the block of makecode can quickly implement the corresponding demo. It is very suitable for building an experimental environment with children to inspire their inspiration.

Features Comes with detailed tutorial Including 18pcs common items make you do a lot of interesting projects

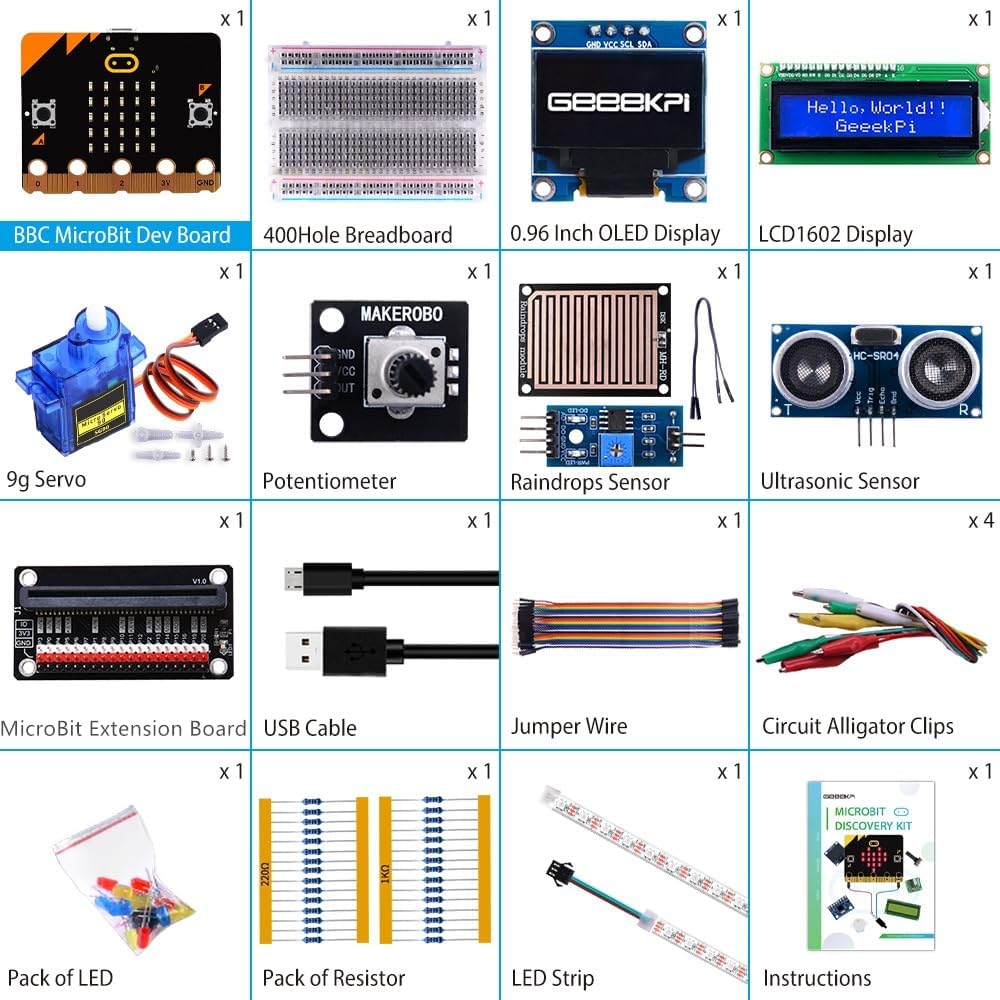

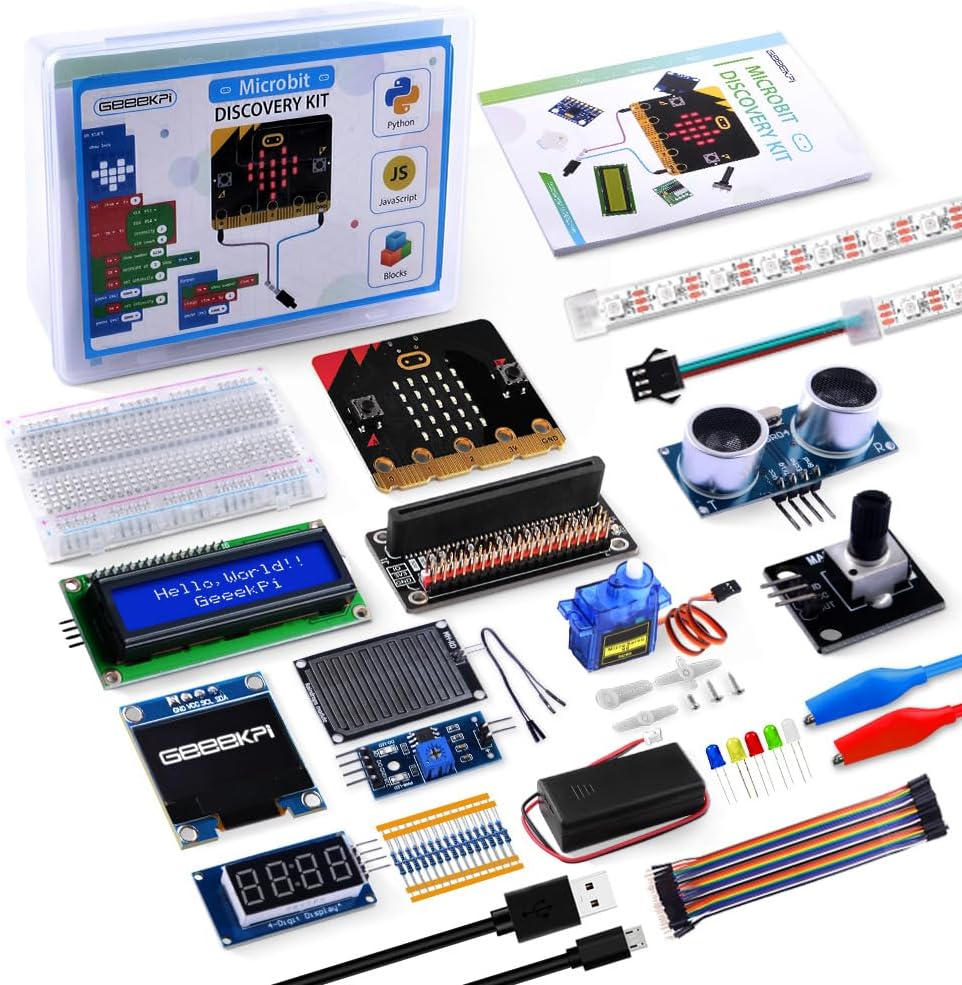

Package Includes

BBC Micro:bit V2 Board Included --- It's upgraded with a powerful new processor housing tons more capability and also adds a new speaker and microphone! More powerful processor, more RAM, and Flash so MicroPython works better；MEMS microphone; Speaker to play audio tones; Capacitive touch sensor; Power saving mode.

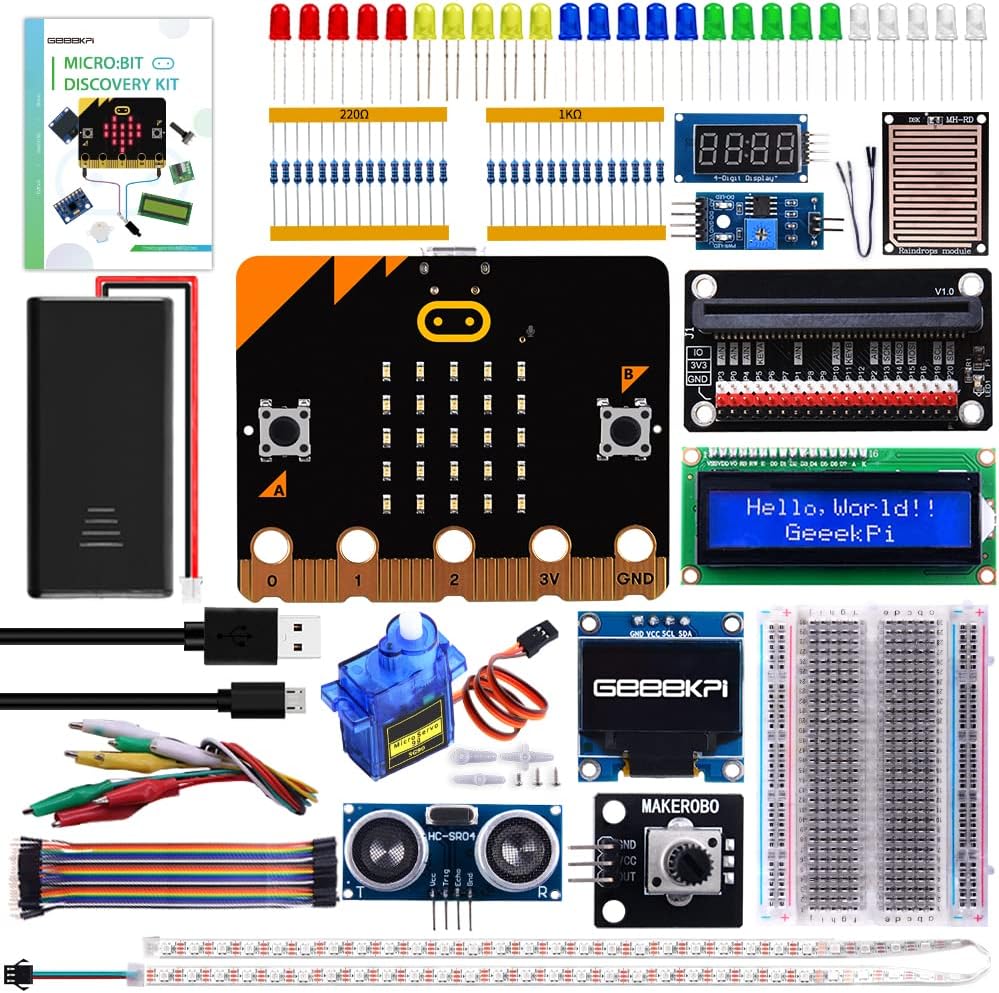

12 Common Products --- It includes 1602 lcd display, breadboard, servo, ultrasonic sensor, potentiometer and so on. It contains the products used in the tutorial.

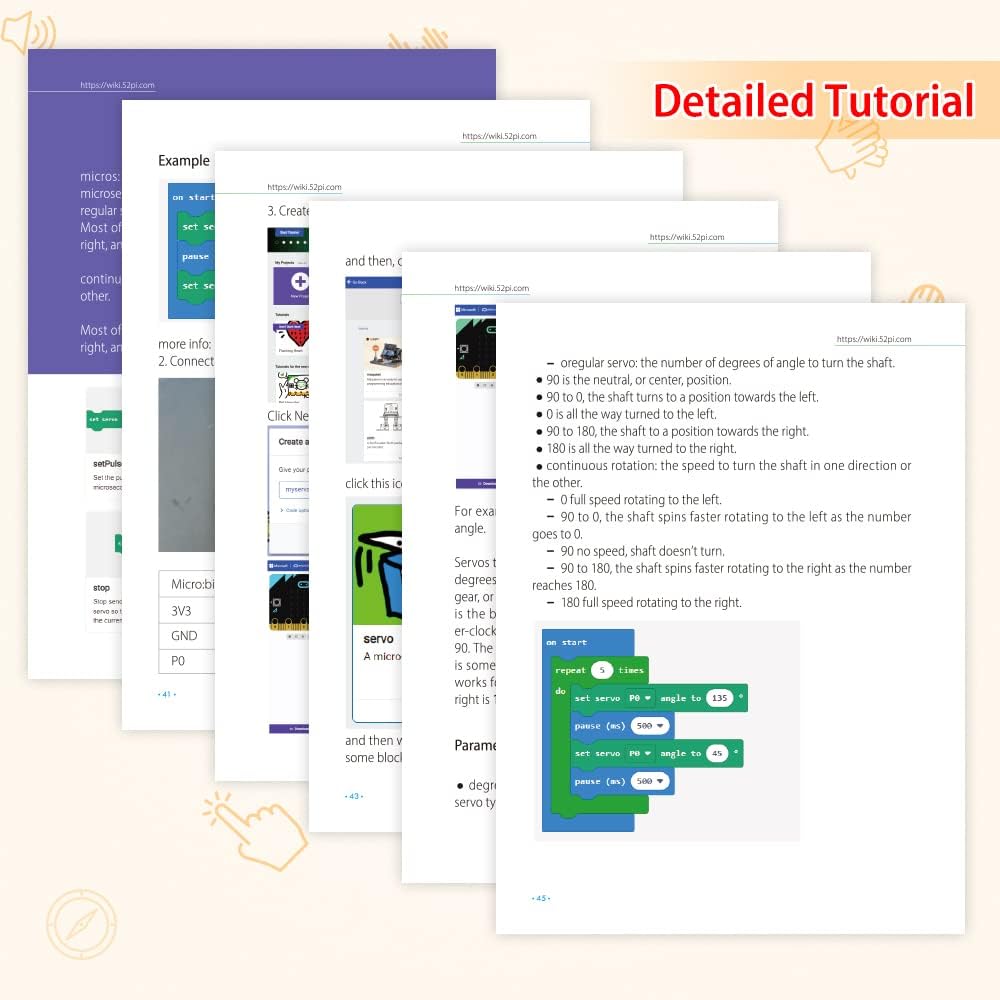

With Detailed Tutorial --- There are 9 detailed demos which are useful for beginners.

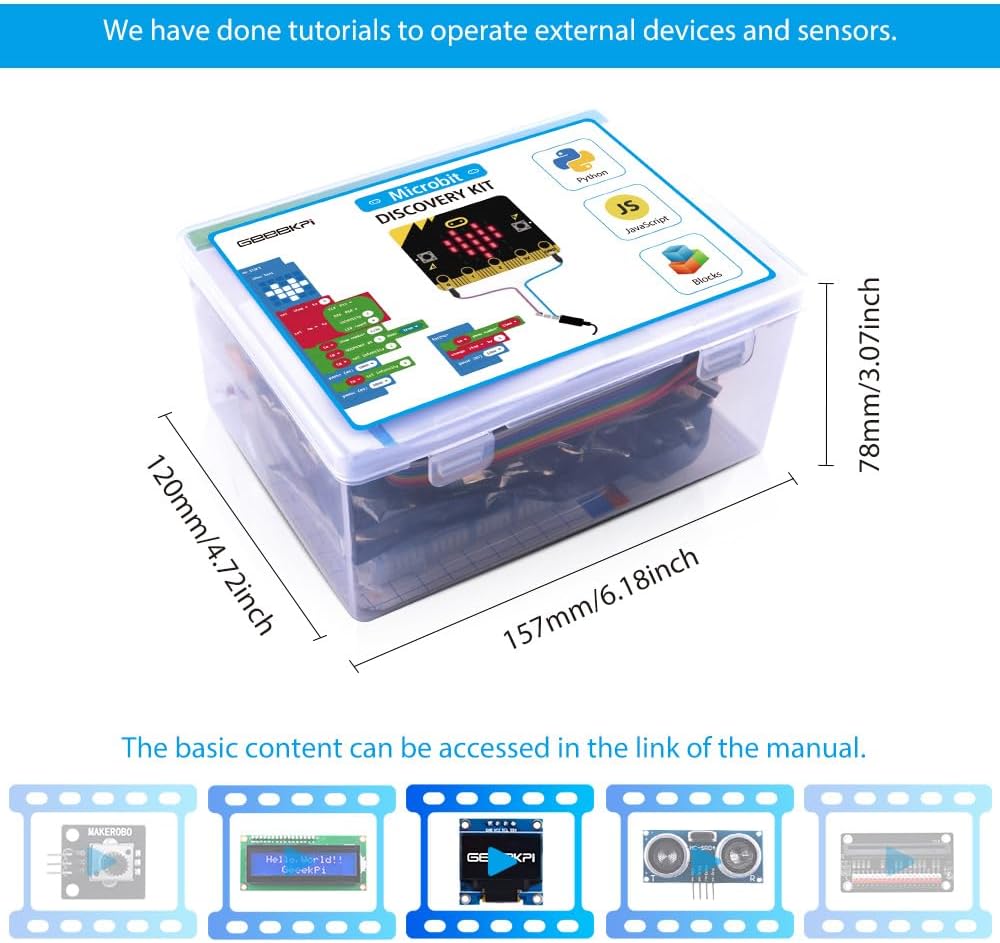

This kit helps you learn and use it with its tutorial and project examples.
We provide free technical support to help you with any questions and problems.
