Nano V3.0 with Cable ATmega328P Chip

Description:

Nano V3.0 Atmega328P Microcontroller with CH340 USB to TTL is the perfect tool for Arduino enthusiasts.Featuring an improved Atmega328P chip, this development board offers enhanced processing power and stable performance for all your Arduino projects.The integrated CH340 USB to TTL converter ensures reliable and fast communication with your computer, making it easy to program and upload sketches.The package includes a high-quality USB cable for convenient setup.

Specifications：

Microcontroller: ATmega328P

USB to Serial Chip: CH340

Operating Voltage: 5V

Input Voltage (recommended): 7-12V

Input Voltage (limit): 6-20V

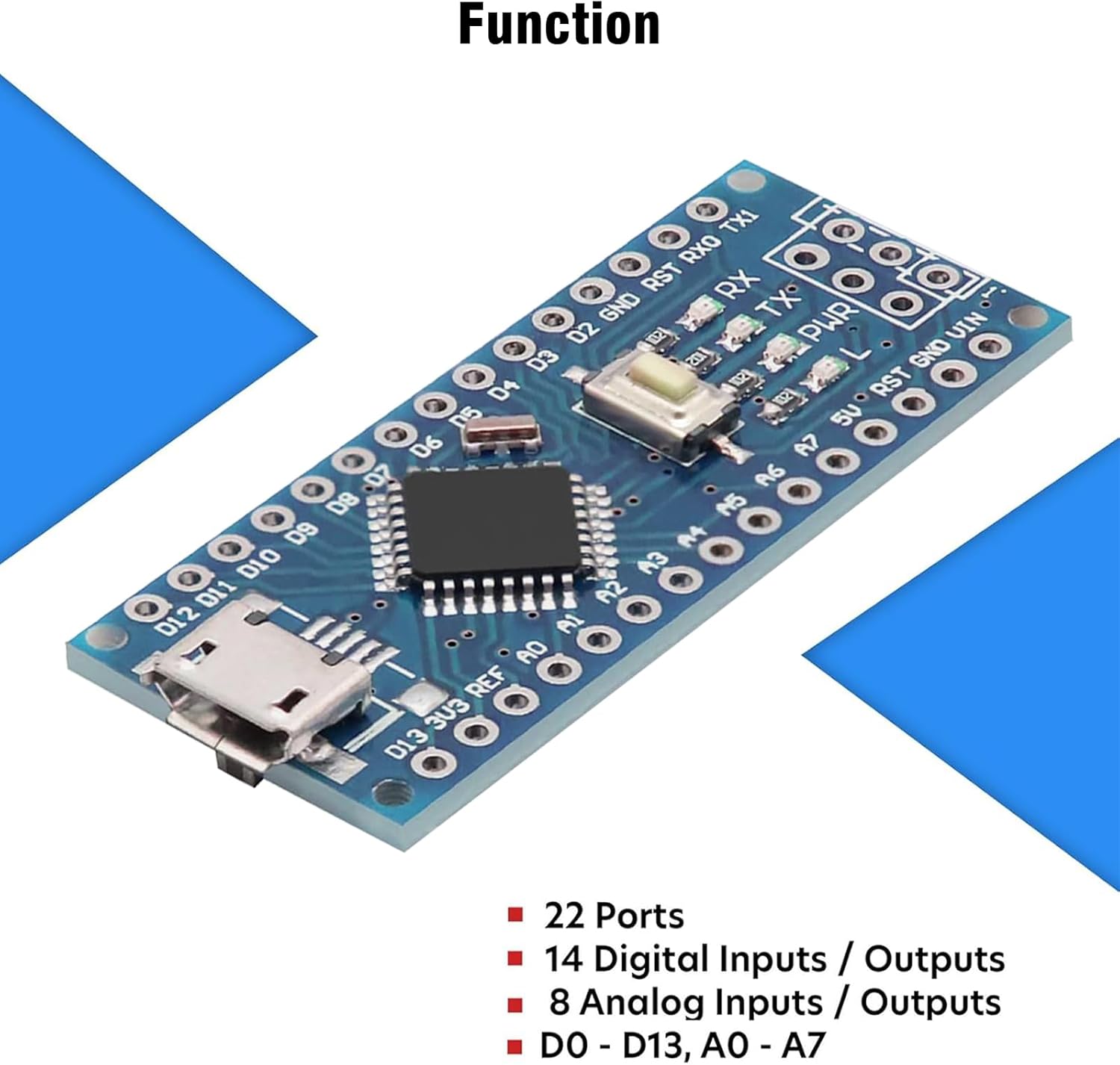

Digital I/O Pins: 14 (of which 6 provide PWM output)

Analog Input Pins: 8

DC Current per I/O Pin: 40 mA

Flash Memory: 32 KB (ATmega328P) of which 2 KB used by bootloader

SRAM: 2 KB (ATmega328)

EEPROM: 1 KB (ATmega328)

Clock Speed: 16 MHz

USB Connector: Micro USB

USB Cable: Included in the package

Dimensions: 43 mm x 18 mm

Weight: Approximately 7g

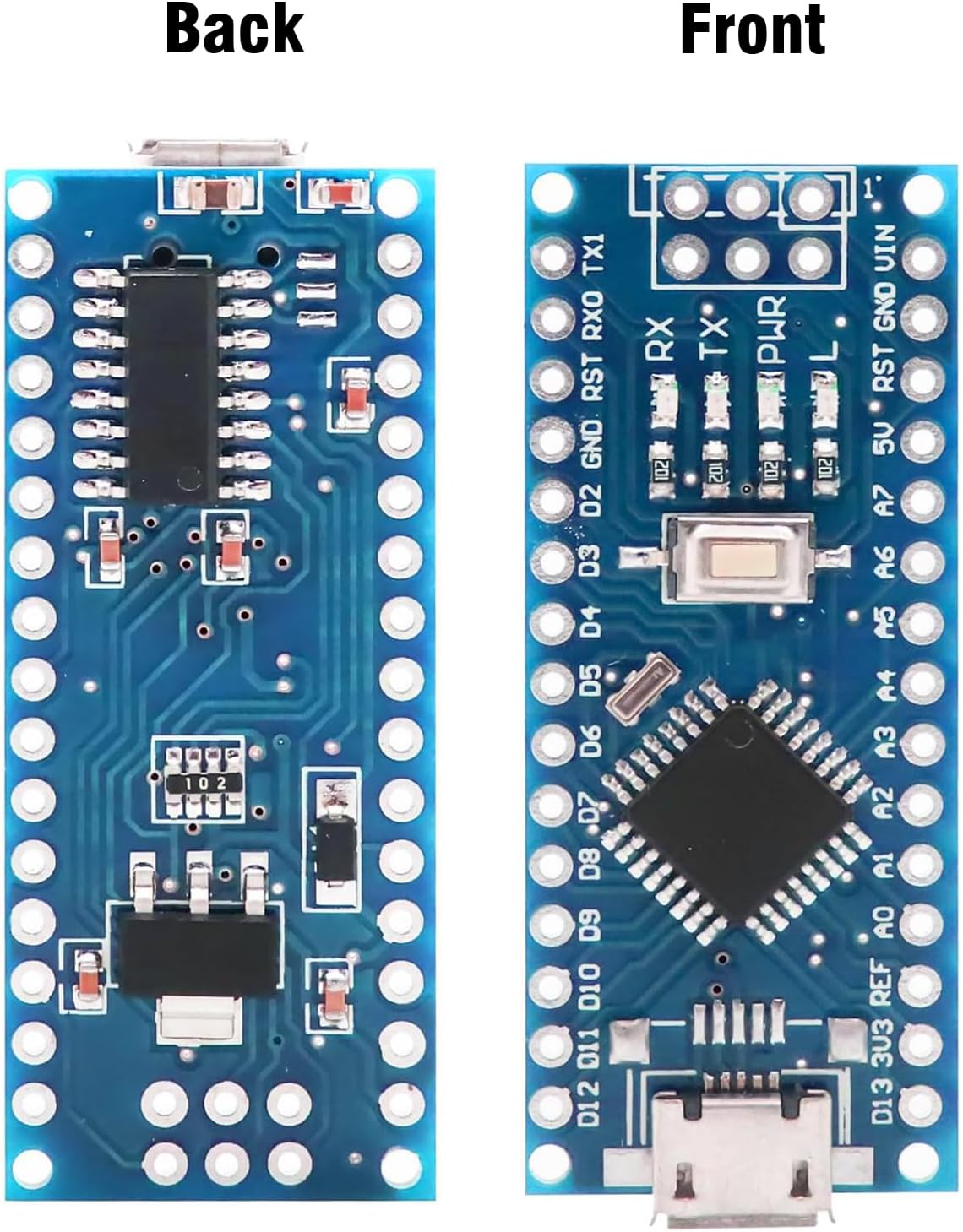

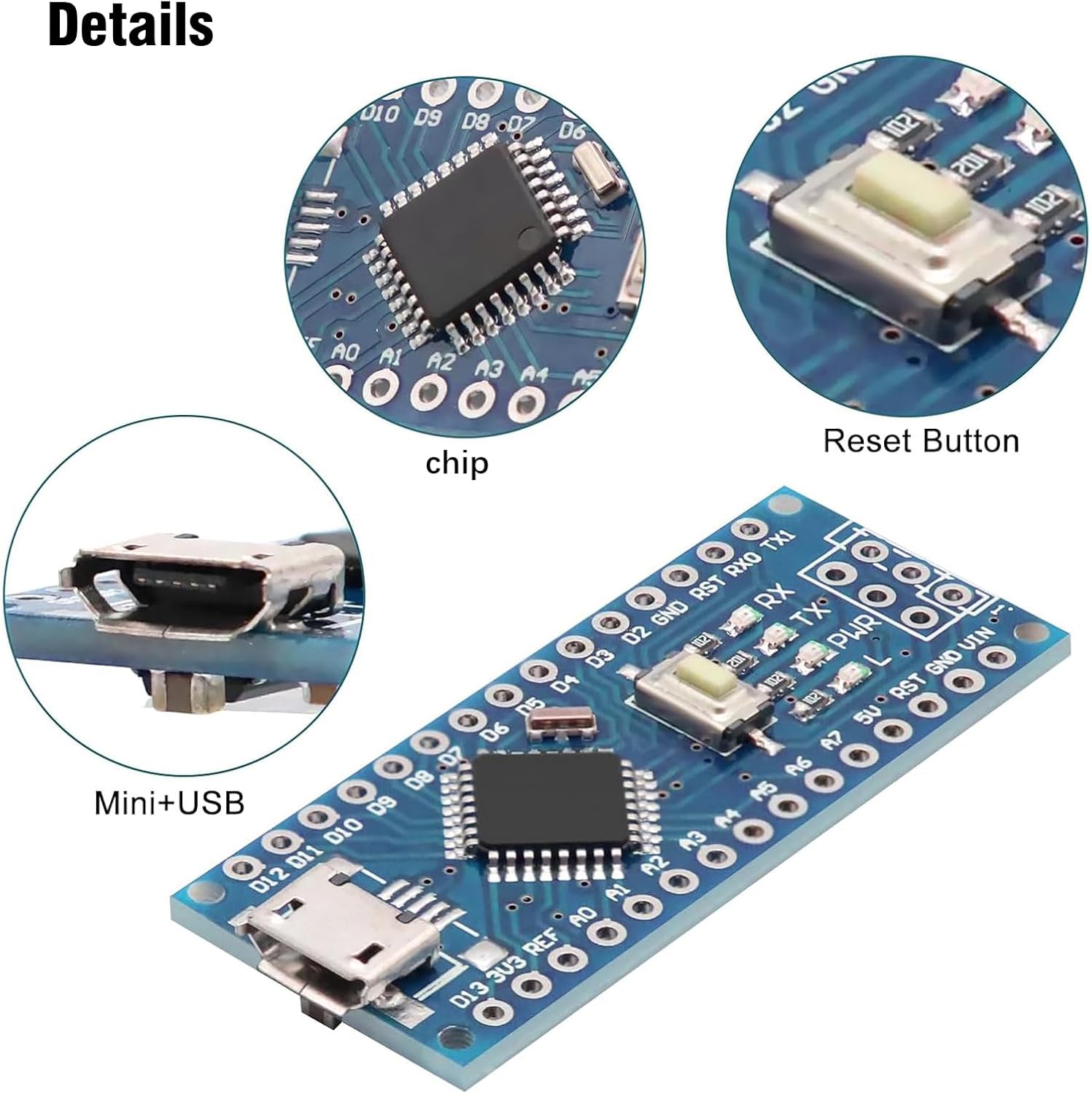

Nano V3 Details

Micro Interface

ATmega328P Chip

Reset Button

Usage:

Download USB chip driverPlug in the NANO development board, the driver will be automatically installedIn the die inside the selection of the board NANOSelect COM port, this can be queried in my computer, just your uno development board inside the portGood first choice, comes with the routine program, burned into the

Product Packaging：

1 X Nano V3.0 Board with Cable

The Nano is using the chips ATmega+328P and CH340, not FT232 as official Arduino. It works just like the original Nano board and is very cost-effective for beginners.
Uses atmega328p-AU as MCU, support ISP download; Support USB download and power supply. Compatible with Arduino Nano, fully compatible with Windows, Mac and Linux operating systems.
The Nano board can be powered via a Micro USB connection; 6-12 V unregulated external power supply or 5 V regulated external power supply. The Nano automatically detects and switches to the power source with higher potential, no power selection jumper is required.

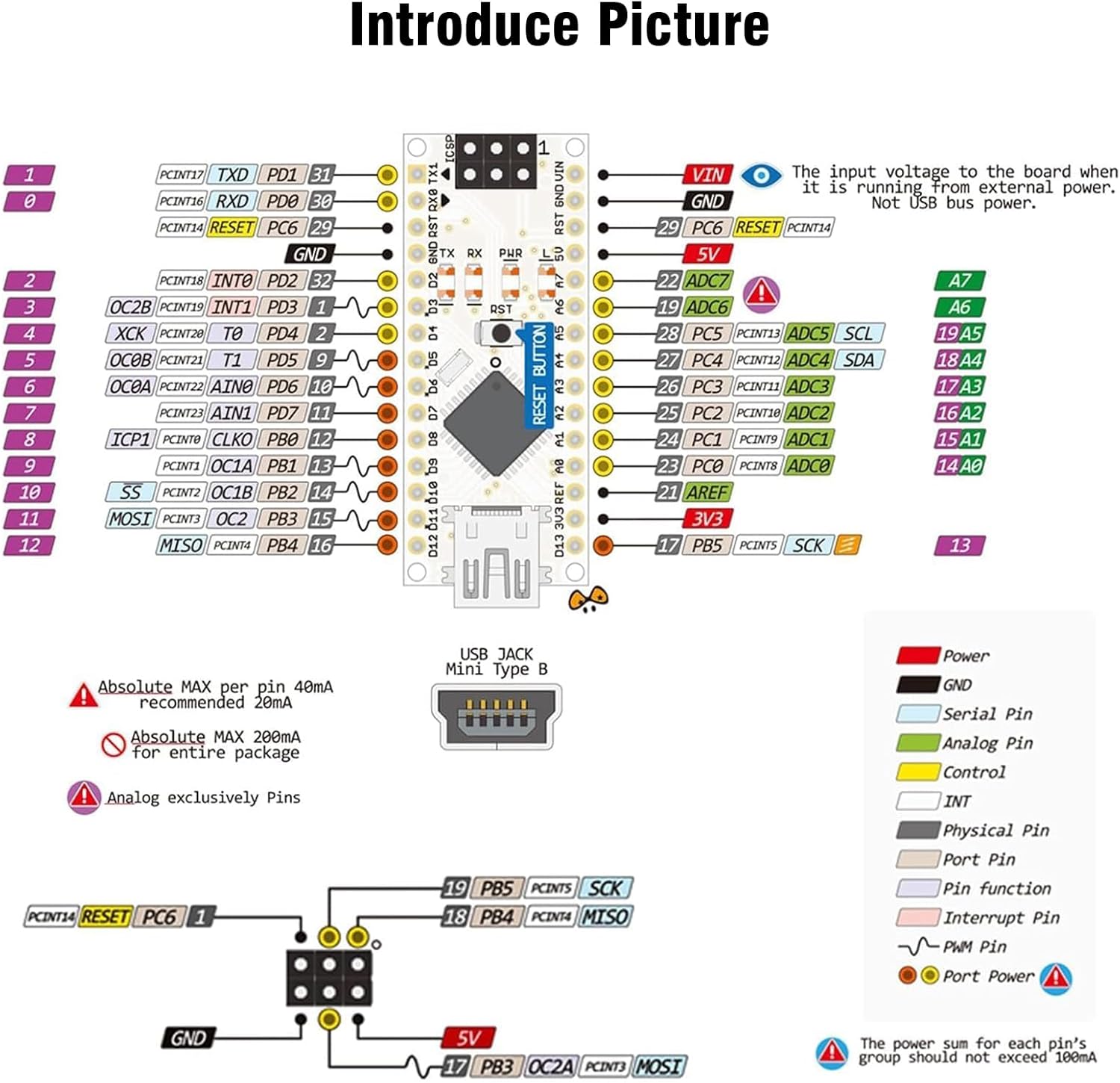

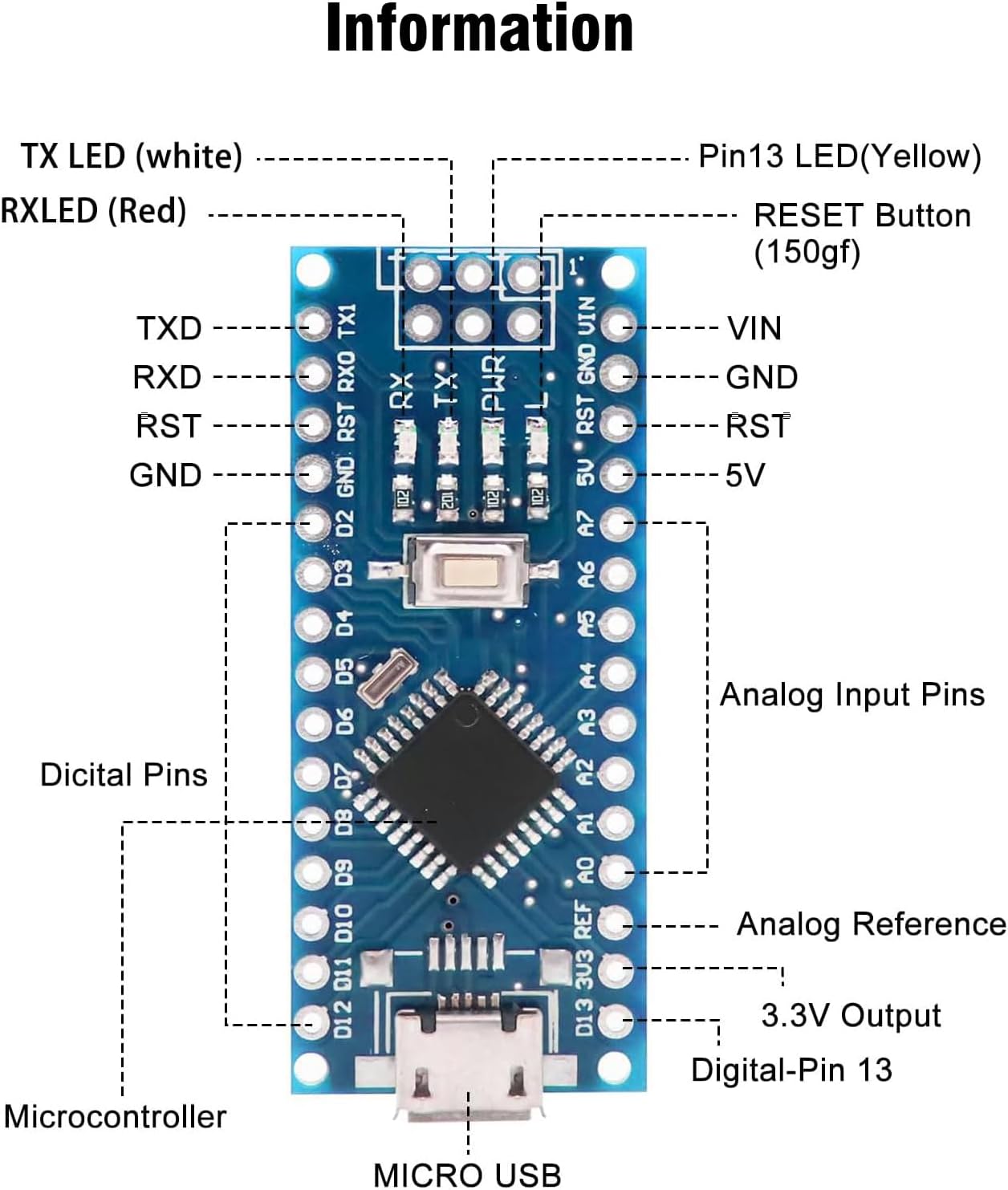

The Nano board has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a Micro USB power socket, an ICSP port and a reset button.
The Nano board has numerous possibilities for communication with a PC or other microcontrollers and is fully compatible with the operating systems Windows, Mac and Linux. This board is particularly breadboard friendly and the connections are very easy to handle.
