OpenMV Motor Shield TB6612, SingTown, 2 Channel DC Motor or 1Channel Step Servo Module, Apply to OpenMV Cam H7 Plus, OpenMV Cam H7, OpenMV Cam M7, OpenMV Cam H7 R2

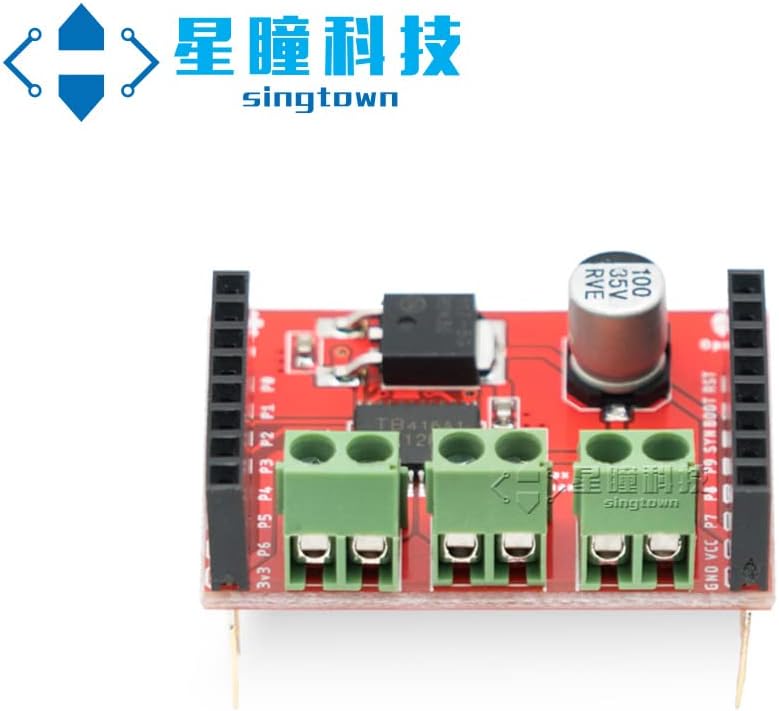

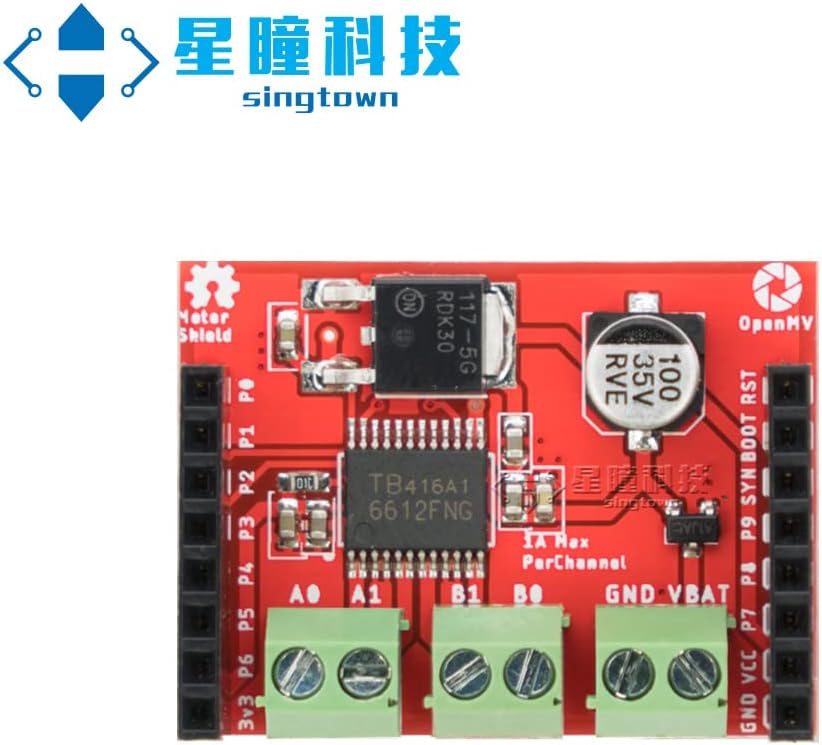

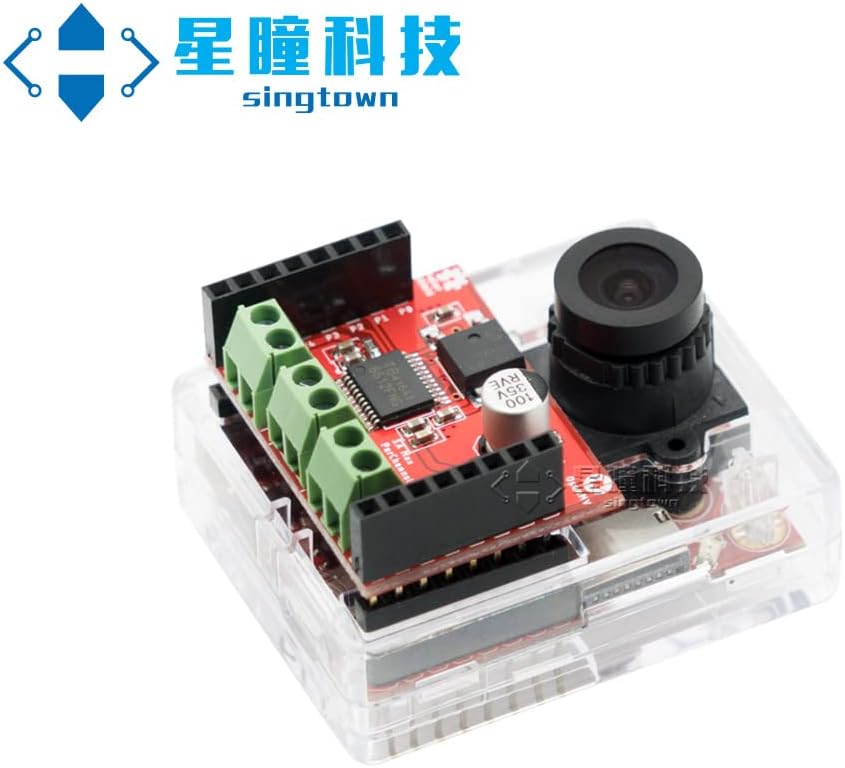

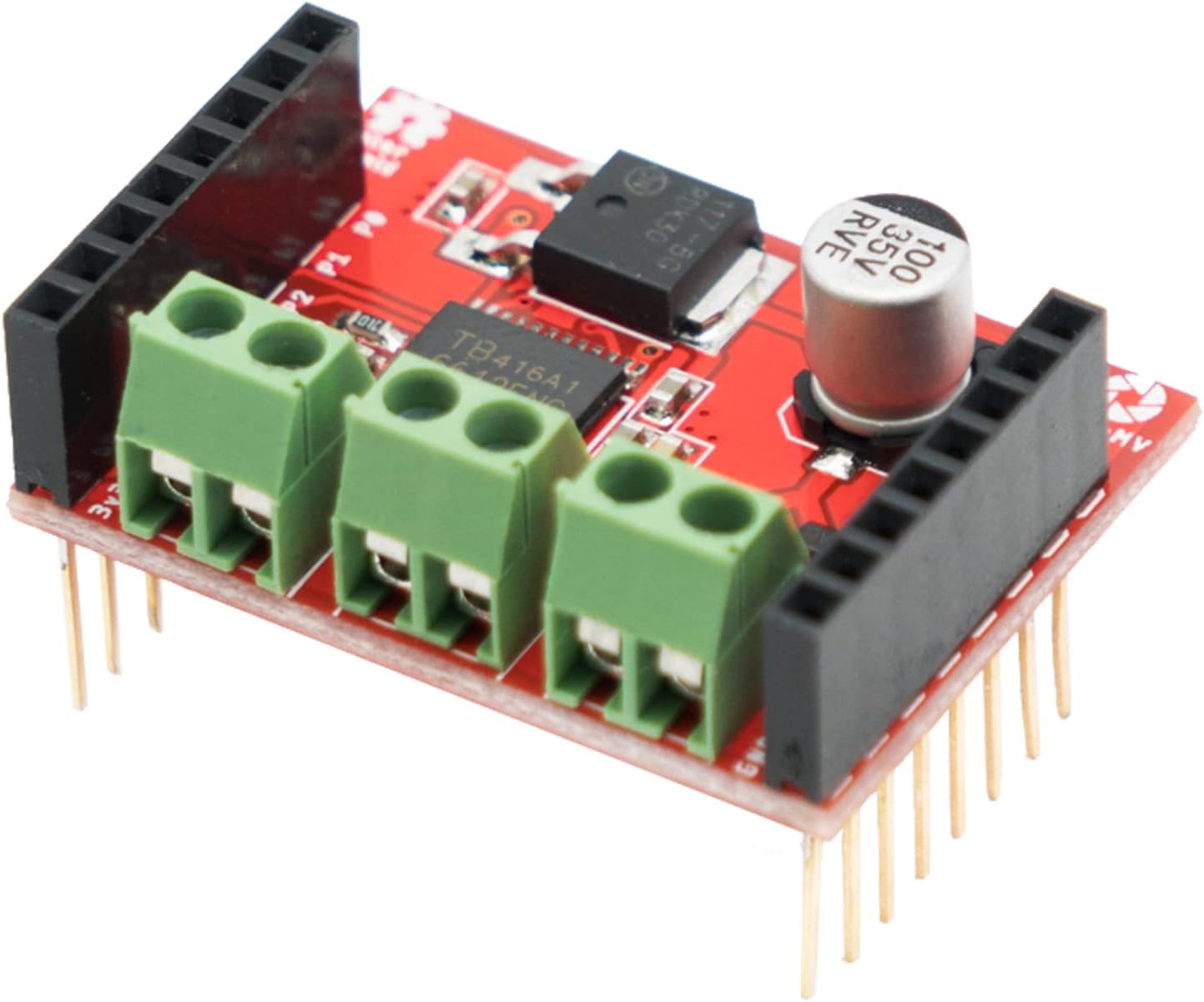

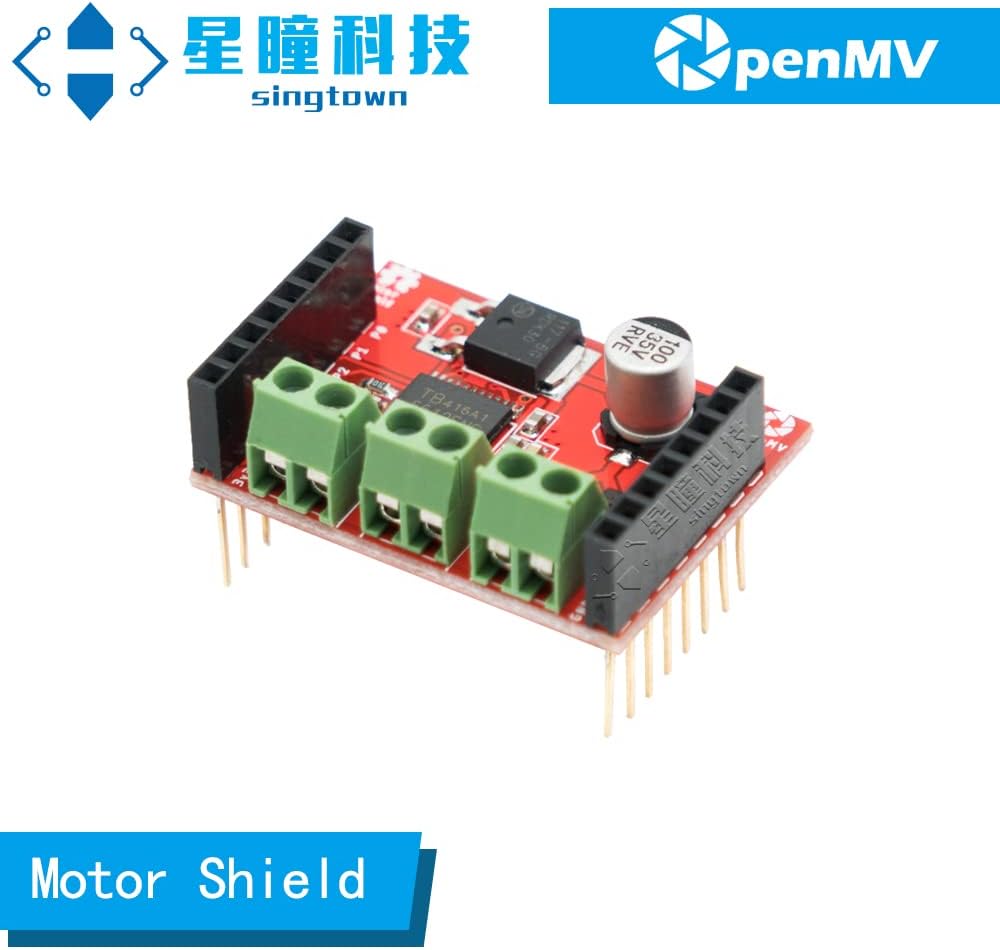

The motor shields provides a convenient way of powering your OpenMV Cam and controlling low-power motors in one package. It features a 5V linear regulator to power your OpenMV Cam from a battery along with a motor driver chip to power two less than 2A low-power motors from the same battery.

The motor driver chip has 2 pins per motor to set its internal H-Bridge direction for each motor and an additional pin per motor for PWM control. So, once you set your driving direction you just have to control the PWM per motor.

Q: Can I use the motor shield with the servo shield at the same time? A: Yes, absolutely. They both use different pins.

Q: Can I use the motor shield with the pan and tilt shield at the same time? A: No, this doesn't work.

Applications

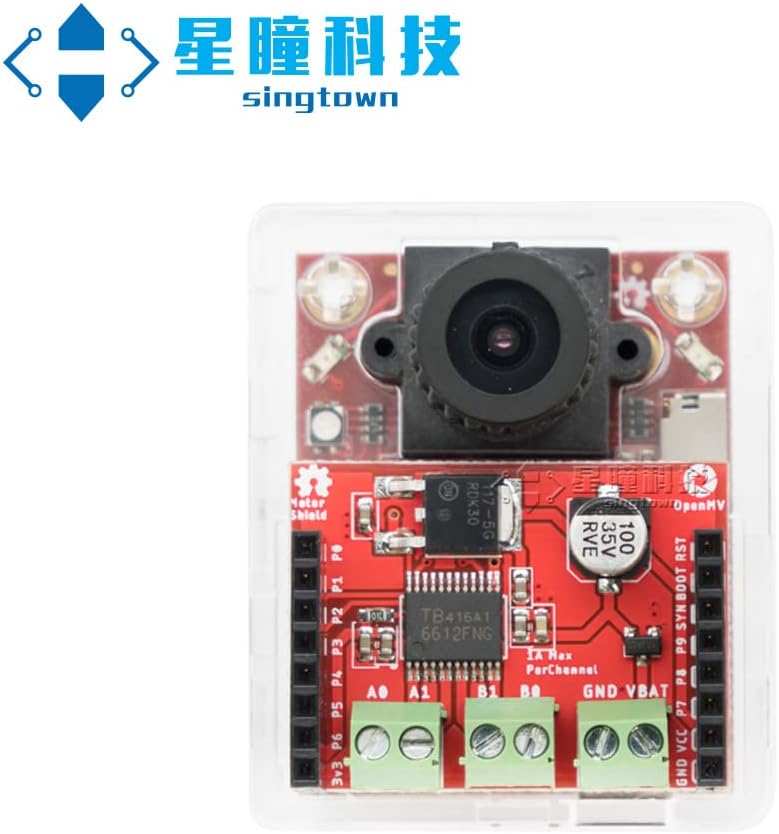

The motor driver shield is all you need to make an OpenMV Cam robot that can drive around. Any robot chassis you can buy on online will do!

You can also use the motor driver shield to control solenoids or any electromechanical circuit that draws less than 2A. The motor driver chip has 4 push-pull outputs.

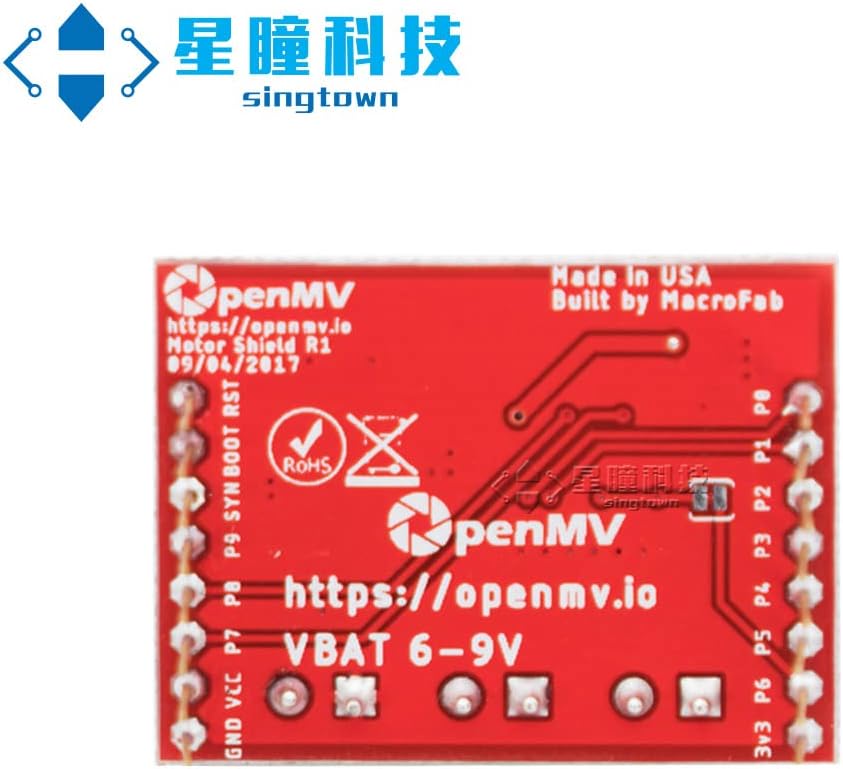

Pinout

Temperature Range

Storage: 0°C to 85°C

Operating: -40°C to 85°C

Specifications

Weight 10g Length 27mm Width 36mm Height 20mm Country of Origin China HS Code 8473301000

Dual Motor Control: Features 2 independent channels with up to 2A current per channel for driving low-power motors or solenoids.
Integrated Power Supply: Built-in 5V regulator powers your OpenMV Cam and motors from a single battery.
Compact Design: Dimensions of 27x36x20 mm and weighs only 10g, perfect for small robotic projects.
Versatile Applications: Ideal for creating mobile robots or powering other electromechanical circuits below 2A.
Temperature Resilience: Operates from -40°C to 85°C, ensuring reliability in diverse conditions.
