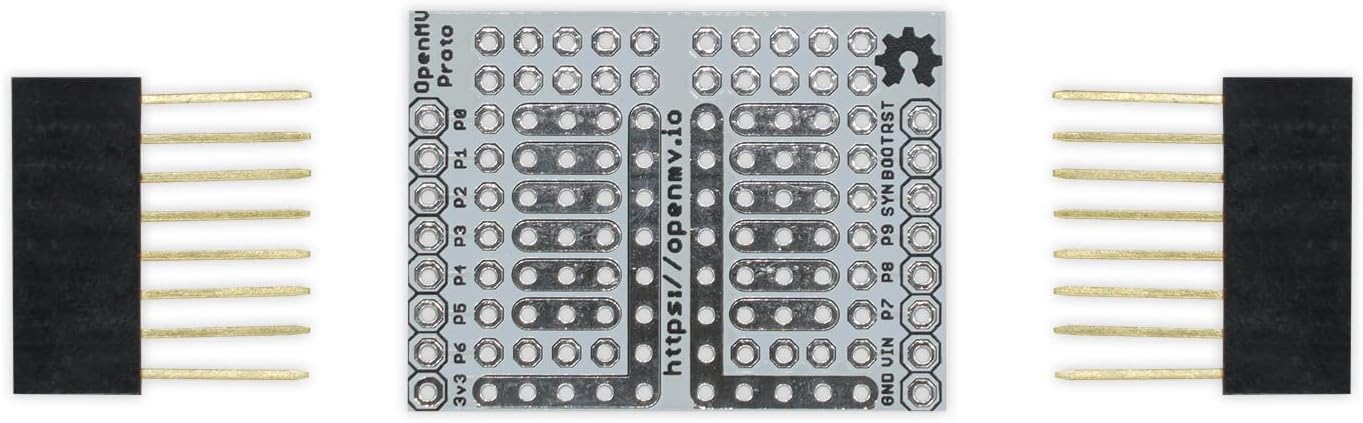

The Proto Shield gives you the ability to easily extend your OpenMV Cam's functionality. It features a 10x10 through-hole prototyping area with a 3.3V rail and a GND rail that are connected to your OpenMV Cam's 3.3V rail and GND rail. The rest of the I/O pins are left unconnected to let you build what you want.

Applications

Need to add an accelerometer board to your OpenMV Cam? Or any other sensor board? You can easily solder these onto the Proto Shield so you can use them with your OpenMV Cam on-the-go. Or, do you need more illumination? Then build a more powerful LED circuit on a Proto Shield for your OpenMV Cam. With the Proto Shield you can extend your OpenMV Cam's functionality how you want.

Pinout

Specifications

Horizontal Holes 10 Vertical Holes 10 Weight 5g Length 27mm Width 35mm Height 20mm

Shipping Information Country of Origin China HS Code

8473301000

Temperature Range Storage

Not Rated

Operating

Not Rated

Customizable Prototyping: Features a 10x10 prototyping area with 3.3V and GND rails for easy circuit design and sensor integration.
Extend Functionality: Add custom sensors, accelerometers, or build powerful LED circuits to enhance your OpenMV Cam's capabilities.
Compact and Lightweight: Measures 27x35x20 mm and weighs just 5g, making it portable and versatile.
Robust Performance: Operates in extreme temperatures from -40°C to 125°C for reliable use in various environments.
DIY-Friendly: Offers a simple way to customize and expand your OpenMV Cam for advanced applications.
