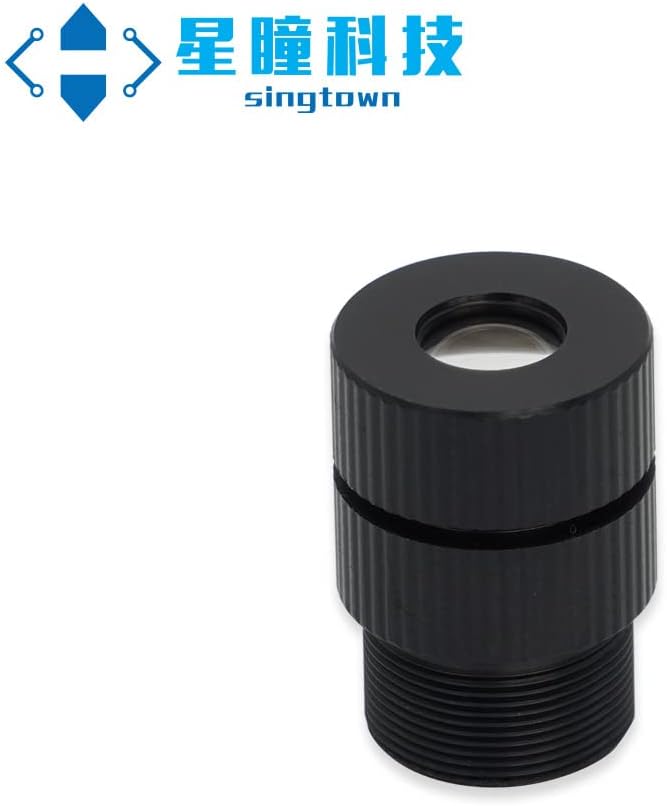

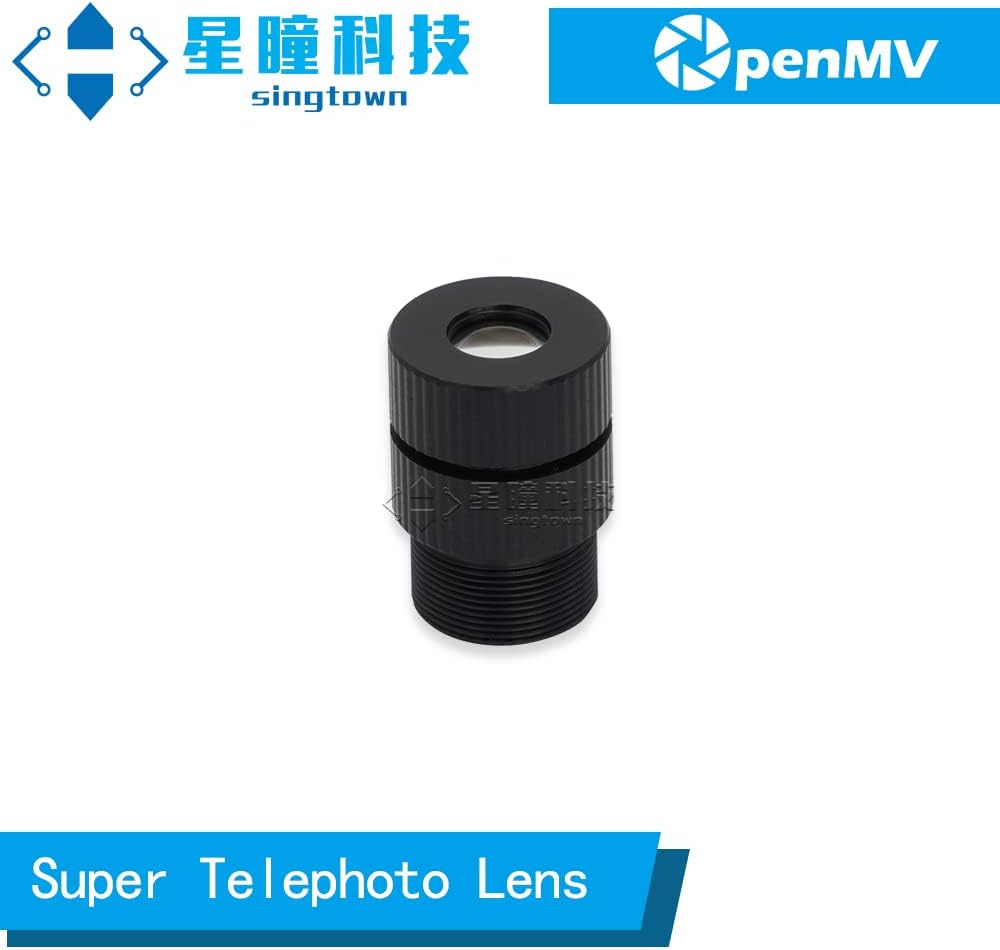

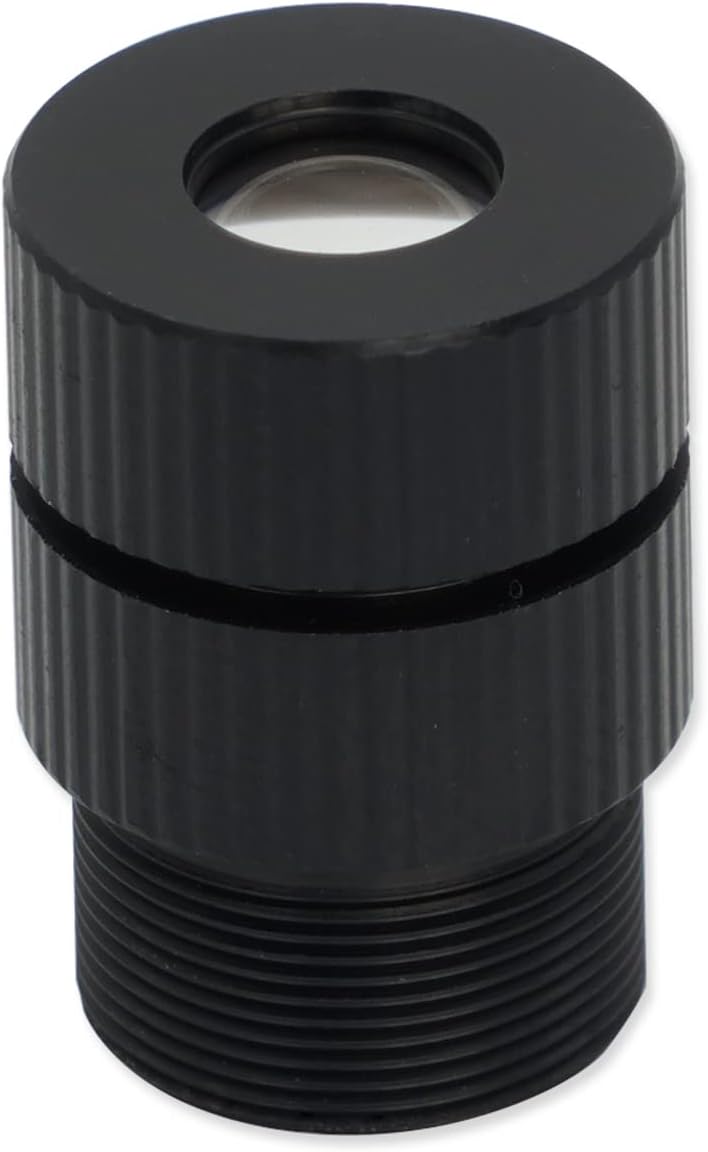

OpenMV Super Telephoto Lens M12 25mm, SingTown, See Further, Apply to OpenMV Cam H7 Plus, OpenMV Cam H7, OpenMV Cam M7, OpenMV Cam H7 R2

This lens gives your OpenMV Cam the ability to see longer distances (e.g. zoom in). The standard lens that ships with your OpenMV Cam has about a 70° field-of-view (FOV) which allows your OpenMV Cam to see more things, but, with less detail. This lens has about a 10° FOV so it provides your OpenMV Cam with about a 8X zoom on any particular object.

Applications

The Super Telephoto Lens is great for any application where you need your OpenMV Cam to really zoom in on some subject. For example, the super telephoto lens makes it easy to do eye-tracking with IR light by zooming in on someone's eye making it easier to determine the direction their pupil is pointing.

Comparison

Ultra Wide Angle Lens

Focal Length: 1.7mm

FOV:

H = 99.0°, VFOV = 81.9°

Standard Lens

Focal Length: 2.8mm

FOV:

H = 70.8°, V = 55.6°

Telephoto Lens

Focal Length: 12mm

FOV:

H = 18.8°, VFOV = 14.0°

Super Telephoto Lens

Focal Length: 25mm

FOV:

H = 9.1°, V = 6.8°

Specifications

Focal Length 25mm Aperture F2.0 Format 1/3" Mount M12*0.5 FOV H = 9.1°, V = 6.8° IR Cut Filter 650nm (removable) Weight 5g Length 14mm Width 14mm Height 20mm

Shipping Information Country of Origin China HS Code

8473301000

Temperature Range Storage

Not Rated

Operating

Not Rated

Extreme Zoom: Reduces FOV to 15° for an impressive 8x zoom, enabling OpenMV Cam to focus on distant subjects with high detail.
Enhanced Applications: Ideal for precise tasks like eye-tracking using no IR light or observing distant objects.
Premium Optics: Features a 25mm focal length, F2.0 aperture, and IR-cut filter for flexible performance.
Compact Design: Weighing only 5g and measuring 14x14x20 mm, it’s easy to integrate into setups.
Versatile Use: Operates within -20°C to 80°C, making it suitable for diverse environments and tasks.
