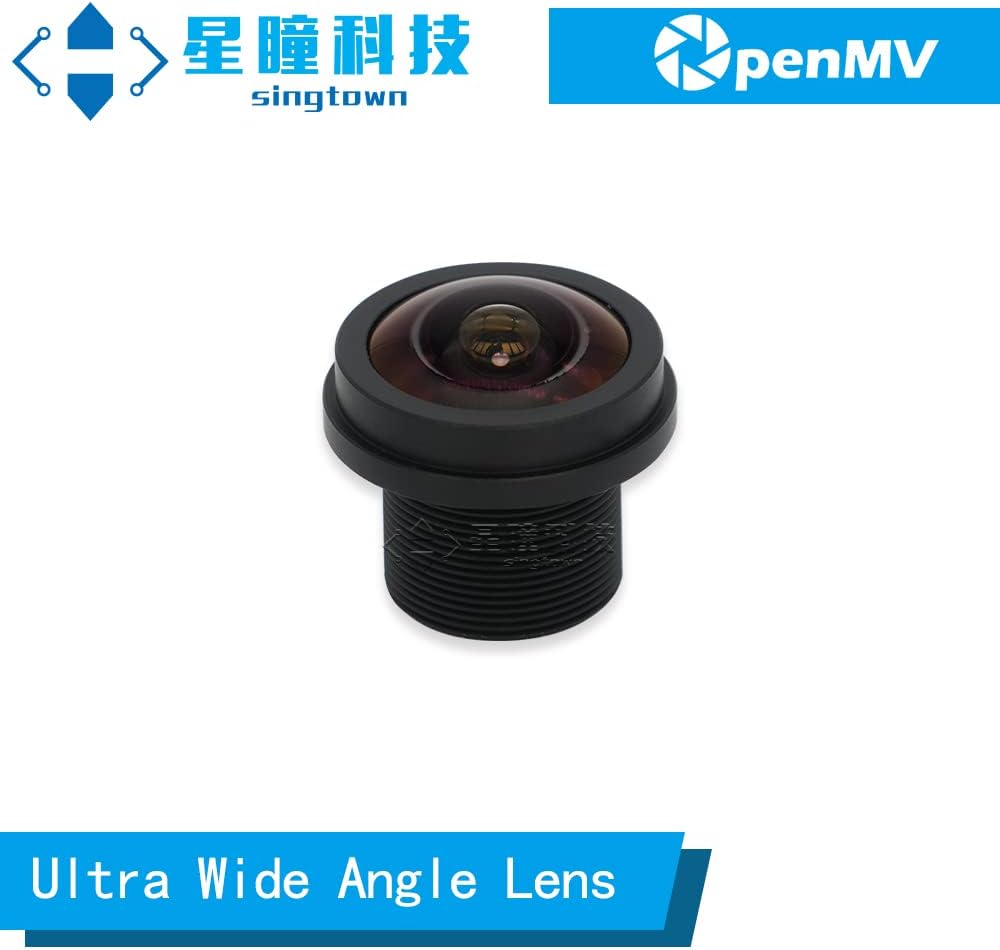

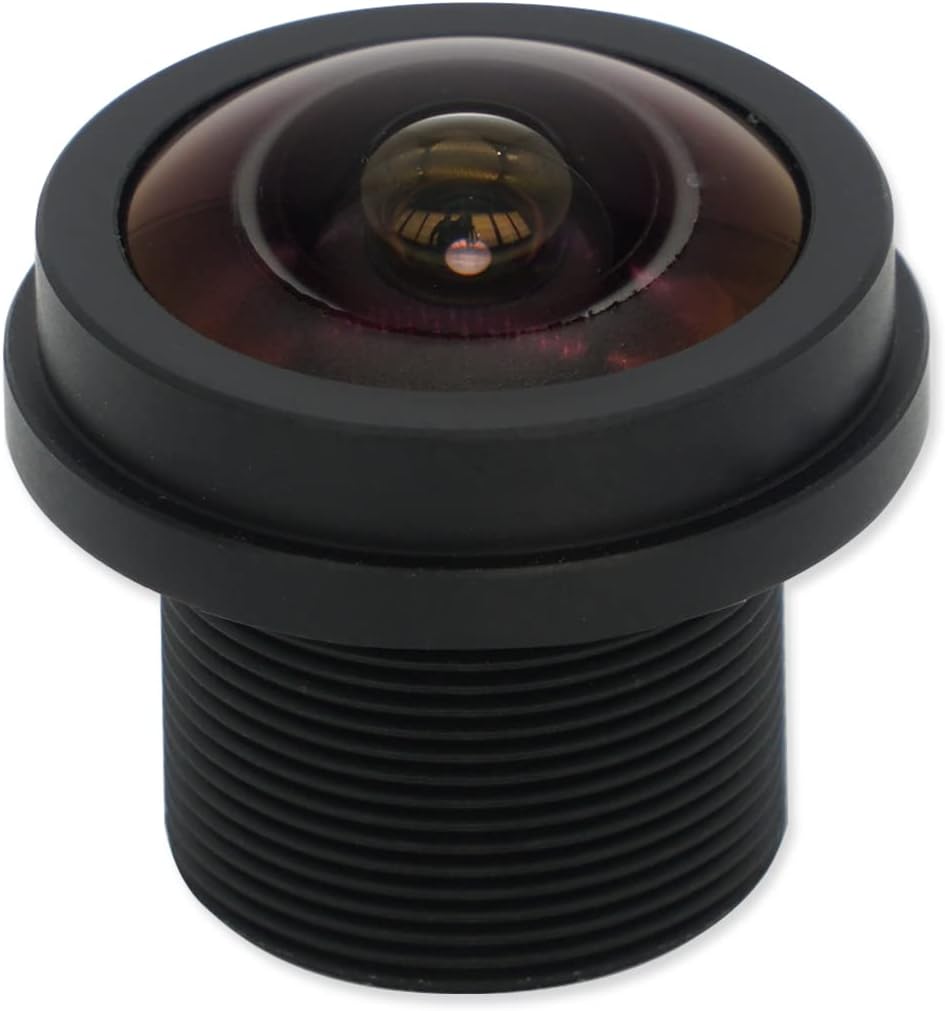

OpenMV Ultra Wide Angle Lens 1.8mm 140° M12, SingTown, Apply to OpenMV Cam H7 Plus, OpenMV Cam H7, OpenMV Cam M7, OpenMV Cam H7 R2

Price: $15.00
(as of Nov 25, 2025 17:32:56 UTC - Details)

Product description

This lens gives your OpenMV Cam the ability to see a wider field-of-view (FOV). The standard lens that ships with your OpenMV Cam has about a 70° FOV which is good, but, not great for security applications. This lens has about a 100° FOV so your OpenMV Cam can much more around itself.

Applications

The Ultra Wide Angle Lens is great for security applications where you want to see a wide field-of-view. For example, by using the Ultra Wide Angle Lens your OpenMV Cam can easily detect motion in an entire room using frame differencing without having to be mounted far away.

Comparison

Ultra Wide Angle Lens

Focal Length: 1.7mm

FOV:

H = 99.0°, VFOV = 81.9°

Standard Lens

Focal Length: 2.8mm

FOV:

H = 70.8°, V = 55.6°

Telephoto Lens

Focal Length: 12mm

FOV:

H = 18.8°, VFOV = 14.0°

Super Telephoto Lens

Focal Length: 25mm

FOV:

H = 9.1°, V = 6.8°

Specifications

Focal Length 1.7mm Aperture F2.0 Format 1/2.5" Mount M12*0.5 FOV H = 99.0°, VFOV = 81.9° IR Cut Filter 650nm (removable) Weight 7g Length 20mm Width 20mm Height 19mm

Shipping Information Country of Origin China HS Code

8473301000

Temperature Range Storage

Not Rated

Operating

Not Rated

Enhanced Field of View: Expand OpenMV Cam's FOV to 145° for broader scene coverage, ideal for security.
High-Quality Optics: Features a 1.7mm focal length, F2.0 aperture, and removable 650nm IR-cut filter for versatile use.
Perfect for Motion Detection: Detect activity in entire rooms without needing a distant setup, using frame differencing.
Durable and Compact: Weighs only 7g with dimensions of 20x20x19 mm, suitable for various installations.
Standard M12 Mount: Compatible with 1/2.5" format cameras, making it easy to upgrade your OpenMV Cam.
