RIGOL Digital Oscilloscope DHO924S 250MHz Frequency Band + 12-bit Vertical Resolution + Maximum 1.25 GSa/s Sample Rate + 4 Analog Channels + 1CH Built-in Signal Generator

Price: $764.00
(as of Nov 16, 2025 04:41:24 UTC - Details)

Product description

DHO900 SERIES | COMPACT SIZE, VARIOUS INTERFACES

The DHO900 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Key Features

Supports Bode Plot Analysis

The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.

Standard Digital Channels:

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.

Sleek Design

The DHO900 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

Support Type-C Power

Designed with a Type-C power interface, the DHO900 can be powered by just a portable power source, enabling on-site testing.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 18

4.5 out of 5 stars 26

3.7 out of 5 stars 17

4.6 out of 5 stars 88

Price

$560.00$560.00 $653.65$653.65 $653.65$653.65 $764.00$764.00

Analog Channels
4 4 4 4

Vertical Resolution
12 Bit 12 Bit 12 Bit 12 Bit

Bandwidth
125 MHz 125 MHz 250 MHz 250 MHz

Real-time Sample Rate
1.25 GSa/s 1.25 GSa/s 1.25 GSa/s 1.25 GSa/s

Max Memory Depth
50 Mpts 50 Mpts 50 Mpts 50 Mpts

Waveform Capture Rate
1,000,000 wfms/s 1,000,000 wfms/s 1,000,000 wfms/s 1,000,000 wfms/s

Price
$599 $699 $699 $799

DHO900S model comes with a signal generator and Bode plot capability
no data

✓
no data

✓

Product Dimensions ‏ : ‎ 10.45 x 3.05 x 6.37 inches; 3.92 Pounds
Item model number ‏ : ‎ DHO924S
Date First Available ‏ : ‎ September 1, 2023
Manufacturer ‏ : ‎ RIGOL
ASIN ‏ : ‎ B0CGHTLRHS
Best Sellers Rank: #71,426 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #34 in Lab Oscilloscopes
Customer Reviews: 4.6 4.6 out of 5 stars 88 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when('A', 'ready').execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( 'acrLink-click-metrics', 'click', { "allowLinkDefault": true }, function (event) { if (window.ue) { ue.count("acrLinkClickCount", (ue.count("acrLinkClickCount") || 0) + 1); } } ); } }); P.when('A', 'cf').execute(function(A) { A.declarative('acrStarsLink-click-metrics', 'click', { "allowLinkDefault" : true }, function(event){ if(window.ue) { ue.count("acrStarsLinkWithPopoverClickCount", (ue.count("acrStarsLinkWithPopoverClickCount") || 0) + 1); } }); });
Ultra-low background noise makes the signal more pure, and can capture small signals without missing. Provides 12-bit hardware high resolution for all series. Up to 250 MHz analog bandwidth and 4 analog channels. Equipped with 16 digital channels (optional), real-time sampling rates up to 1.25 GSa/s Storage depth up to 50 Mpts Vertical sensitivity range of 200 μV/div to 10 V/div Ultra Aqua mode provides up to 1 million wfms/s waveform capture rate

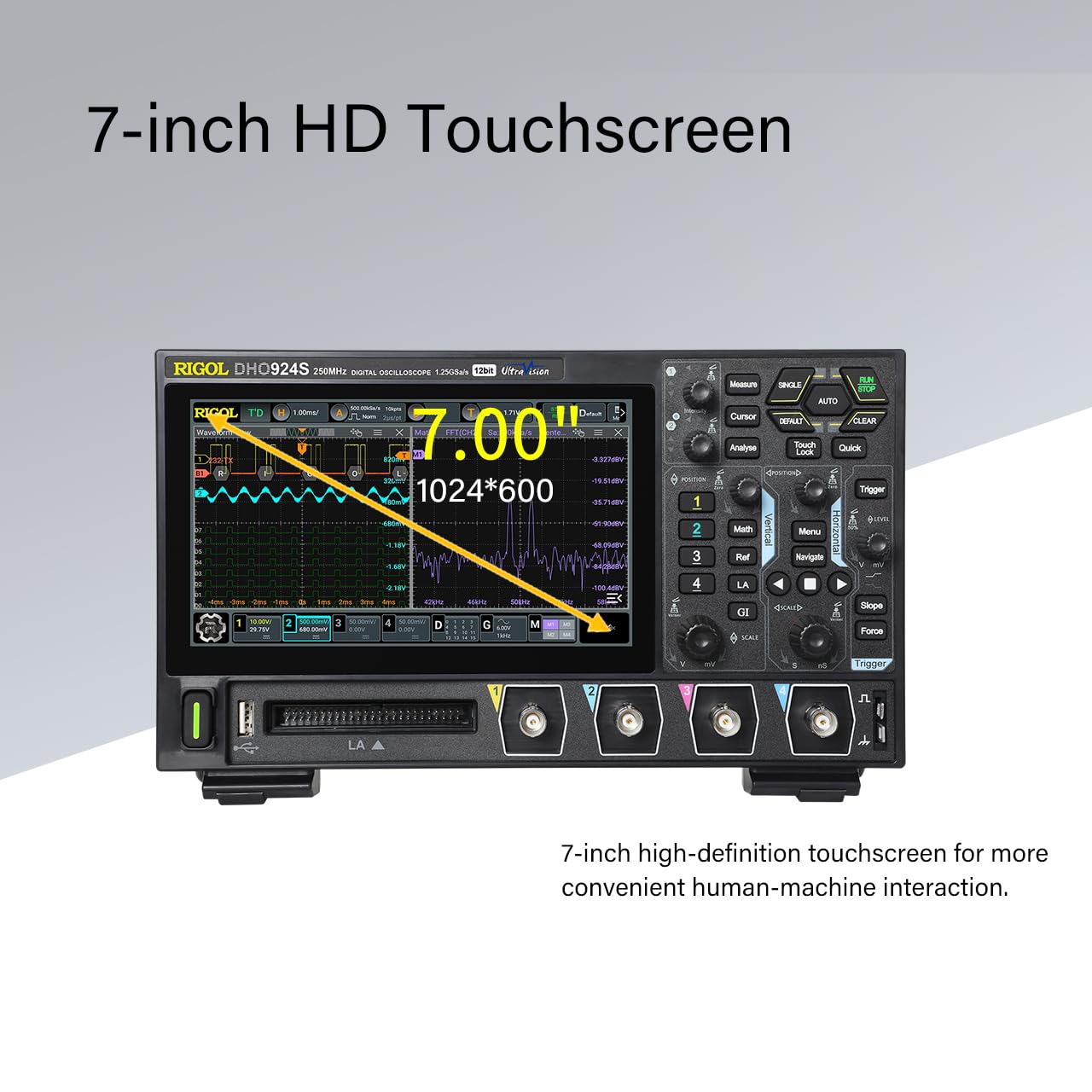

Supports gray scale digital real-time brightness function on the 256 floor. It integrates a variety of functions including arbitrary waveform/function generator, birdon plot analysis, histogram, digital signal analysis, and many more in one. Supports waveform search and navigation function to quickly identify signal abnormalities. Equipped with a 7-inch 1024 x 600 high-definition touch screen.
New Flex knob provides a more user friendly operating experience. All models come standard with USB Device&Host, LAN, and HDMI ports. Support online version upgrade function
The main body of RIGOL equipment provides a 3 year standard warranty. Product Weight: 3.9 lbs (1.78 kg). Dimensions: 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)

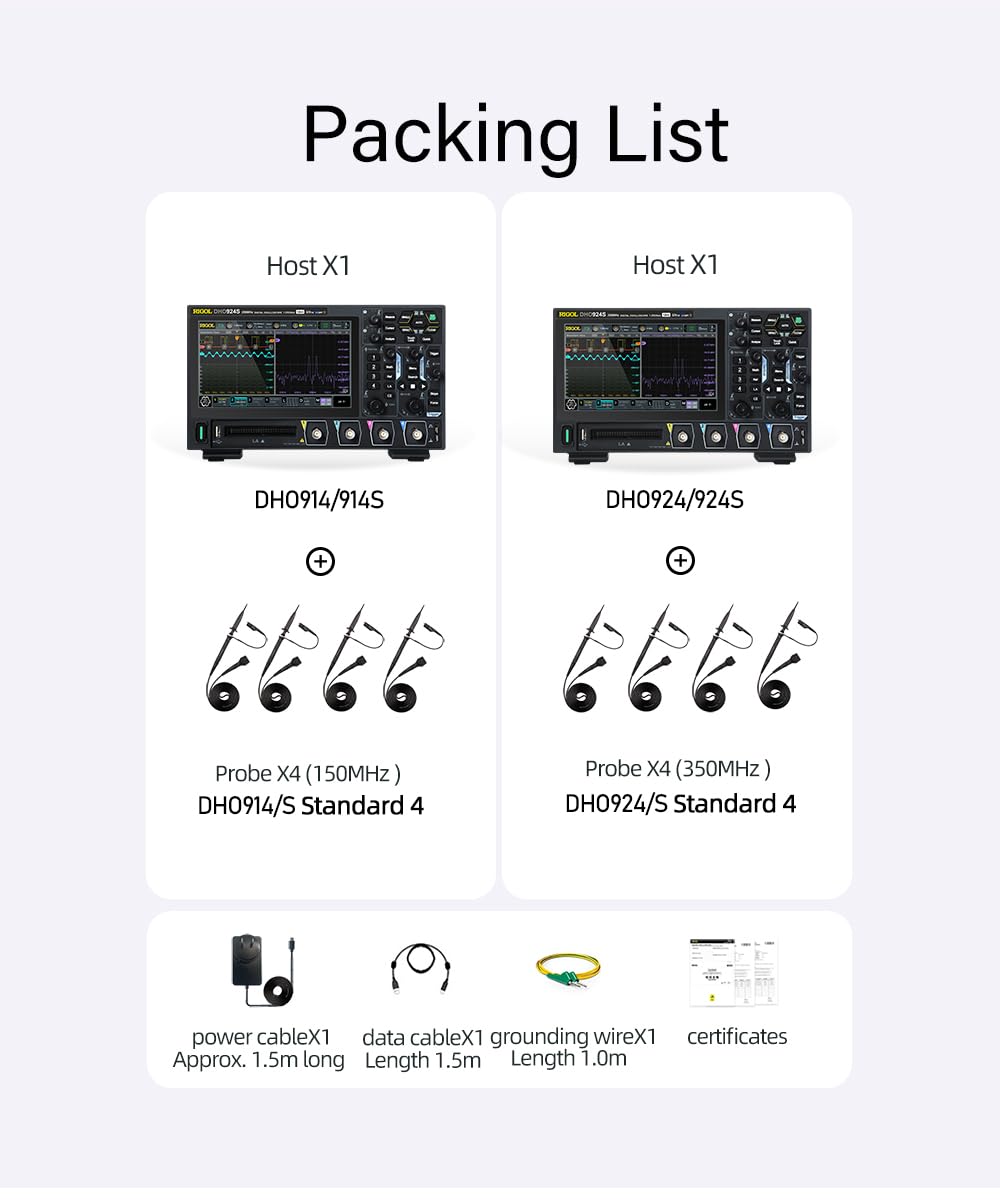

Accessories: Power cable, USB cable, ground wire, probe x 4
