Home Core Cognition Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sale!
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)
Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

Original price was: $44.99.Current price is: $39.99.
SKU: B0CNW5S7QS

OVERVIEW

Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (PMOD Bundle)

WayPonDEV

Price:
$44.99 - $39.99


(as of Dec 04, 2025 16:45:22 UTC –

Details
)


View this item on Amazon

Rating: 5 / 5
Categories: Electronics > Computers & Accessories > Computer Components > Single Board Computers
ASIN: B0CNW5S7QS

What customers are saying

Product overview

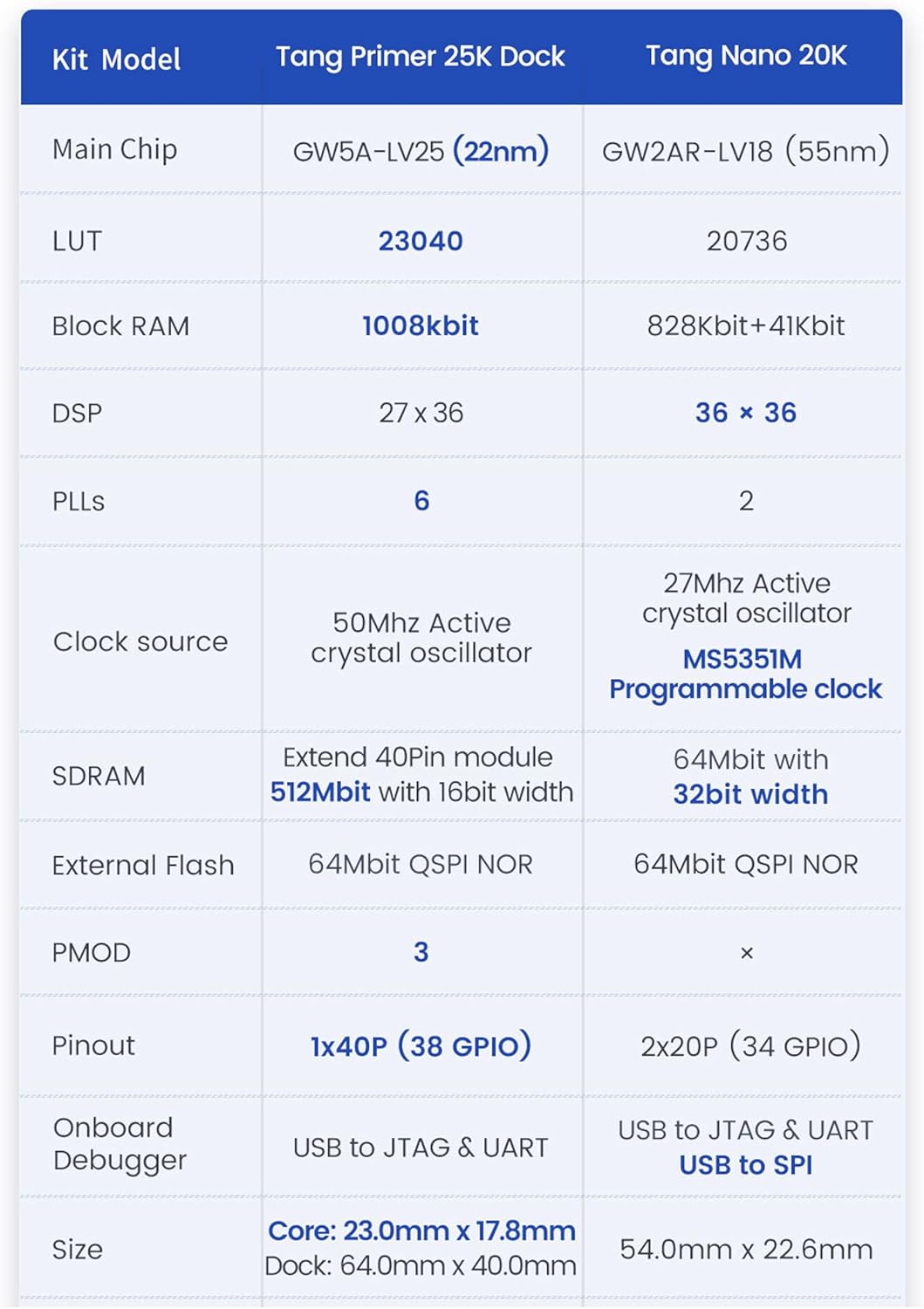

-Specification-
CPU: GW5A-LV25MG121 FPGA SoC
Flash: 64Mbits NOR Flash
Debugger: on-board high-speed debugger, support JTAG + UART, using the USB-C port burning
USB-A: one, can be used as a USB1.1 Host to connect the gamepad and other HID devices
IO pin: a 2x20Pin 2.54 pin Support SDRAM module
General IO:75
MIPI IO: 4lane Data
PMOD: 3 pcs
Pushbuttons: 2 pcs
Size: 64x40mm
-Package Content-

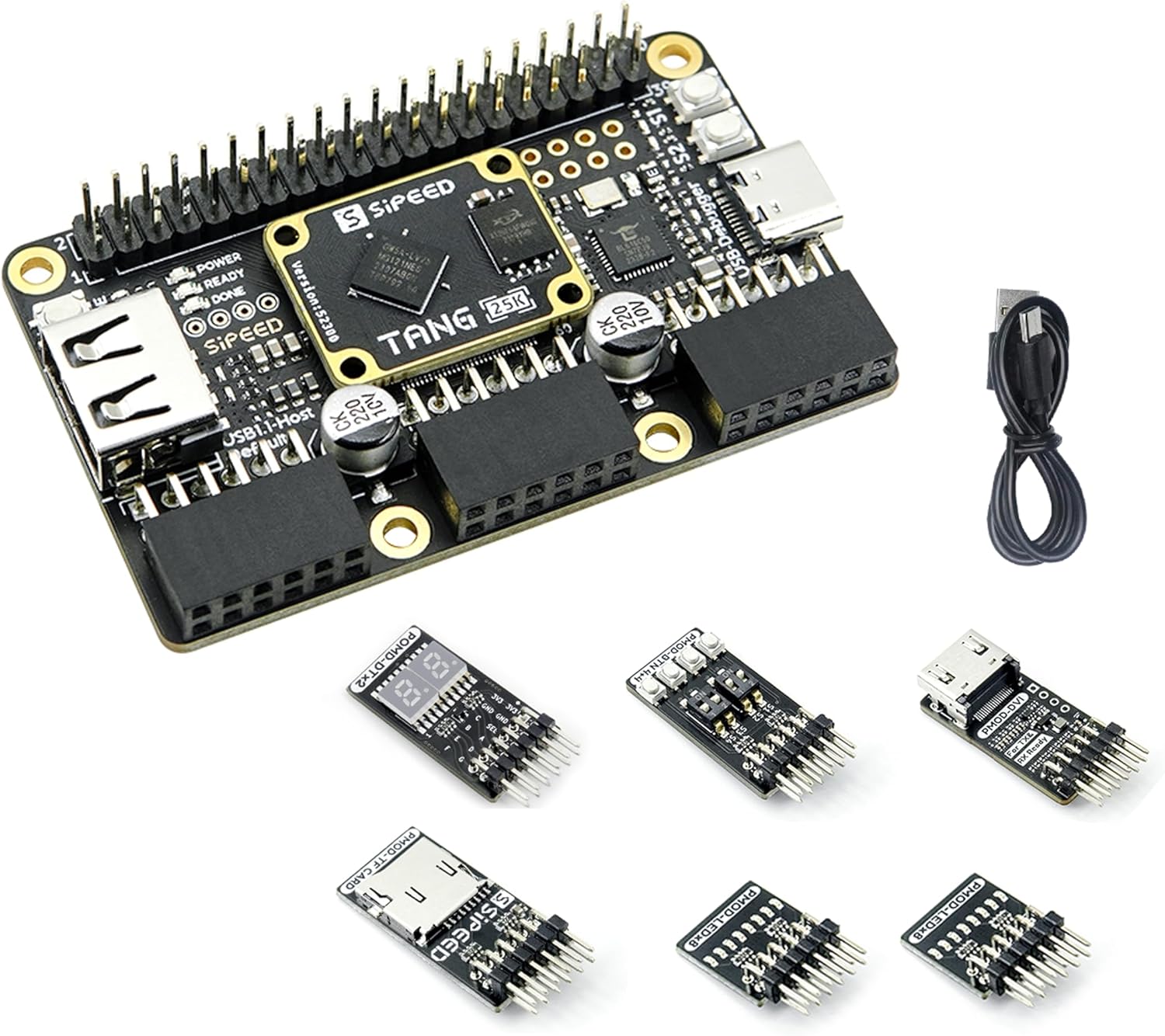

Shown as picture Combo x1
-Technical Support-

  • Github Link:"github.com/sipeed/TangPrimer-25K-example"
  • Card Location Map: "file:///C:/Users/Lenovo/Downloads/Tang_Primer_25K_Dock_60033_ibom.html"
  • Please click "WayPonDEV" and ask a question.
  • Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.

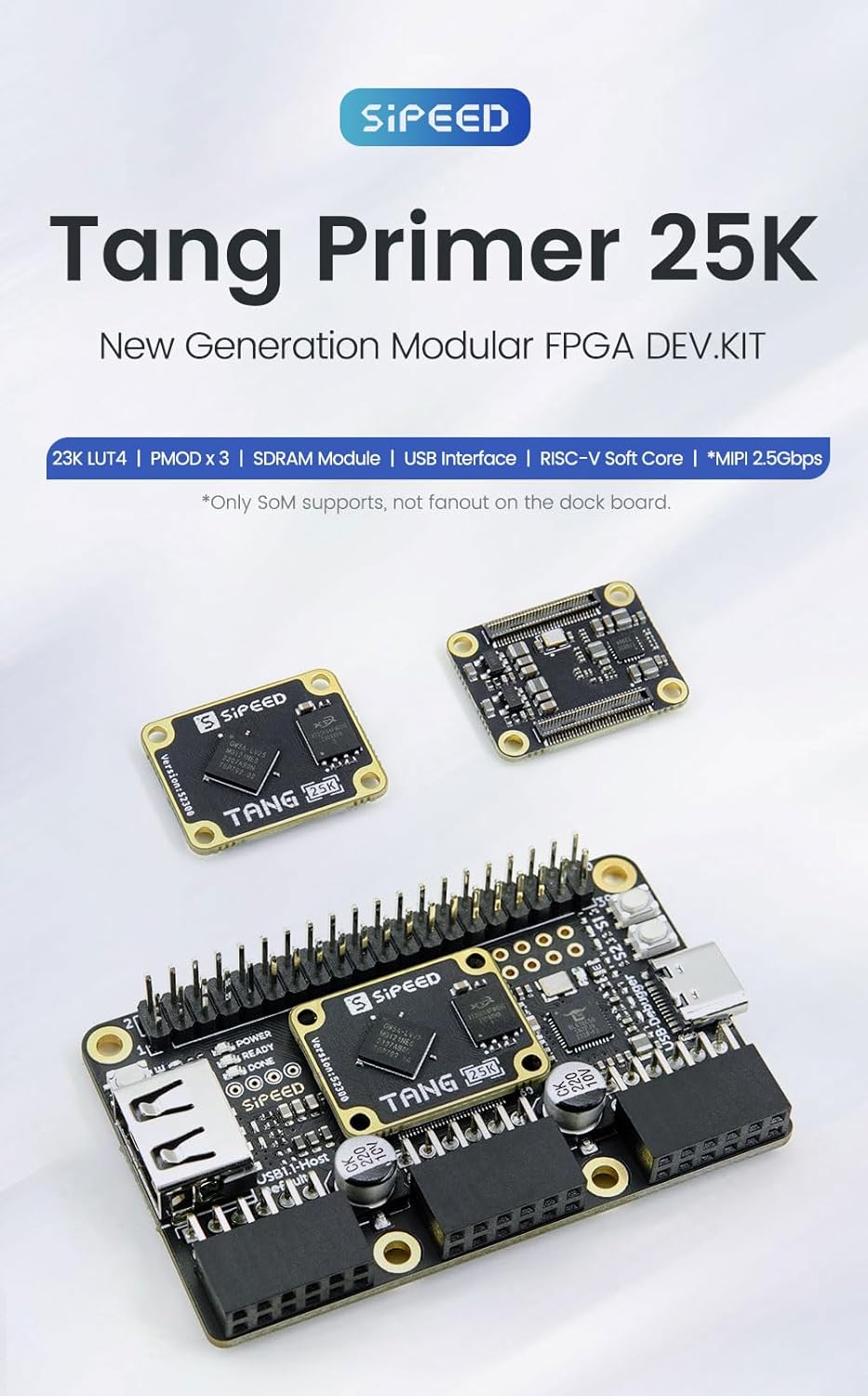

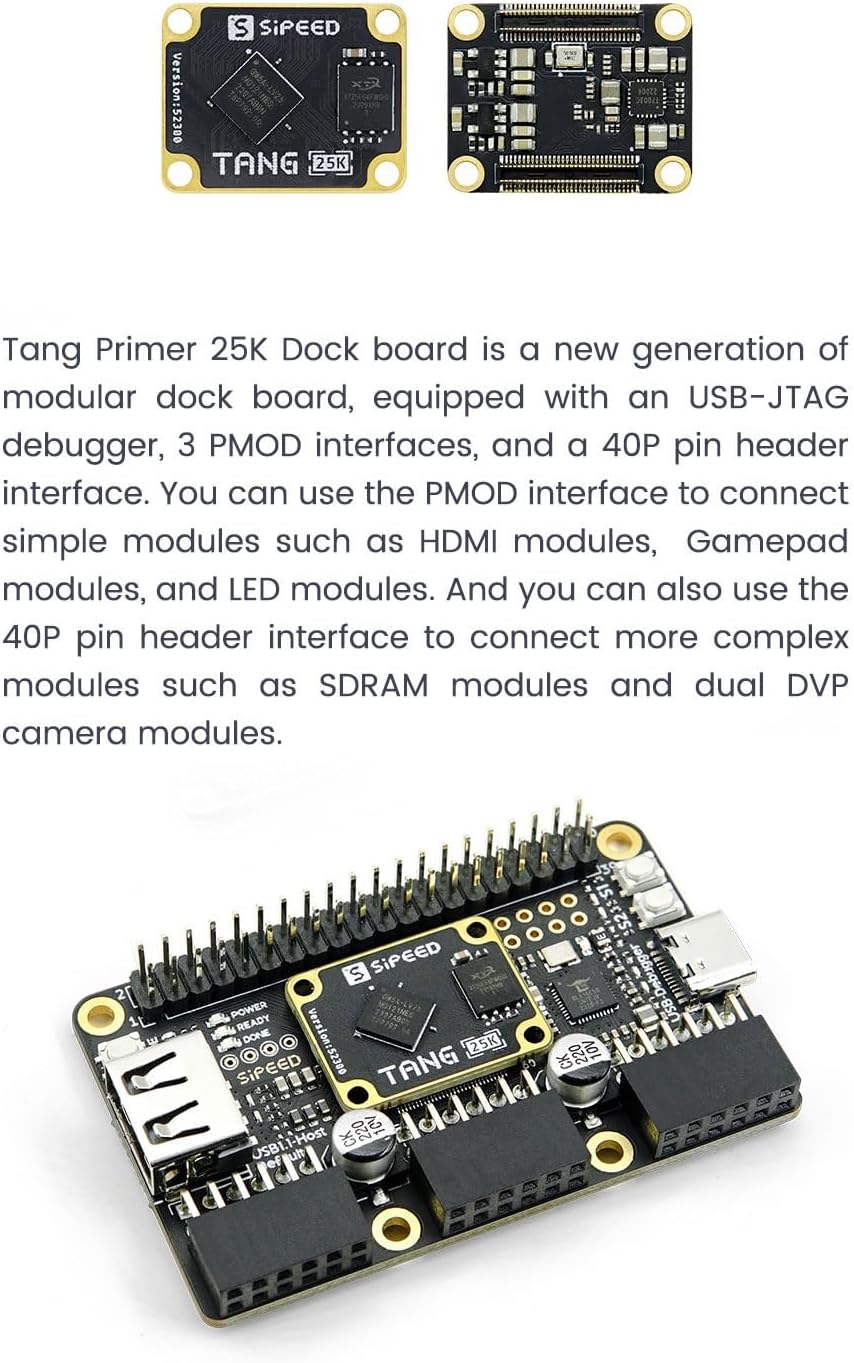

[FPGA RISCV CPU] Tang Primer 25K Dock single board computer is a new generation of modular development board with onboard RISC-V soft core, 23K LUT4 FPGA GW5A RISCV CPU, supports MIPI 2.5Gbps Ethernet, and is equipped with a USB-JTAG debugger , 3x PMOD interface, 1x USB interface and 1x 40P pin header interface to facilitate FPGA programming.

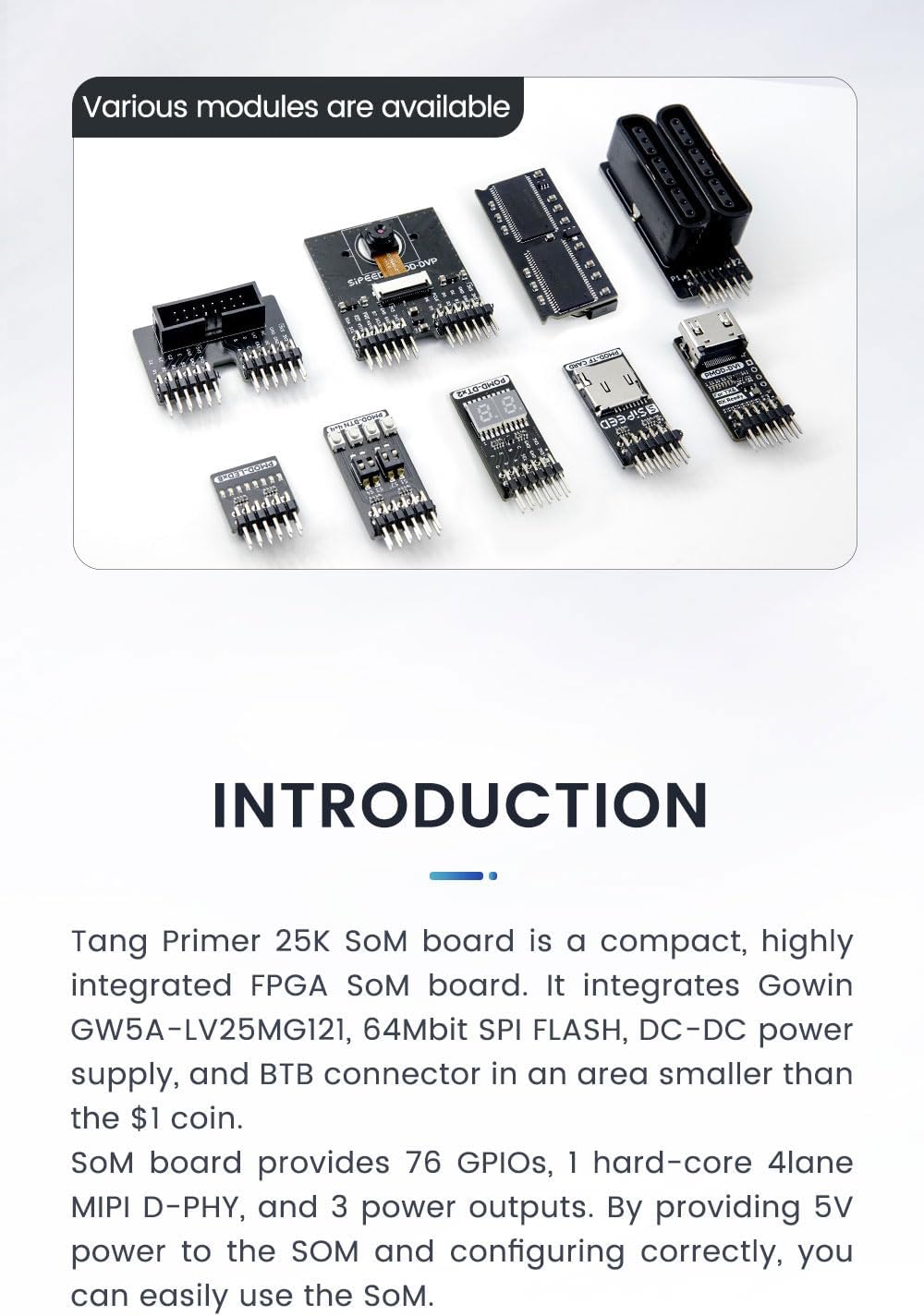

[PMOD Interface Module] The Tang Primer 25K Dock single board computer supports using the PMOD interface to connect simple modules such as HDMI modules, game controller modules and LED modules. It can also use the 40 PIN GPIO interface to connect SDRAM modules, dual DVP camera modules and other more complex functions. module.
[Small Size, High integration] Tang Primer 25K Dock single board computer is a small, highly integrated FPGA development board. It only needs to provide a 5V power supply to the core board and correctly set the configuration pins. It can be applied to any space with limited space. scene.

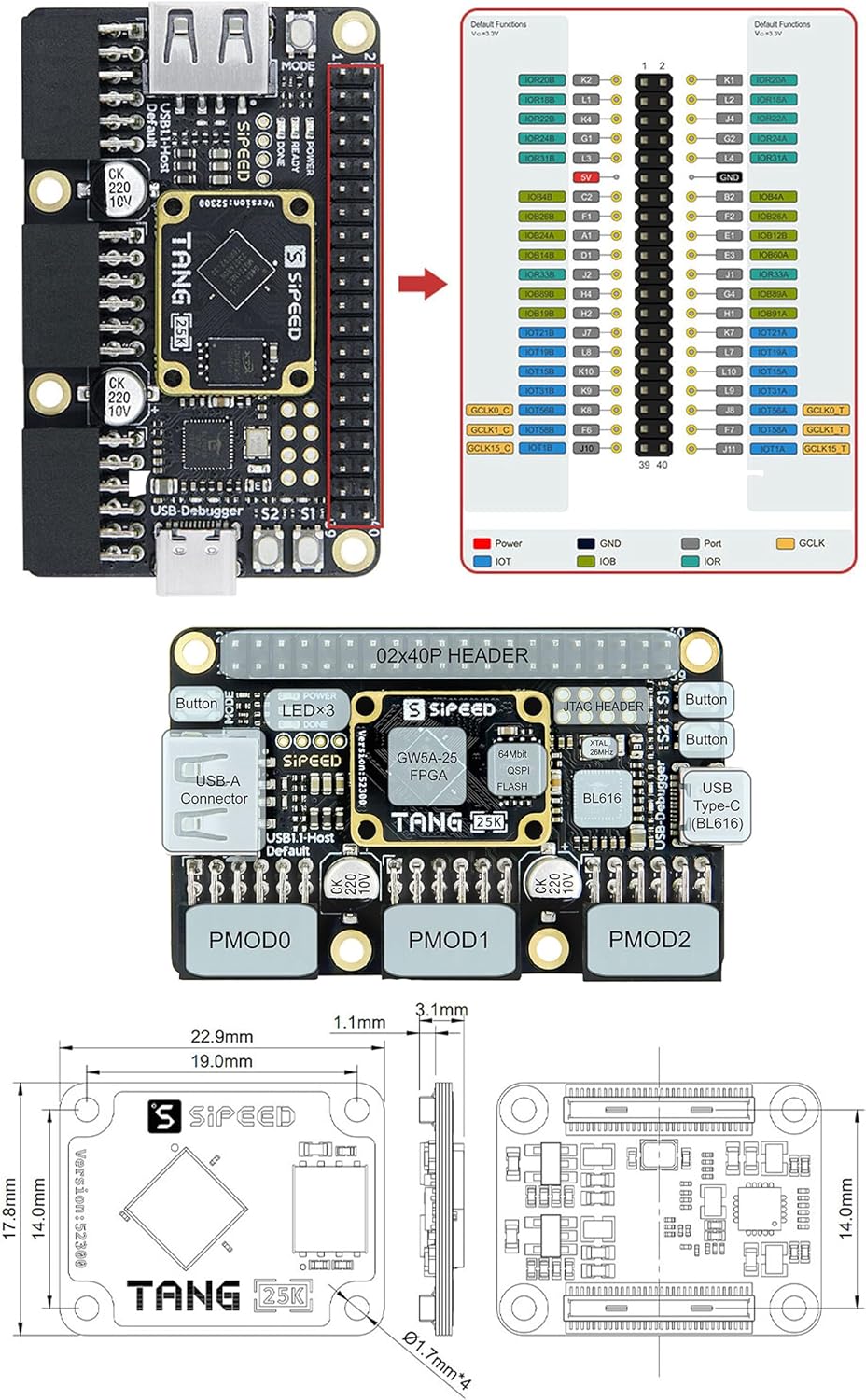

[Rich Peripheral Pins] Tang Primer 25K Dock development board integrates Gowin GW5A-LV25MG121, 64Mbit SPl FLASH, DC-DC power supply and BTB connector. Its core board leads to 76 GPIOs and 1 hard core 4lane MIPI line and 3 power outputs for users to use.

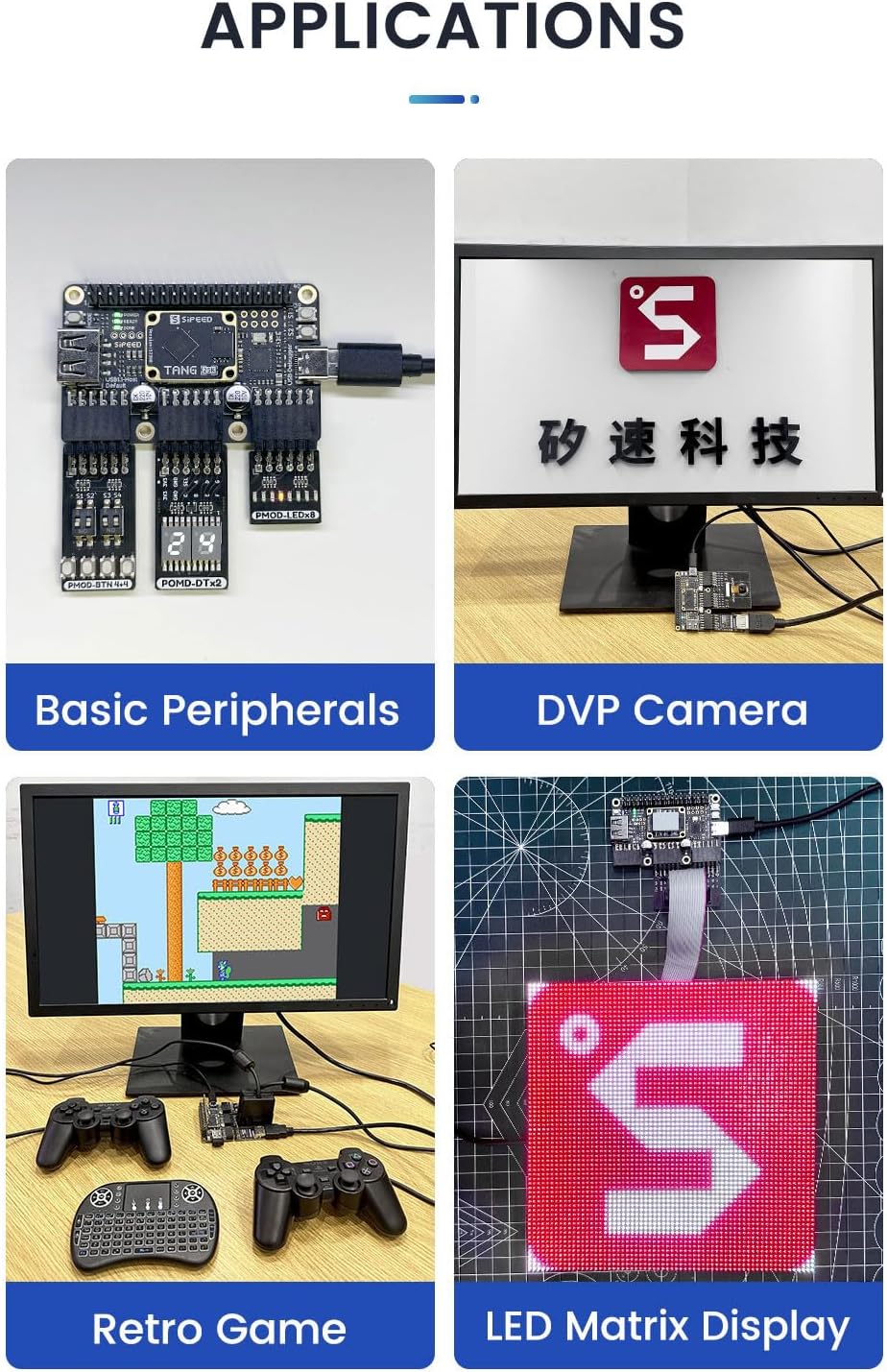

[Application Scenarios] The Tang Primer 25K Dock development kit is equipped with a downloader and does not need to be connected to other downloaders for programming, making secondary development and programming easier. It can be widely used in FPGA education and teaching, game equipment, cameras, and security monitoring equipment wait
[Wiki] Datesheet SDK Document download please click "WayPonDEV" store and ask the question. All after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".

Technical details

Technical Details

Collapse all

Summary
RAM ‎DDR3 or DDR4
Wireless Type ‎802.11a/b/g/n/ac

Other Technical Details
Brand ‎WayPonDEV
Series ‎Sipeed Tang Primer 25K Linux RISCV FPGA Development Board
Item model number ‎Tang Primer 25K Dock RISCV FPGA SBC
Operating System ‎Linux
Item Weight ‎3.17 ounces
Product Dimensions ‎2.52 x 1.57 x 1.57 inches
Item Dimensions LxWxH ‎2.52 x 1.57 x 1.57 inches
Processor Brand ‎FPGA GW5A-LV25 Chip (22nm)
Number of Processors ‎1
Manufacturer ‎youyeetoo
ASIN ‎B0CNW5S7QS
Date First Available ‎November 23, 2023

Additional Information

Customer Reviews

3.9 out of 5 stars

(16)

3.9 out of 5 stars

Best Sellers Rank

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

Product Warranty: For warranty information about this product, please click here
