Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version
$23.90
OVERVIEW
Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version
OONO
Price:
$23.90
$23.90
(as of Feb 05, 2026 10:07:03 UTC –
Details
)
Rating: 4.5 / 5
Categories: Industrial & Scientific > Industrial Electrical > Controls & Indicators > IO Modules
ASIN: B08R7RJY65
Categories: Industrial & Scientific > Industrial Electrical > Controls & Indicators > IO Modules
ASIN: B08R7RJY65
What customers are saying
Product overview
Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.

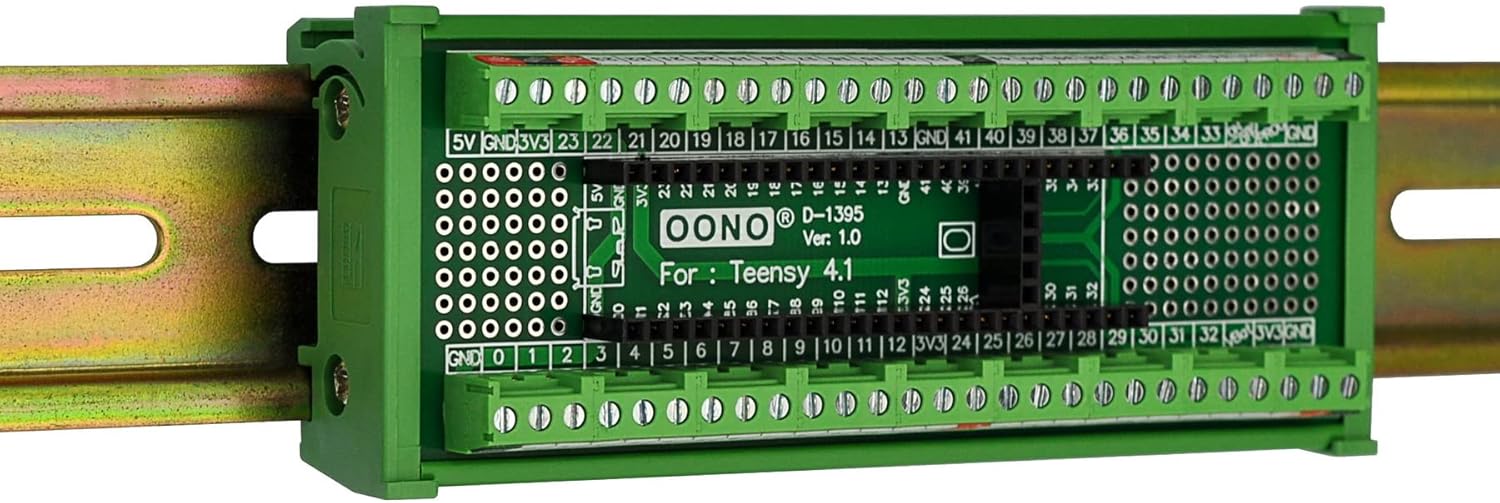

FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

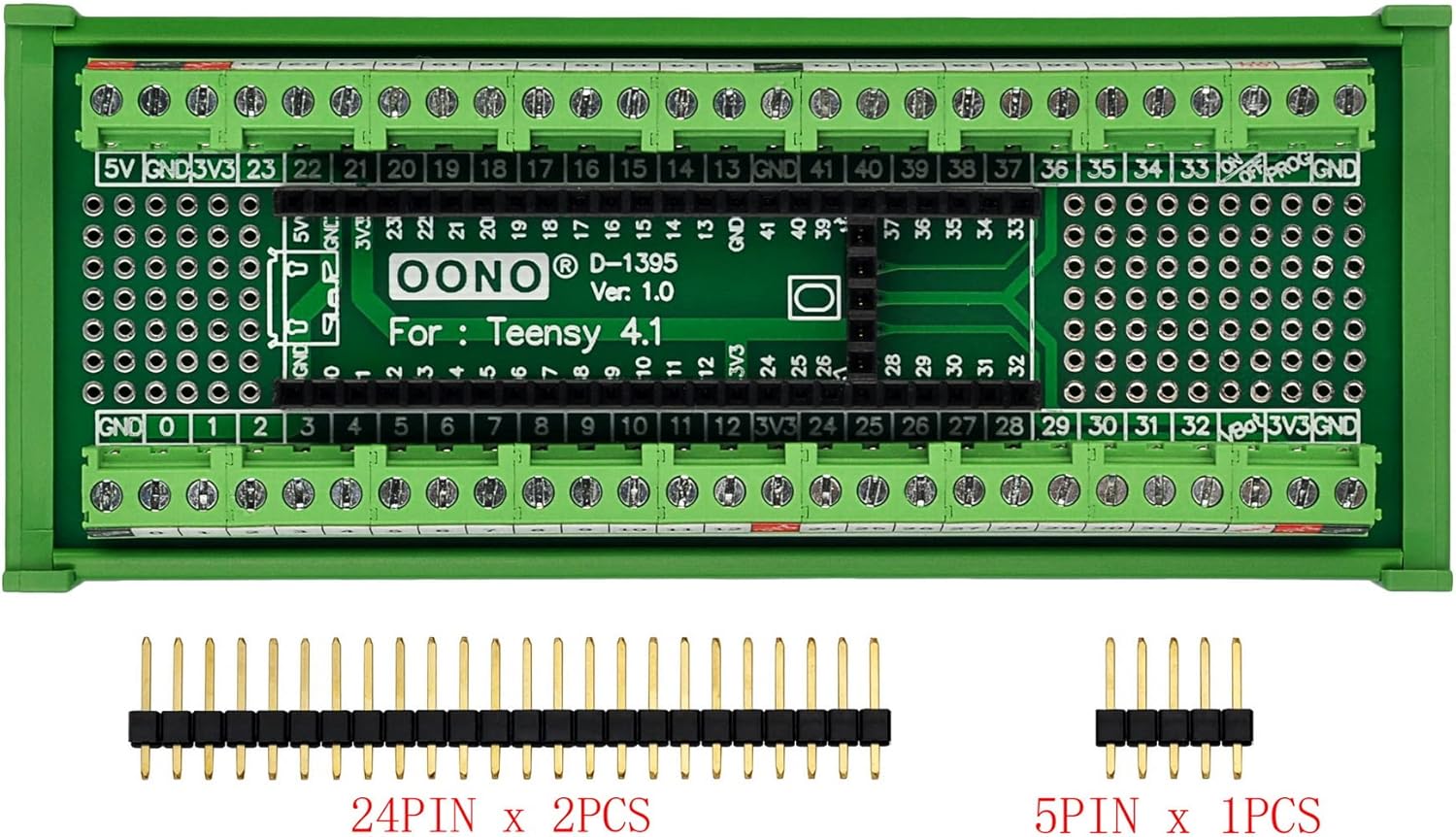

Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Technical details
| Current Rating | 13 Amps |
|---|---|
| Item Pitch | 3.81 Millimeters |
| Gauge | 16.0 |
| Connector Type | Screw |
| Number Of Contacts | 112 |
| Mounting Type | DIN Rail Mount |
| Material | Nylon |
| Color | Green |
| Brand | OONO |
| Number Of Poles | 112 |
| Upper Temperature Rating | 105 Degrees Celsius |
| Manufacturer | CZH-LABS |
| Package Dimensions | 5.2 x 2.68 x 1.73 inches |
| Item Weight | 3.98 ounces |
| ASIN | B08R7RJY65 |
| Item model number | D-1389 to D-1395 Series |
| Customer Reviews |
4.3 out of 5 stars |
| Best Sellers Rank |
|
| Is Discontinued By Manufacturer | No |
| Date First Available | March 10, 2016 |
