Details
)

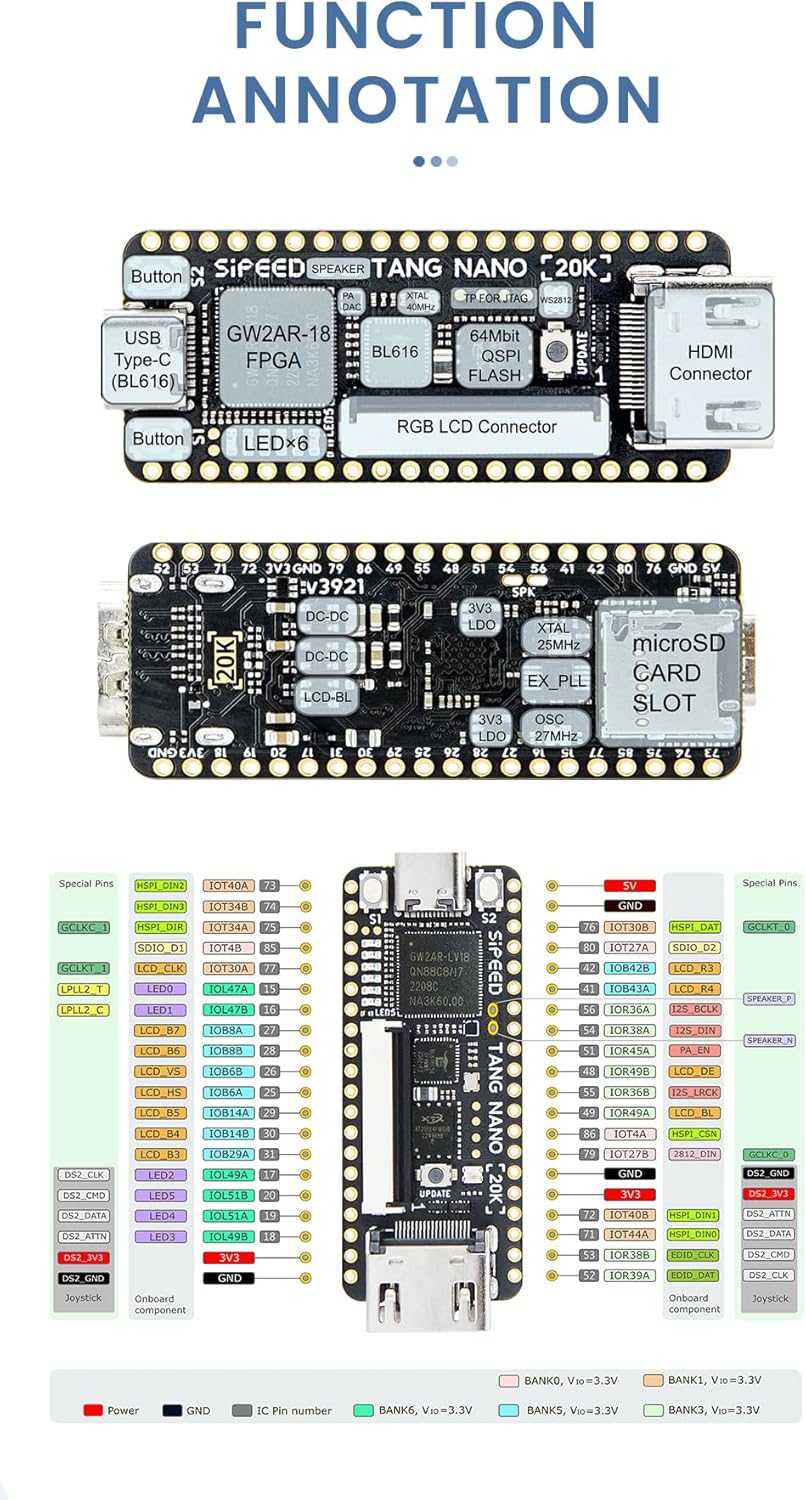

Tang Nano 20K is a core board that uses the high-cloud semiconductor GW2AR-18 QN88. The chip has 20,736 logic lookup tables (LUT4) and 15,552 registers (FF), with two PLLs inside and multiple DSP units supporting 18-bit x 18-bit multiplication to accelerate digital operations. The board is equipped with the BL616 chip as FPGA JTAG downloader and serial communication with the FPGA. The default 27MHz crystal oscillator is used on the board for clock multiplication required for HDMI display, and MS5351 clock generator chip is additionally installed to generate various required clocks as needed stop.
Support:
support @ youyeetoo DOT com
Communication and customized consulting:
am2 @ youyeetoo DOT com
Whatsapp: +86 150 1406 1350
Forum: forum DOT youyeetoo DOT com (Recommend)
If you need support or bulk inquiries, please also contact me.
[Tiny] Tang Nano 20K is a new development board from the SIPEED Tang Nano series. lt has the same number of logic units as Tang Primer 20K,but its size is compressed to the extreme of 5.5x2.3 cm.
[Shipping List] 1x Sipeed Tang Nano 20K; 2x PS2 Handle; 1x Breadboard; Tips: To make it a gaming machine, you only need to have TF card and power supply.
[Emulator Game Set] lt has a built-in low-latency 64Mbits SDRAM,which makes it easier to run NES emulator andsoftcore Linux system. [WIKI] wiki.sipeed.com/hardware/en/tang/tang-nano-20k/nano-20k.html

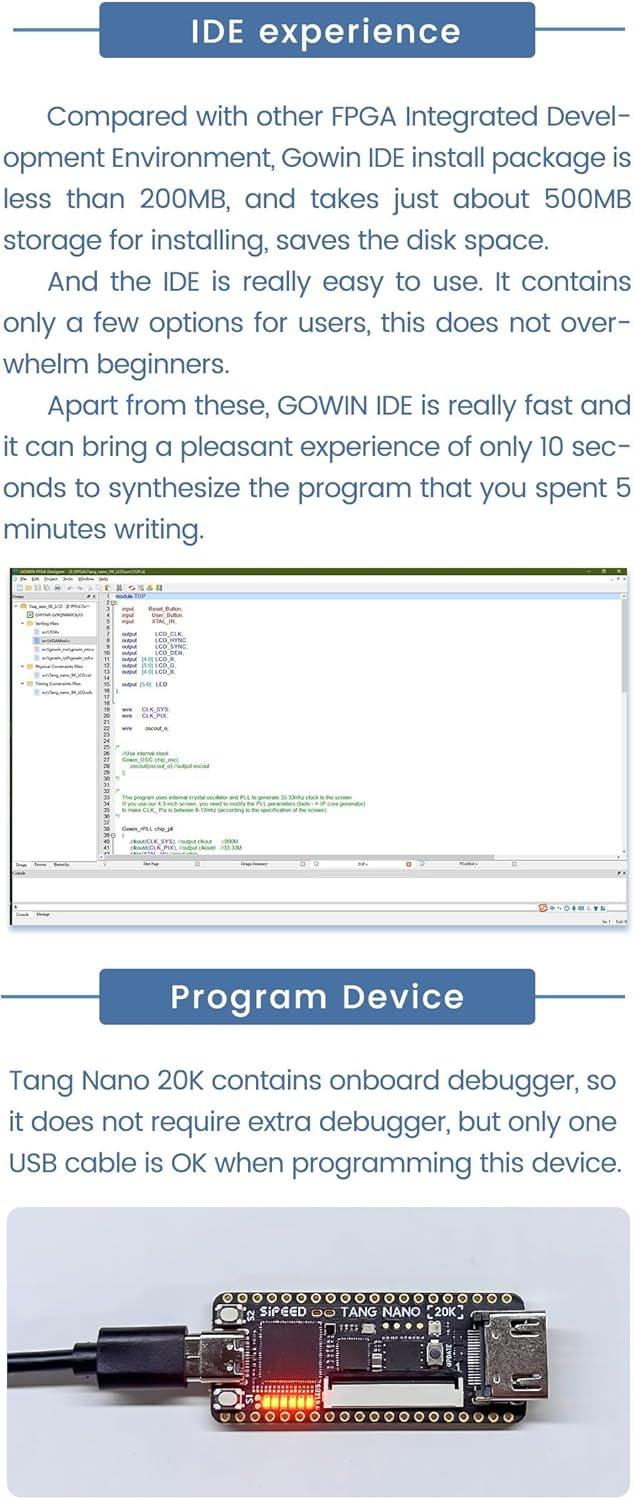

[Onboard Debugger] The onboard debugger is upgraded to USB2.0 HS interface, which has high-speed JTAG download,UART test, high-speed SPl reception,and precise configurable clock functions.
[Comprehensive upgrade] Compared with the previous Nano series FPGA chip, it is a huge upgrade. Whether it is maker design, retro game simulator, DIY development, learning Verilog, RISC-V soft core, it can satisfy you.
