• User Manual that explains the usage and programming
• Data Sheet that explains the board hardware
• All software drivers required for use of this product
• Fully synthesized FPGA projects along with source code
• Tutorials about how to "Get Started with FPGA's"

The DueProLogic DVD contains a tutorial to assist the user in
learning Programmable Logic. There are several assignments
that allow the user to explore Logic Simulation and to visualize
how their code performs before committing to hardware. The
DueProLogic is the perfect FPGA Development System.

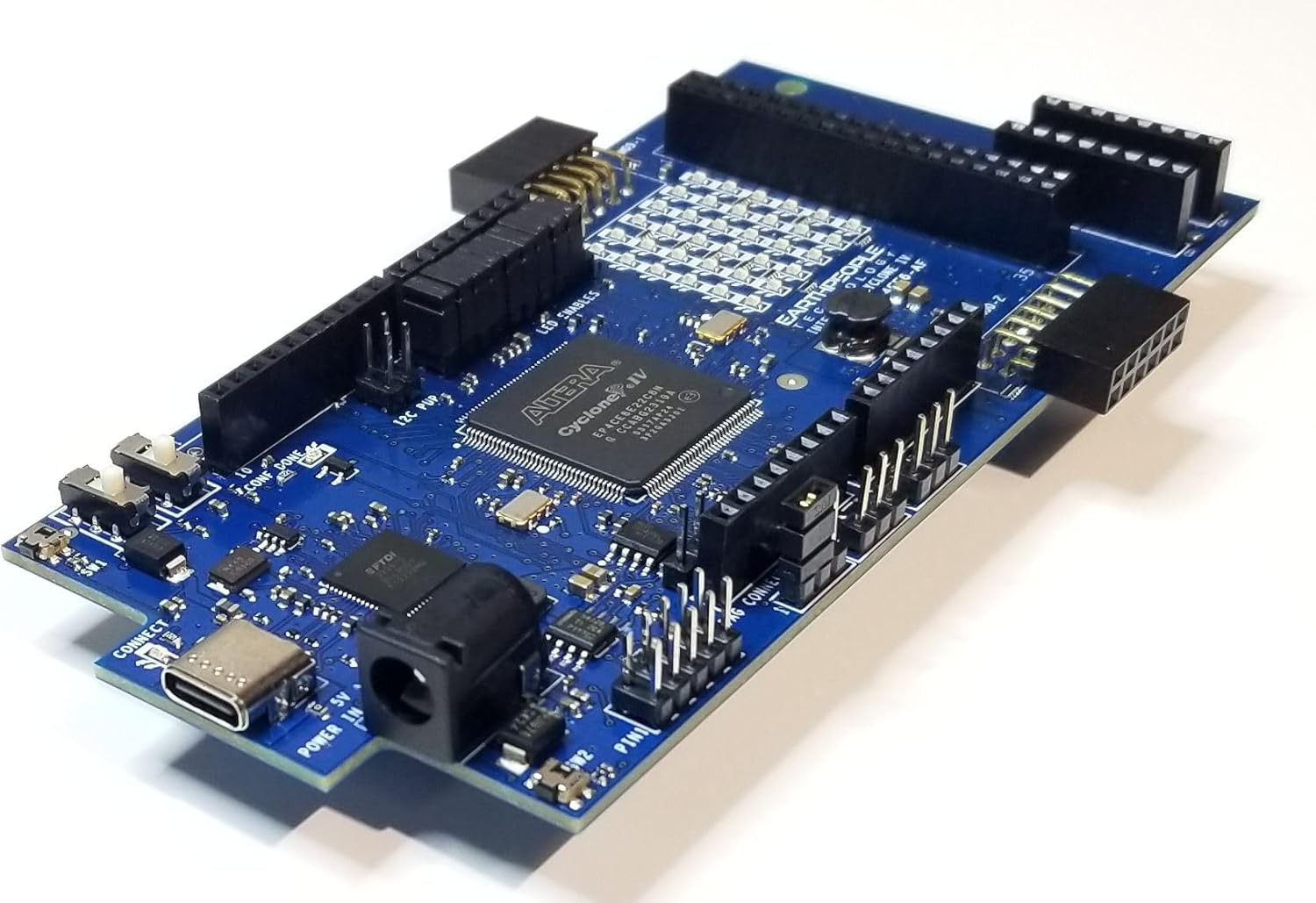

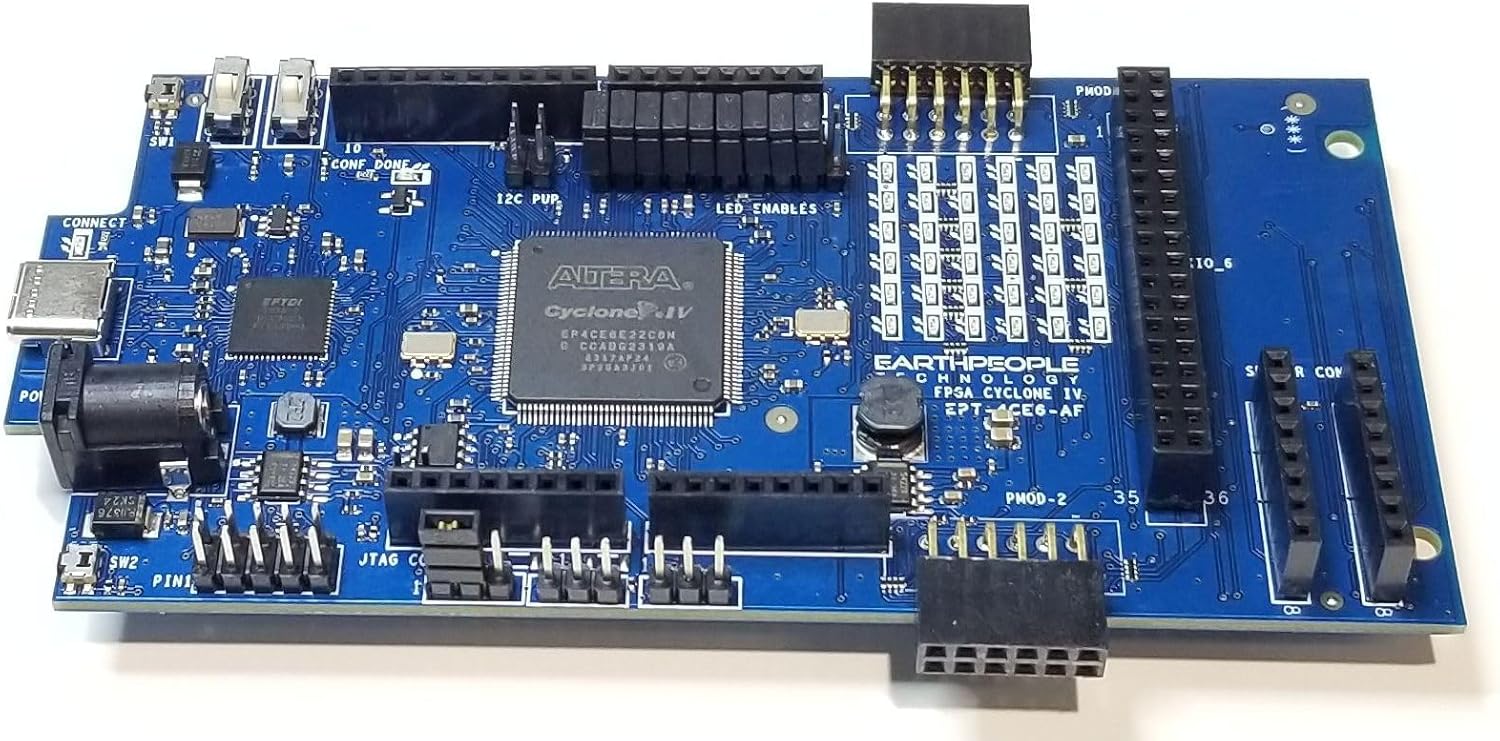

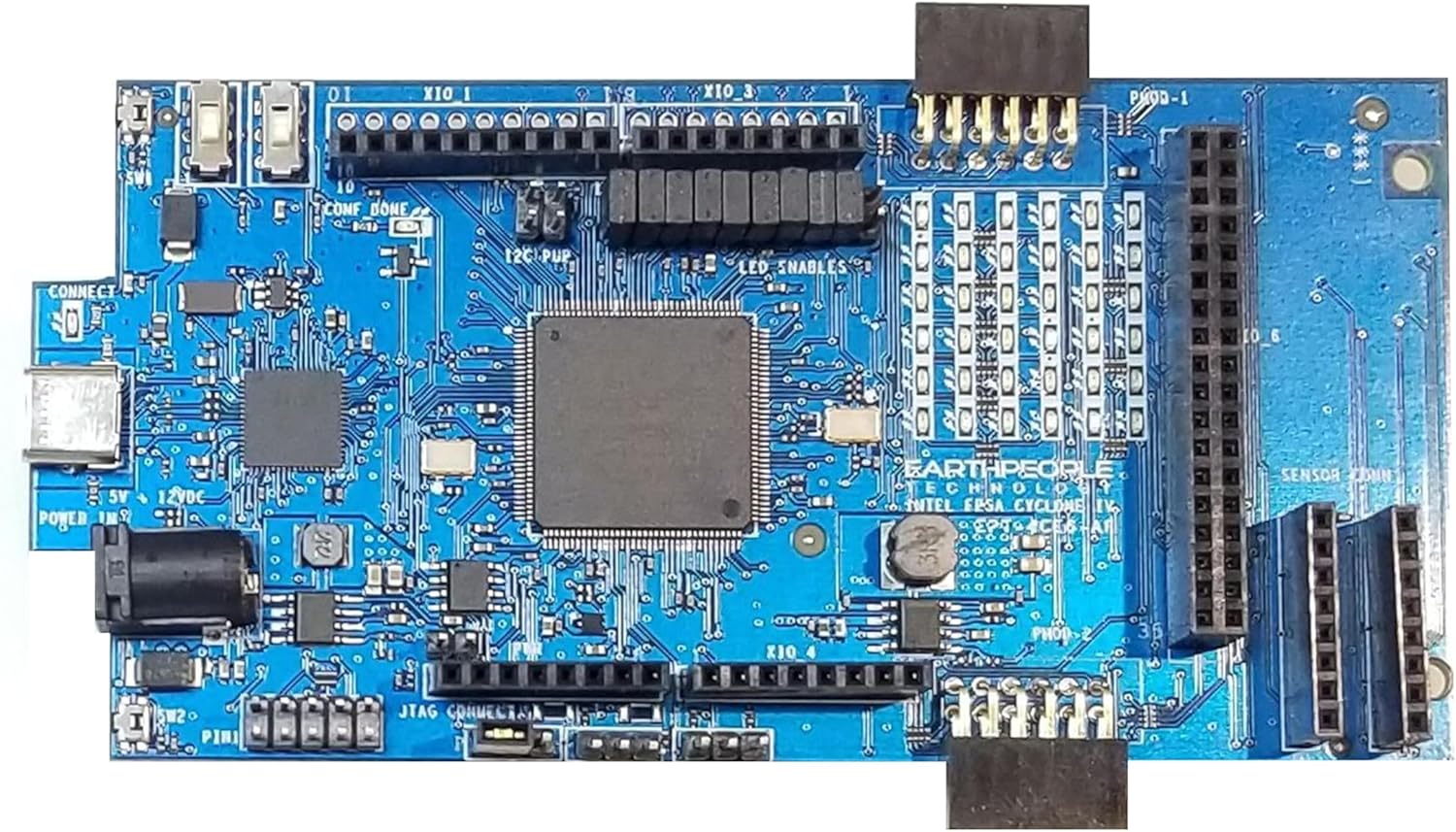

Altera Cyclone IV FPGA includes 6,000 Logic Elements with two clock multipliers. The Cyclone IV FPGA is the perfect balance of inexpensive cost versus plentiful logic cells, 20KBytes of SRAM, and General Purpose Input/Output pins. This is a great board to learn how to program FPGA's.

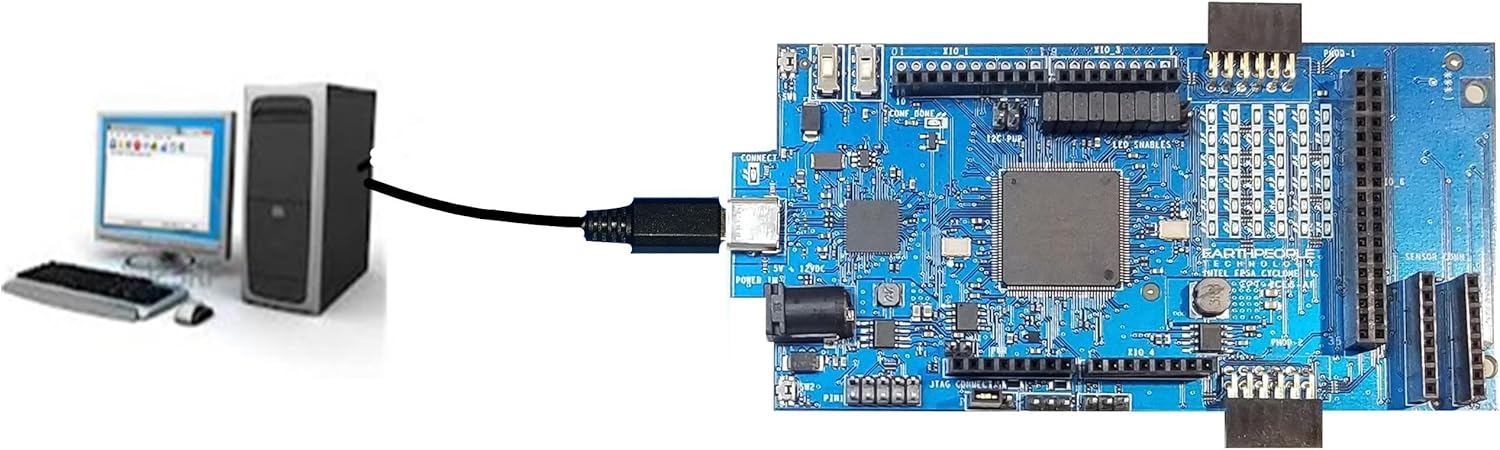

Built in programmer cable allows configuring the FPGA with a single USB-C cable. The DPL can be powered from the USB cable or from the Barrel Connector. A separate JTAG header can also be used to program the FPGA using a compatible USB Blaster cable.

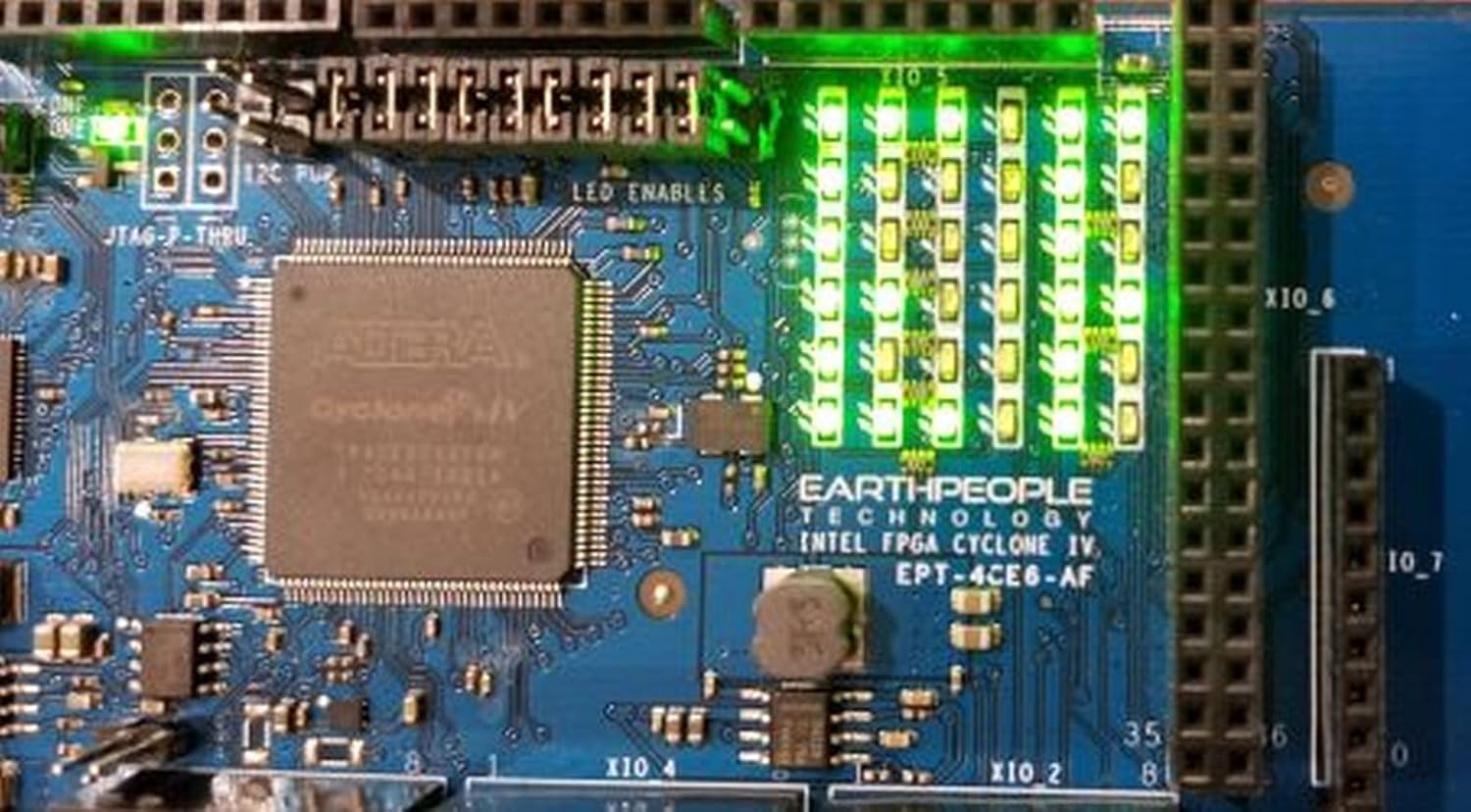

6x6 LED Array allows character and animations to be displayed at ultra fast speed. LED blocks can be individually turned on/off to allow LED signals to be used as I/O's

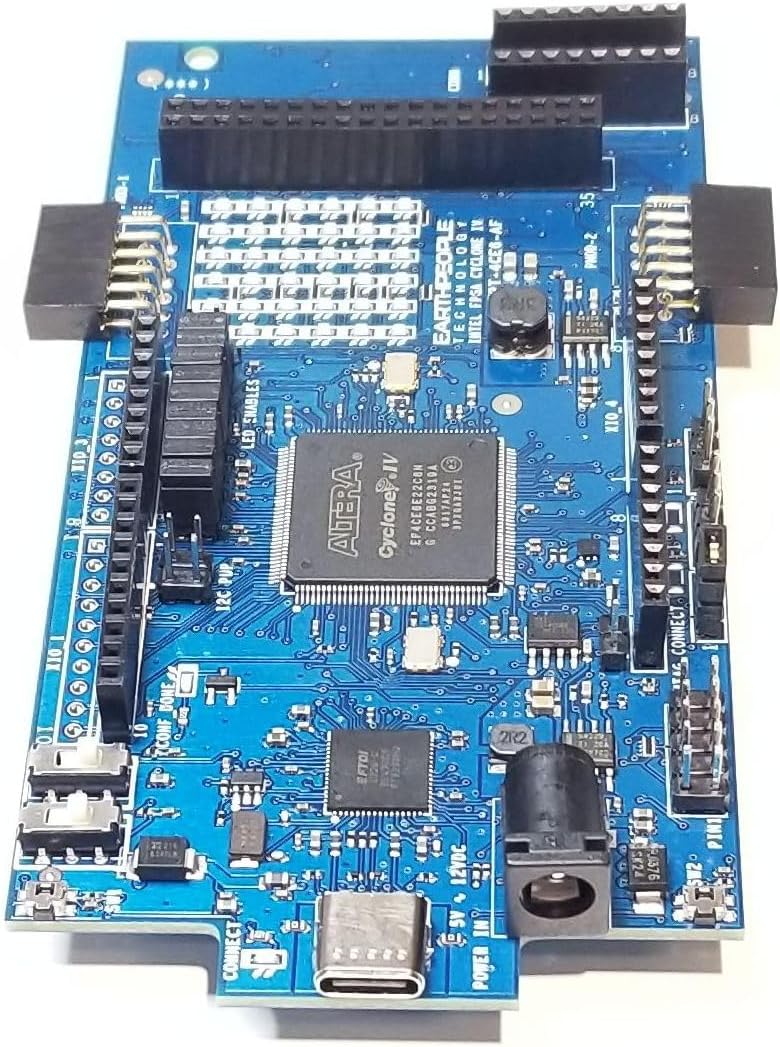

70 Inputs/Outputs originating at the FPGA are available at Stackable Headers organized around the edge of the board. The user can configure these I/O's using the FPGA project code.
The DPL contains two oscillators, 66MHz and 100MHz. The 66MHz oscillator is used to provide clocking for the EPT ActiveHost USB communications core. The 100MHz oscillator can be used by the user clocked up using one of the onboard Clock-DLL modules.

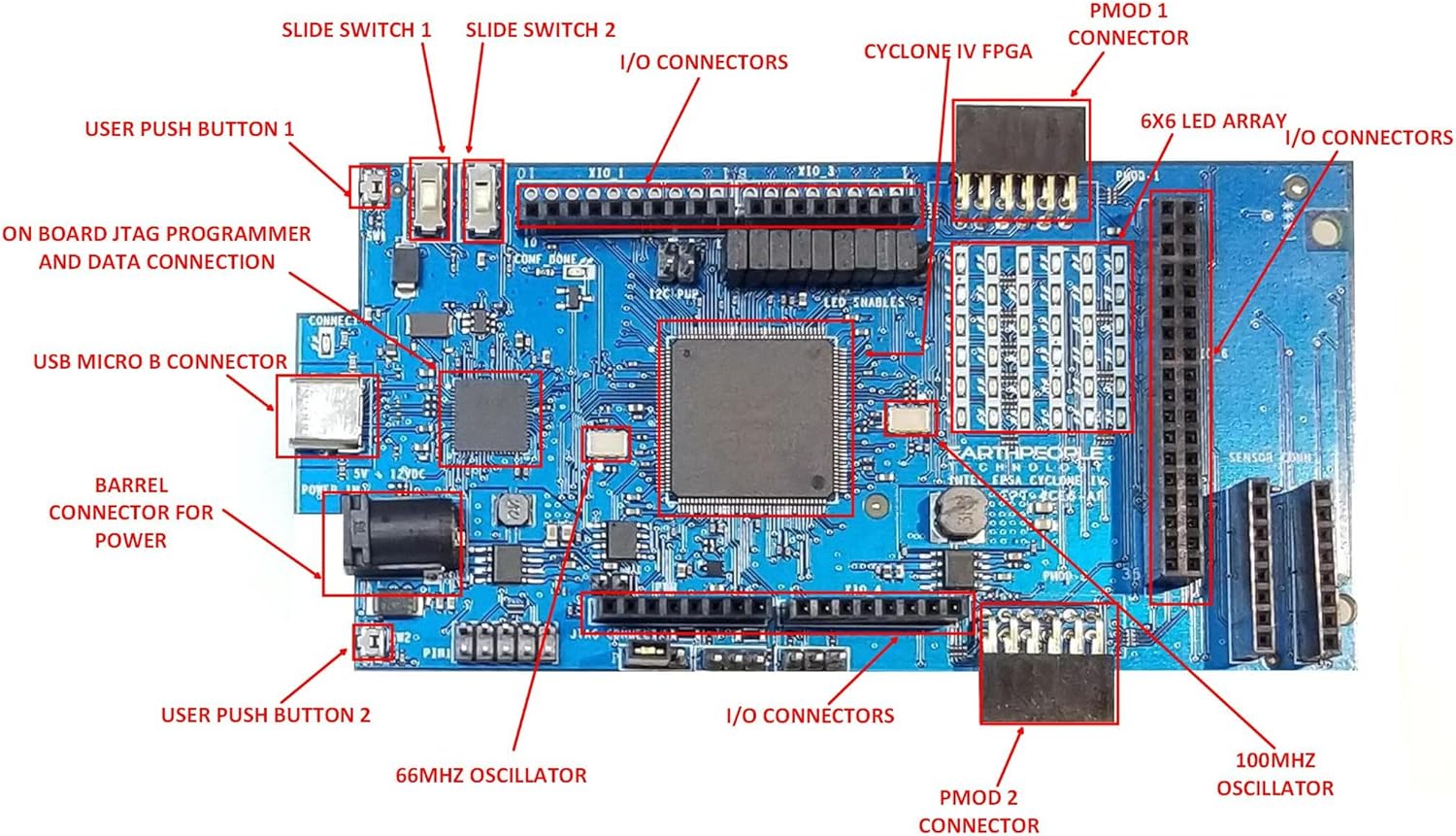

Two PMOD connectors, Two Slide Switches, Two PushButton Switches, Plenty of I/O for all your projects.
