Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)
Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)
Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)
Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)
Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)

Arty A7: Artix-7 FPGA Development Board for Makers and Hobbyists (Arty A7-100T)

$299.00
SKU: B07D1DVRG6

OVERVIEW

Price: $299.00
(as of Nov 13, 2025 04:16:50 UTC - Details)

Package Dimensions 4.41 x 3.54 x 1.26 inches
Item Weight 11.3 ounces
Manufacturer Digilent
ASIN B07D1DVRG6
Item model number 410-319
Customer Reviews

4.6 out of 5 stars

36 ratings

4.6 out of 5 stars

Best Sellers Rank

Is Discontinued By Manufacturer No
Date First Available July 18, 2018

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Product description

digilent national instruments FPGA Nexys A7-100 Artix xilinx fully programmable gate arraydigilent national instruments FPGA Nexys A7-100 Artix xilinx fully programmable gate array

Arty A7 Artix-7 FPGA xilinx digilent sensor fusion hobby arty 410-319 Arty A7 Artix-7 FPGA xilinx digilent sensor fusion hobby arty 410-319

Arty A7 FPGA

The Arty family of Digilent FPGA/SoC boards was designed with versatility and flexibility in mind. With universally popular Arduino headers and multiple Pmod ports, an Arty will be the most adaptable FPGA/SoC board in your toolbox.

The Arty A7 is a ready-to-use development platform designed around the Xilinx Artix-7 FPGA family. With the Artix-7 devices, the Arty A7 board provides the highest performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration in the Arty family. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

The Arty A7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. You can also leverage the Vitis Core Development Kit or Xilinx Software Development Kit to start developing for the MicroBlaze processor with no prior FPGA experience.

There are two variants of the Arty A7: The Arty A7-35T features the XC7A35TICSG324-1L, and the Arty A7-100T features the larger XC7A100TCSG324-1.

If the Arty A7 offers more performance than your application requires, the more affordable Arty S7, featuring the Spartan-7 FPGA, may be a better option. If you are looking for an SoC-based development board, consider the Arty Z7, featuring the Zynq-7000 APSoC.

Guides and demos are available to help you get started quickly with the Arty A7, which can be accessed through Digilent's website.

Arty A7 Artix-7 FPGA xilinx digilent sensor fusion hobby arty 410-319Arty A7 Artix-7 FPGA xilinx digilent sensor fusion hobby arty 410-319

System Features

Internal clock speeds exceeding 450MHzOn-chip analog-to-digital converter (XADC)Programmable over JTAG and Quad-SPI Flash256MB DDR3L with a 16-bit bus @ 667MHz16MB Quad-SPI FlashUSB-JTAG Programming circuitry (Micro B USB cable NOT included)Powered from USB or any 7V-15V source

Arty A7 FPGA fully programmable gate array xilinx hobby board programming Arty A7 FPGA fully programmable gate array xilinx hobby board programming

System Connectivity

10/100 Mbps EthernetUSB-UART Bridge

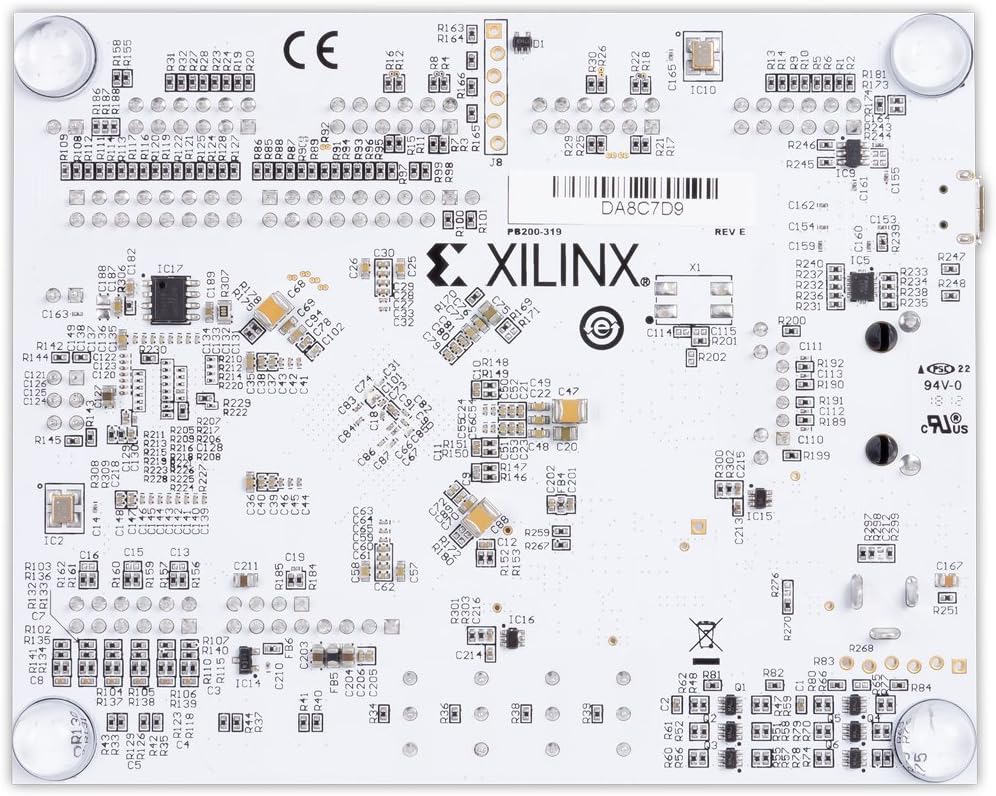

Arty A7 bottom view programming device FPGA Xilinx Digilent microcontrollerArty A7 bottom view programming device FPGA Xilinx Digilent microcontroller

Interaction and Sensory Devices

4 Switches4 Buttons1 Reset Button4 LEDs4 RGB LEDs

Arty A7 FPGA Xilinx Artix Digilent fully programmable gate array microcontroller hobby board Arty A7 FPGA Xilinx Artix Digilent fully programmable gate array microcontroller hobby board

Expansion Connectors

4 Pmod connectorsArduino/chipKIT Shield connector

Arty Side View Peripheral Module port Pmod ports Digilent Artix XilinxArty Side View Peripheral Module port Pmod ports Digilent Artix Xilinx

chipKIT processor reset button, 4x Peripheral Module (Pmod) Ports, FPGA programming reset button

Arty A7 Artix-7 Xilinx FPGA Digilent Microcontroller hobbyist electronic engineeringArty A7 Artix-7 Xilinx FPGA Digilent Microcontroller hobbyist electronic engineering

FPGA programming reset button, USB JTAG/UART port, Ethernet connector, Power jack for optional external power supply

Arty A7 Artix 7 FPGA microcontroller Digilent fully programmable gate arrayArty A7 Artix 7 FPGA microcontroller Digilent fully programmable gate array

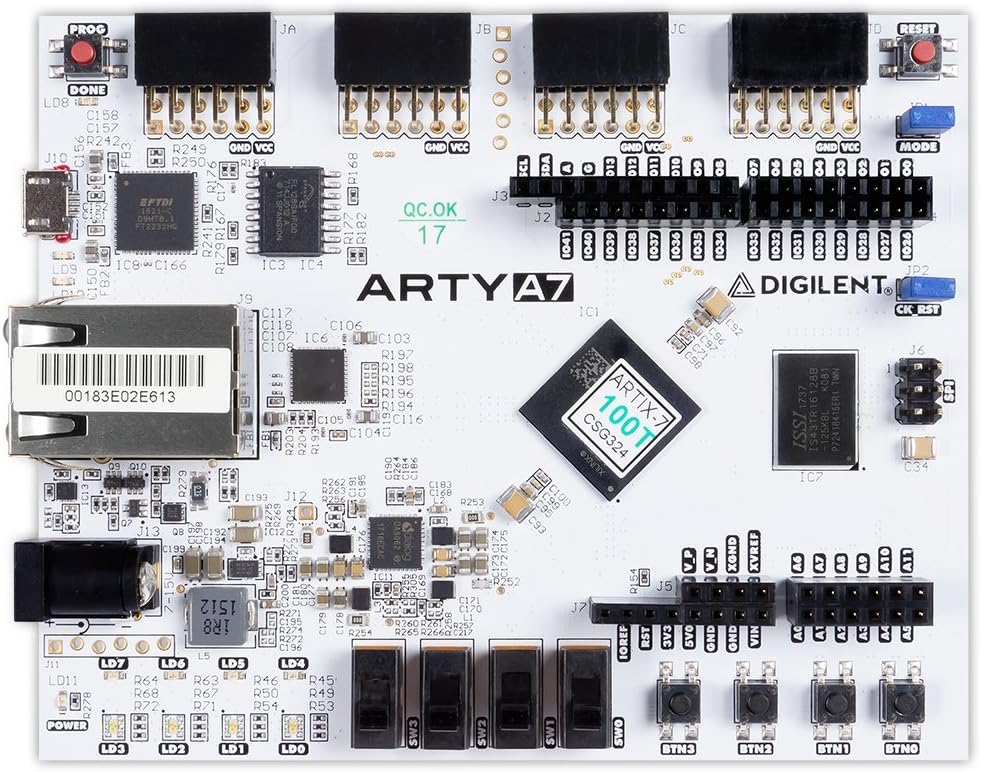

4x User LEDs, 4x user slide switches, and 4x user push buttons

Arty A7 comes in two FPGA variants: Arty A7-35T features Xilinx XC7A35TICSG324-1L. Arty A7-100T features the larger Xilinx XC7A100TCSG324-1.
Internal clock speeds exceeding 450MHz, On-chip analog-to-digital converter (XADC), Programmable over JTAG and Quad-SPI Flash
256MB DDR3L with a 16-bit bus @ 667MHz, 16MB Quad-SPI Flash, USB-JTAG Programming circuitry, Powered from USB or any 7V-15V source
10/100 Mbps Ethernet, USB-UART Bridge
4 Switches, 4 Buttons, 1 Reset Button, 4 LEDs, 4 RGB LEDs, 4 Pmod connectors, shield connector
