Product description

Why Zynq SoC Technology?

Zynq products are an ideal entry point for either users coming from either FPGA-dominate skill set wishing to learn or use processors or programmers who wish to learn how to create custom hardware.

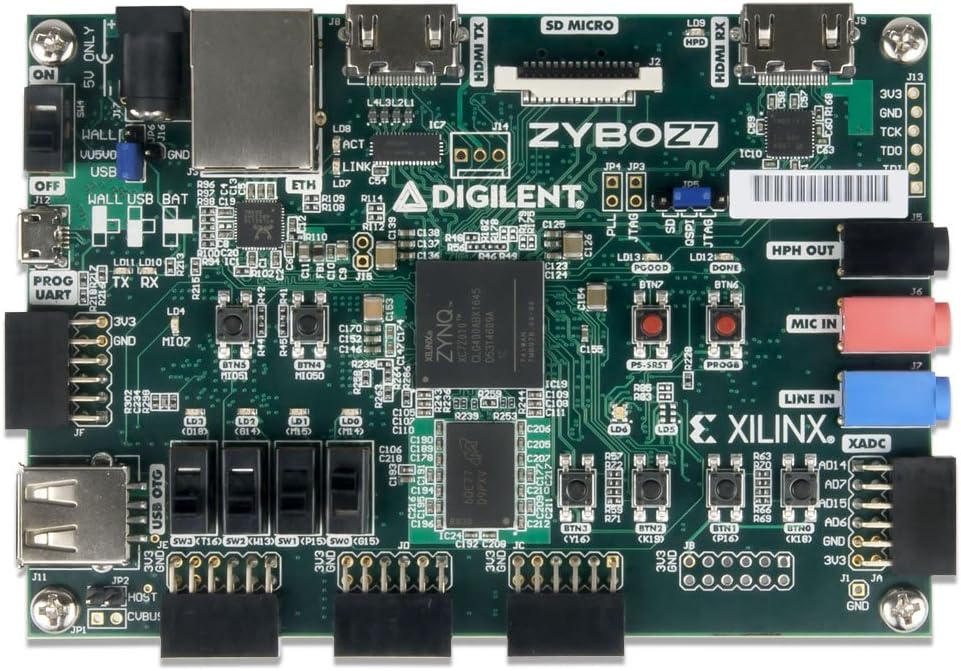

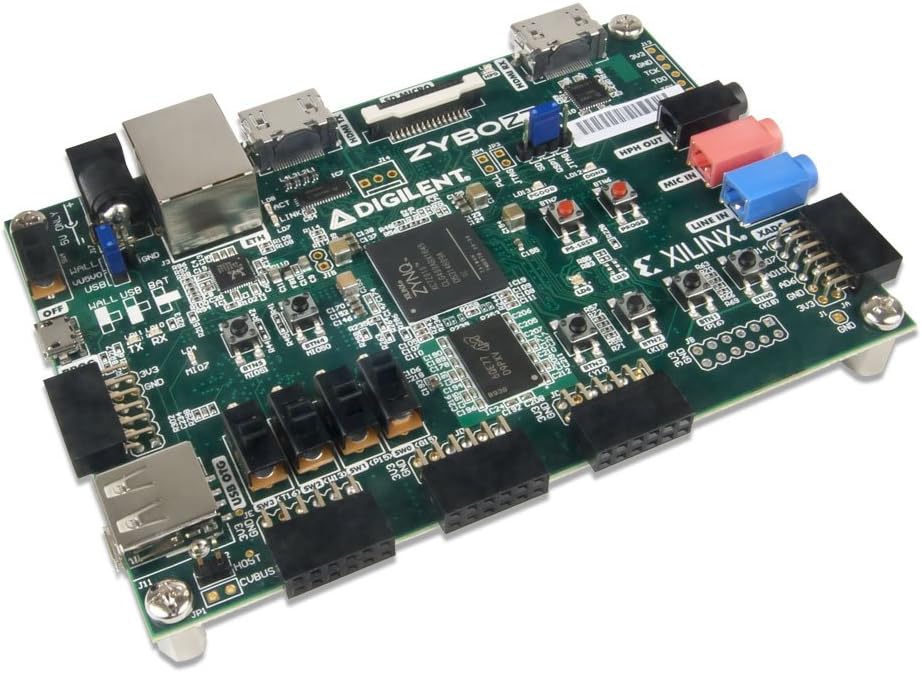

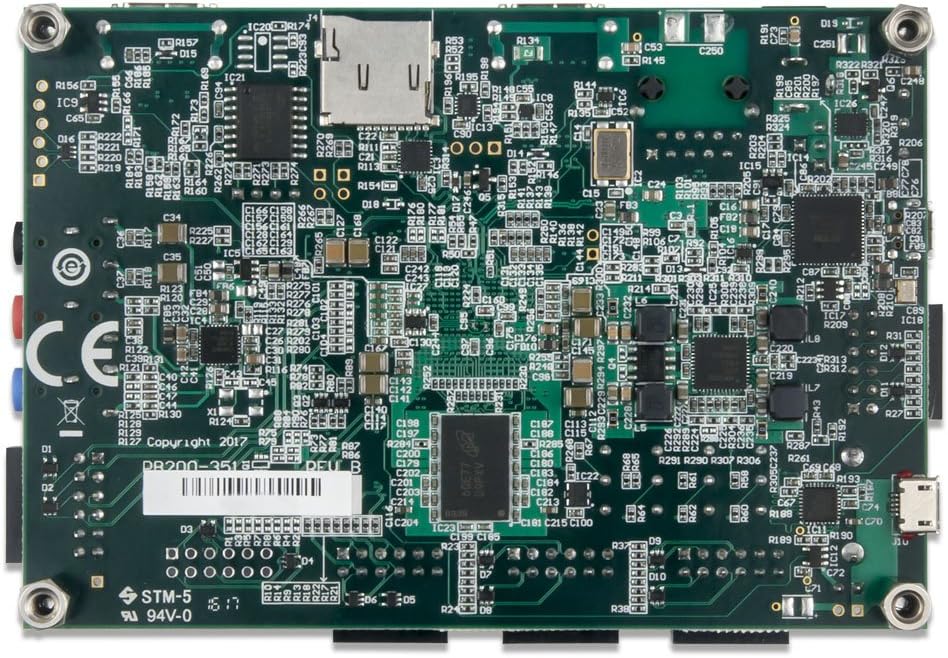

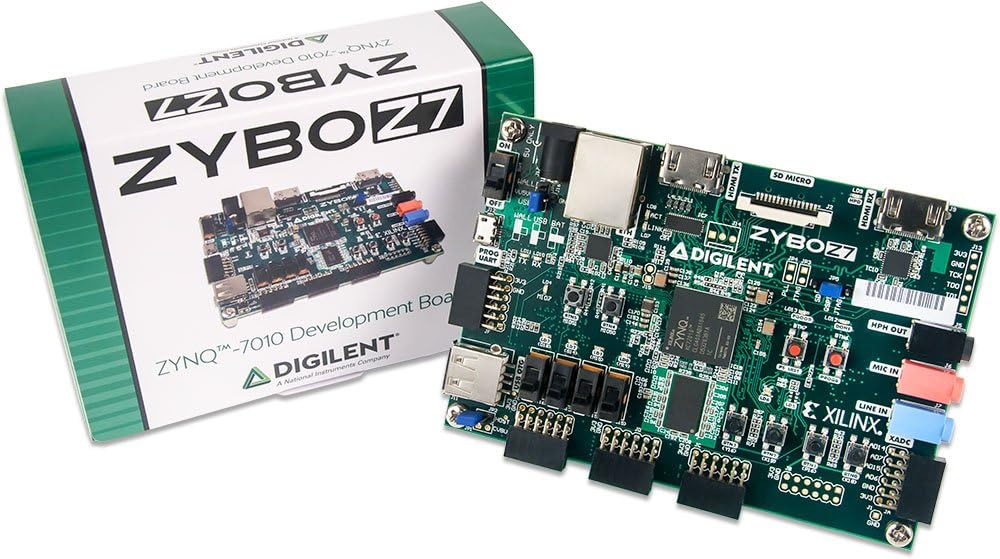

Zybo Z7: All-purpose Zynq (APSoC) development board for flexible hardware programmability

The Zybo Z7 is the ideal starting point for designers who want to leverage the best of FPGA and processor development. With Xilinx’s Zynq-7000 technology, the Zybo Z7 features multimedia and connectivity peripherals that allow designers to transform the Zybo Z7 into a formidable single-board computer to fit into a variety of design requirements.

The Zybo Z7's video-capable feature set includes a MIPI CSI-2 compatible Pcam connector, HDMI input & output, and high DDR3L.

Comes in two versions, a 7010 and 7020 version. Both versions feature 1 GB DDR3L with 32-bit bus @ 1066 MHz​

Wide range of USB, Ethernet, Video, and Audio connectivity​

Pmod connectors for adding-on hardware devices​

Pcam connector for attaching camera sensors with MIPI CSI-2 interface

Pmod connectors for adding-on hardware devices​

Attaching additional hardware is made easy by the Zybo Z7's Pmod connectors, allowing access to Digilent's catalog of over 70 Pmod peripheral boards, including motor controllers, sensors, displays, and more.

Pcam connector for attaching camera sensors with MIPI CSI-2 interface, such as the Digilent Pcam module. ​

Digilent has demonstration projects and add-ons to help designers get acquainted and ready to use the Pcam and Zybo Z7 for quick and easy Embedded Vision familiarity.

Onboard programming circuit accessible over USB Mini (cable not included). Designers who use the Zybo Z7 for prototyping and wish to design their own hardware can purchase the JTAG SMT3 for their own hardware designs.

Zynq Processor

667 MHz dual-core Cortex-A9 processor​DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports​High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO​Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C​Programmable from JTAG, Quad-SPI flash, and microSD card​Programmable logic equivalent to Artix-7 FPGA Memory and Power

1 GB DDR3L with 32-bit bus @ 1066 MHz​16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64 compatible identifier​microSD slot USB, Ethernet, Audio, and Video

Powered from USB or any 5V external power source Gigabit Ethernet PHY​USB-JTAG Programming circuitry​USB-UART bridge​USB 2.0 OTG PHY with host and device supportPcam camera connector with MIPI CSI-2 support​HDMI sink port (input) with CEC (Zybo Z7-20) and without CEC (Zybo Z7-10)​HDMI source port (output) with CEC​Audio codec with stereo headphone, stereo line-in, and microphone jacks

Switches, Push-buttons, LEDs, and Expansion Connectors 6 push-buttons (2 processor connected) 4 slide switches 5 LEDs (1 processor connected) 2 RGB LEDs (Zybo Z7-20) and 1 RGB LED (Zybo Z7-10) 6 Pmod ports (Zybo Z7-20) and 5 Pmod Ports (Zybo Z7-10) 8 Total Processor I/O 40 Total FPGA I/O (Zybo Z7-20) and 32 (Zybo Z7-10) 4 Analog capable 0-1.0V differential pairs to XADC

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 30

4.4 out of 5 stars 30

5.0 out of 5 stars 8

—

4.2 out of 5 stars 5

Price

$341.71$341.71
— no data
$430.18$430.18
— no data

— no data

IC
XC7Z010-1CLG400C XC7Z020-1CLG400C XC7Z010-1CLG400C XC7Z020-1CLG400C XC7Z020-1CSG484CES

Total Pmod Ports
5 6 2 2 5

FMC Connector
No No No No Yes

HDMI
TX Port only TX and RX Ports TX and RX Ports TX and RX Ports TX Port

RGB LEDs
1 RGB and 5 LED 2 RGB and 5 LED 2 RGB and 4 LED 2 RGB and 4 LED 9 LEDs

Switches
6 buttons, 4 Switches 6 buttons, 4 Switches 2 buttons, 2 Switches 2 buttons, 2 Switches 7 buttons, 8 Switches

DDR3
1GB 1GB 512 MB 512 MB 512 MB

Quad-SPI Flash
16 MB 16 MB 16 MB 16 MB 256 MB

Audio Codec
SSM2603 SSM2603 PWM driven​ PWM driven​ ADU1761​

Video I/O
HDMI in and out HDMI in and out HDMI in and out HDMI in and out HDMI, VGA, 128x32 OLED Display

Zybo Z7 comes in two APSoC variants: Zybo Z7-10 features Xilinx XC7Z010-1CLG400C. Zybo Z7-20 features the larger Xilinx XC7Z020-1CLG400C. Either variant also has the option to add the SDSoC voucher.
A feature-rich, ready-to-use embedded software and digital circuit development board with a rich set of multimedia and connectivity peripherals to create a formidable single-board computer
Built around the Xilinx Zynq-7000 AP SoC, with 650MHz dual-core Cortex-A9 processor and DDR3 memory controller with 8 DMA channels
On board user interfaces include 6 push buttons, 4 slide switches, 5 LEDs, 2 RGB LEDs, and more
Expansion opportunities with six Pmod connector ports, over 30 FPGA I/O, four Analog capable 0-1.0V differential pairs to XADC, and more
