PJRC Teensy 4.1 ARM Cortex-M7 NXP iMXRT1062 Microcontroller Development Board + Ethernet Kit
$44.45
OVERVIEW
PJRC Teensy 4.1 ARM Cortex-M7 NXP iMXRT1062 Microcontroller Development Board + Ethernet Kit
PJRC
Price:
$44.45
$44.45
(as of Dec 14, 2025 17:50:59 UTC –
Details
)
Rating: 4.5 / 5
Categories: Electronics > Computers & Accessories > Computer Components > Single Board Computers
ASIN: B08RSCFBNF
Categories: Electronics > Computers & Accessories > Computer Components > Single Board Computers
ASIN: B08RSCFBNF
What customers are saying
Product overview

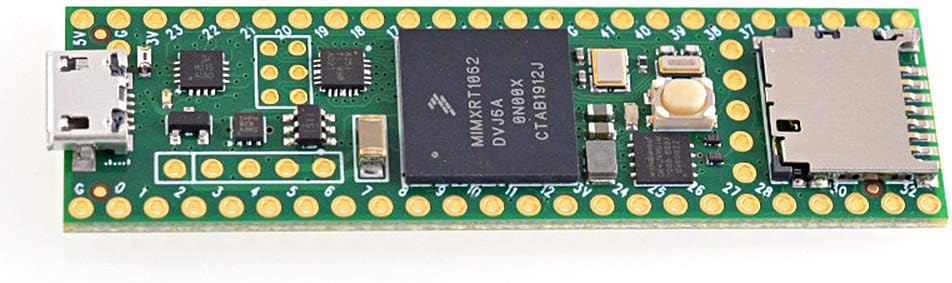

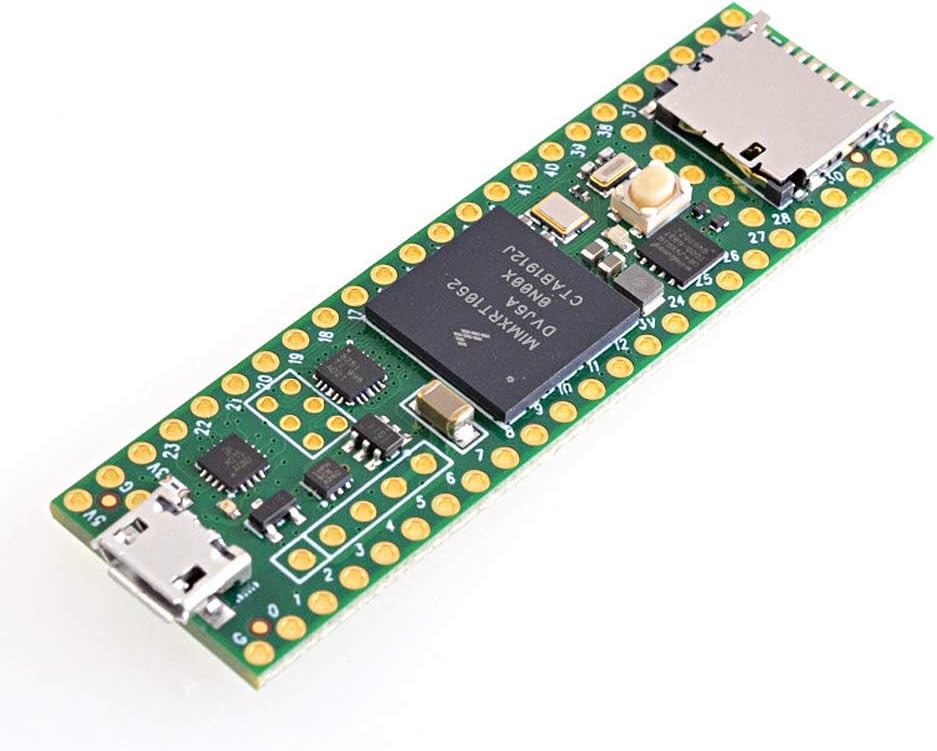

Teensy 4.1 is the latest Teensy microcontroller development board from PJRC. It features an ARM Cortex-M7 IMXRT1062 processor at 600 MHz. The actual size is 2.4 by 0.7 inch, the same form-factor as Teensy 3.6.

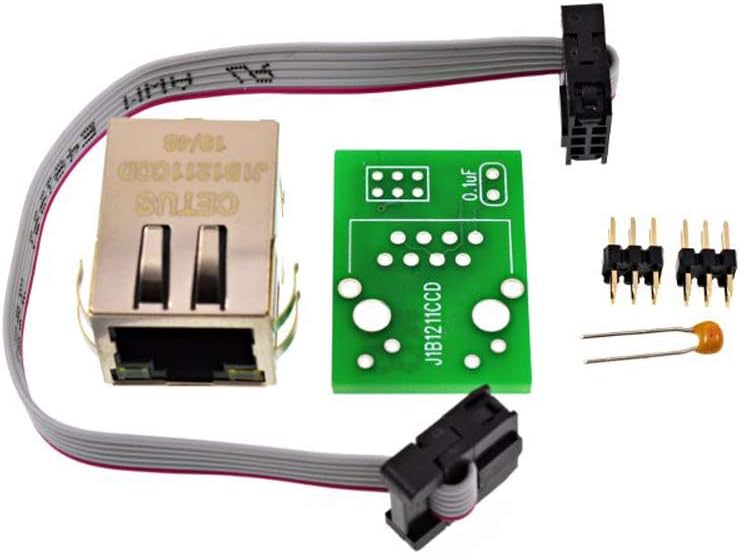

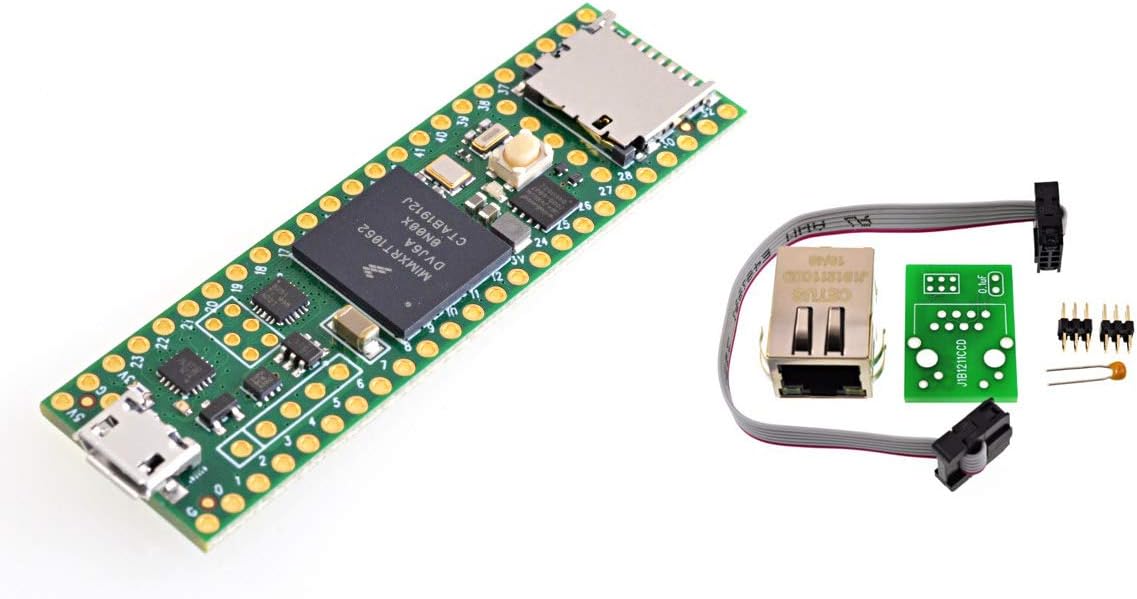

This kit includes the Teensy 4.1 Microcontroller board with a Teensy 4.1 Ethernet Kit. This kit has all the parts needed to connect to the Ethernet port on the Teensy 4.1. It includes an Ethernet MagJack, bare circuit board, ribbon cable assembly, 2 header pins, and a capacitor. DIY soldering is required to assemble the kit (the Teensy 4.1 board is fully assembled and tested).

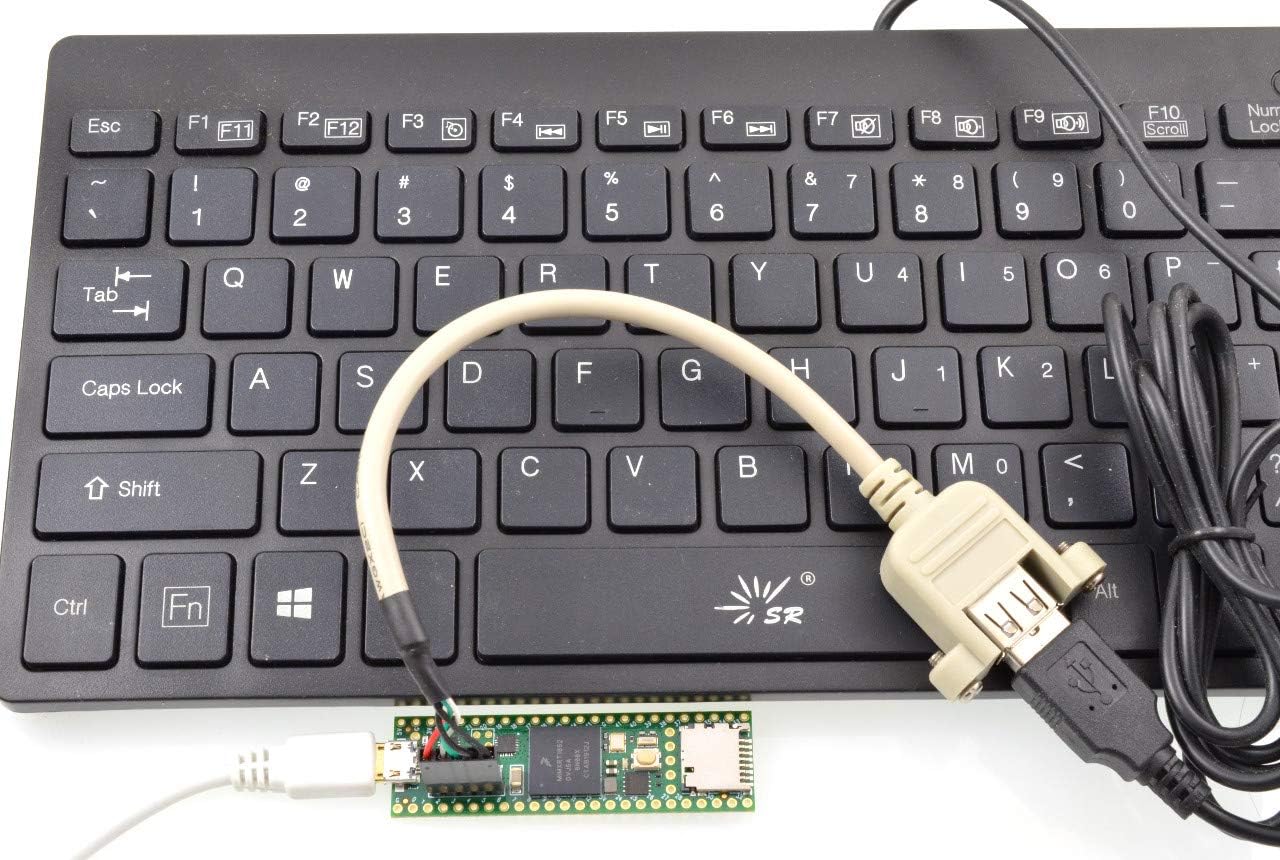

Teensy 4.1 uses the same processor as Teensy 4.0, but provides greater I/O capability, including an ethernet PHY, SD card socket, and USB host port. Teensy 4.1 also comes with 4X larger flash memory, and has 2 locations to optionally add more memory.
Teensy 4.1 & 4.0 use the same IMXRT1062, so most technical specifications are the same.
ARM Cortex-M7 IMXRT1062 processor at 600 MHz, 1024K RAM (512K is tightly coupled) 8192K Flash (64K reserved for recovery & EEPROM emulation)
Kit includes the Teensy 4.1 Ethernet Kit to connect to Ethernet
35 PWM Pins, 18 Analog Inputs, 8 Serial Ports, SPI, I2C, I2S,CAN Bus, IR modulator I2S (for high quality audio interface)
2.4 by 0.7 inch form factor, same as Teensy 3.6
This kit includes the Teensy 4.1 Microcontroller board with a Teensy 4.1 Ethernet Kit. This kit has all the parts needed to connect to the Ethernet port on the Teensy 4.1. It includes an Ethernet MagJack, bare circuit board, ribbon cable assembly, 2 header pins, and a capacitor. DIY soldering is required to assemble the kit (the Teensy 4.1 board is fully assembled and tested).
Teensy 4.1 uses the same processor as Teensy 4.0, but provides greater I/O capability, including an ethernet PHY, SD card socket, and USB host port. Teensy 4.1 also comes with 4X larger flash memory, and has 2 locations to optionally add more memory.
Teensy 4.1 & 4.0 use the same IMXRT1062, so most technical specifications are the same.
ARM Cortex-M7 IMXRT1062 processor at 600 MHz, 1024K RAM (512K is tightly coupled) 8192K Flash (64K reserved for recovery & EEPROM emulation)
Kit includes the Teensy 4.1 Ethernet Kit to connect to Ethernet
35 PWM Pins, 18 Analog Inputs, 8 Serial Ports, SPI, I2C, I2S,CAN Bus, IR modulator I2S (for high quality audio interface)
2.4 by 0.7 inch form factor, same as Teensy 3.6
