Terminal Block Breakout Board Module for Teensy 4.1, Screw Mount Version
$23.90
OVERVIEW
Terminal Block Breakout Board Module for Teensy 4.1, Screw Mount Version
OONO
Price:
$23.90
$23.90
(as of Feb 15, 2026 22:56:18 UTC –
Details
)
Rating: 4.5 / 5
Categories: Industrial & Scientific > Industrial Electrical > Wiring & Connecting > Terminal Blocks > Ground Circuit Terminal Blocks
ASIN: B08R7P8G9X
Categories: Industrial & Scientific > Industrial Electrical > Wiring & Connecting > Terminal Blocks > Ground Circuit Terminal Blocks
ASIN: B08R7P8G9X
What customers are saying
Product overview

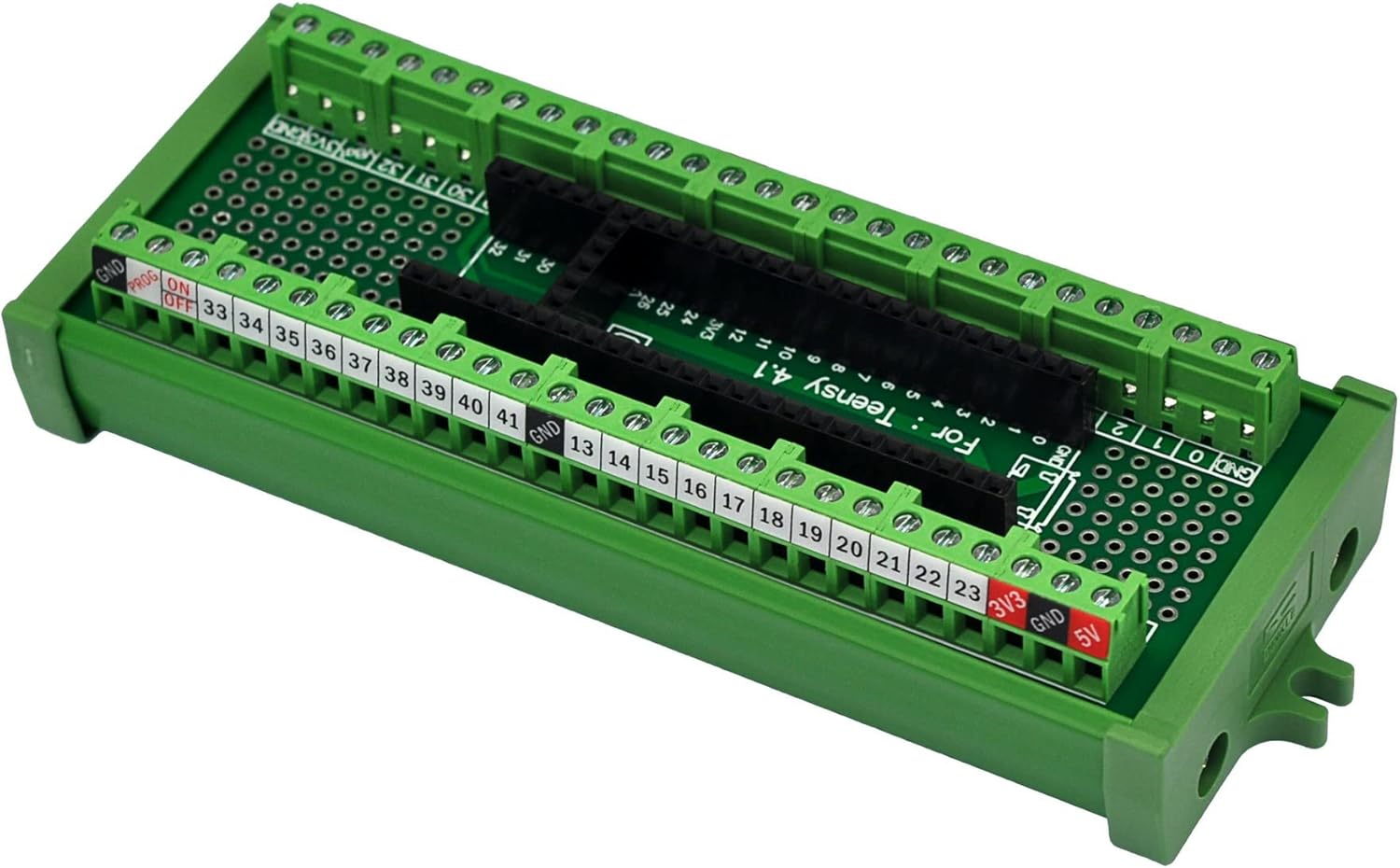

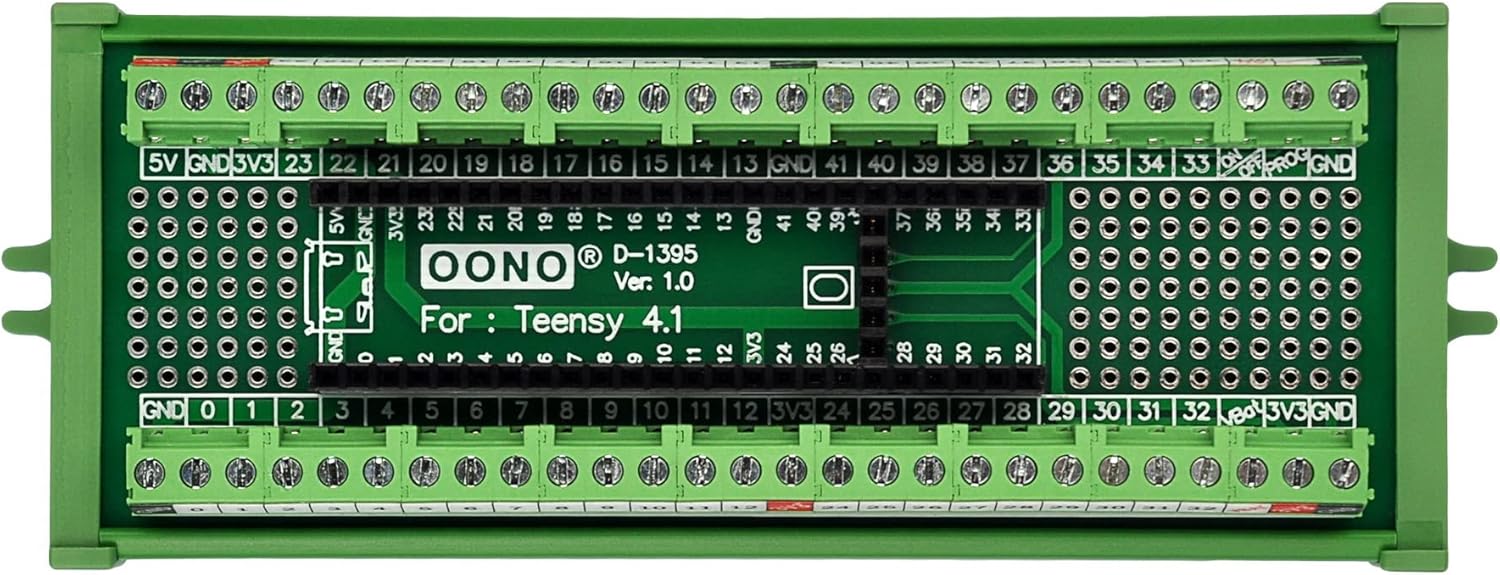

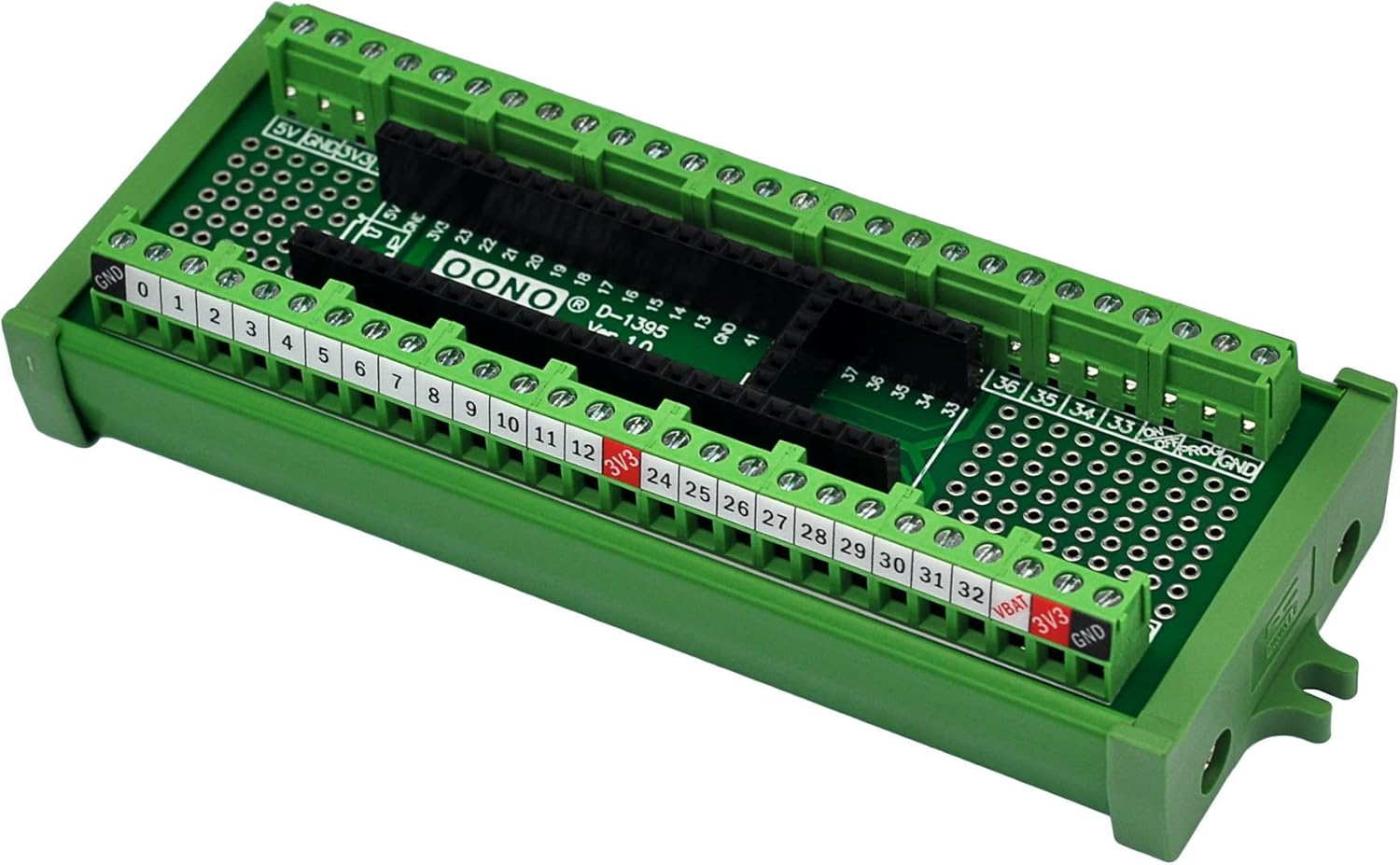

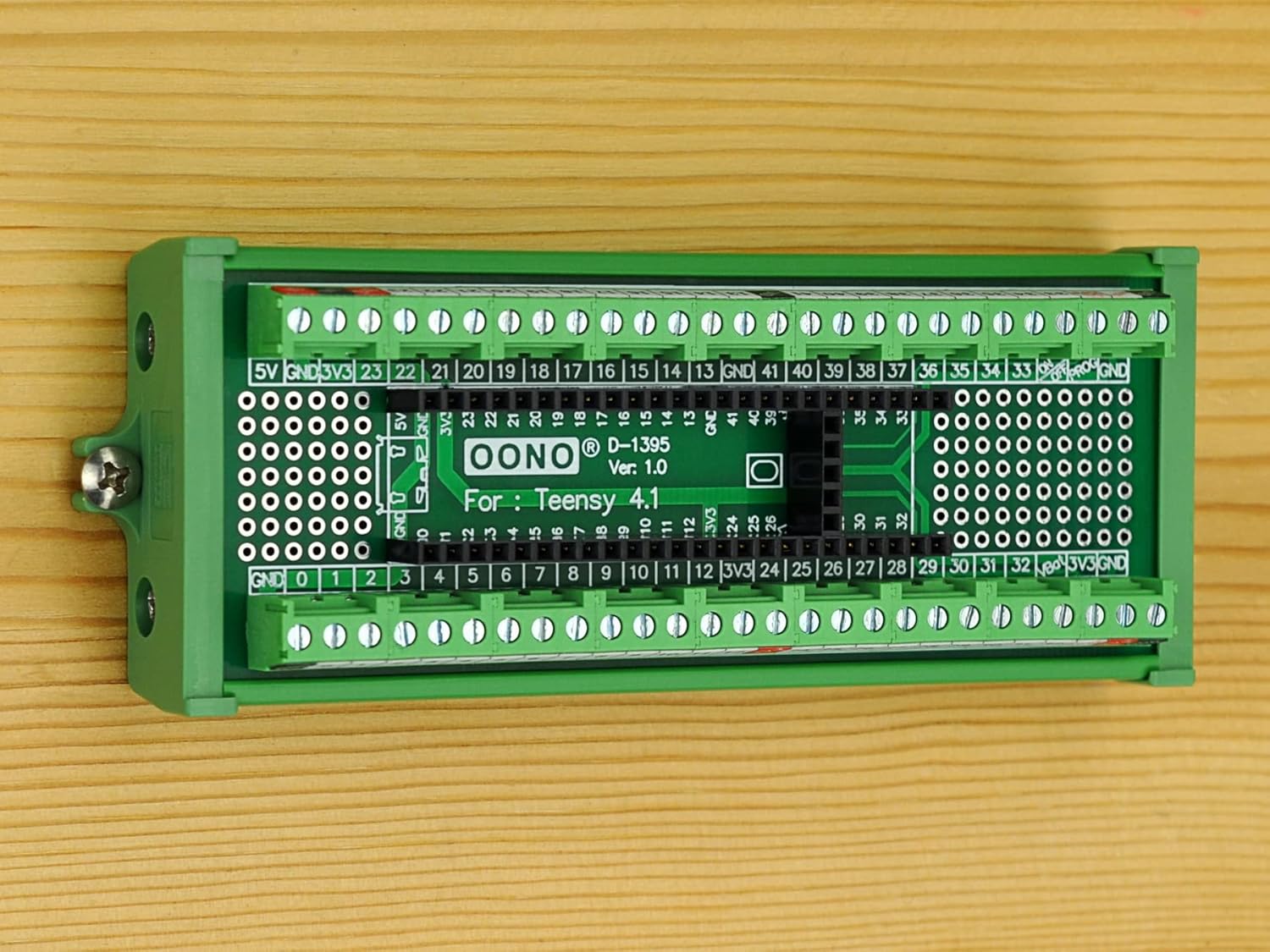

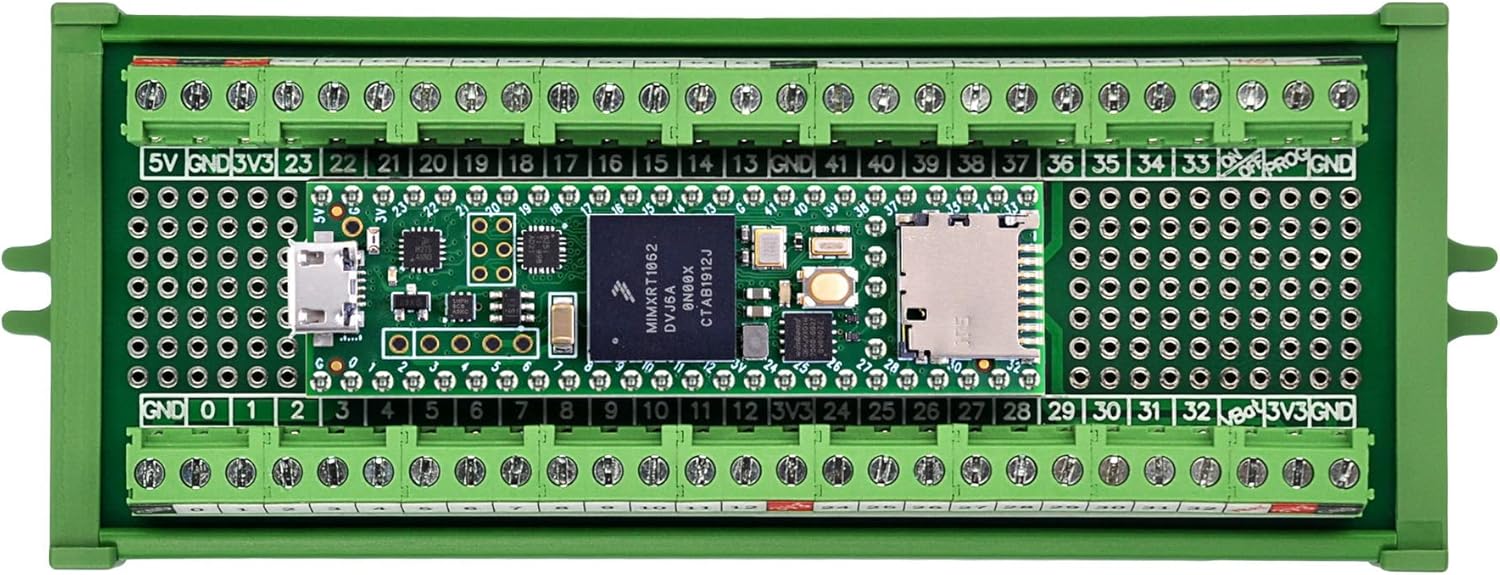

Terminal Block Breakout Board Module for Teensy 4.1, Screw Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.

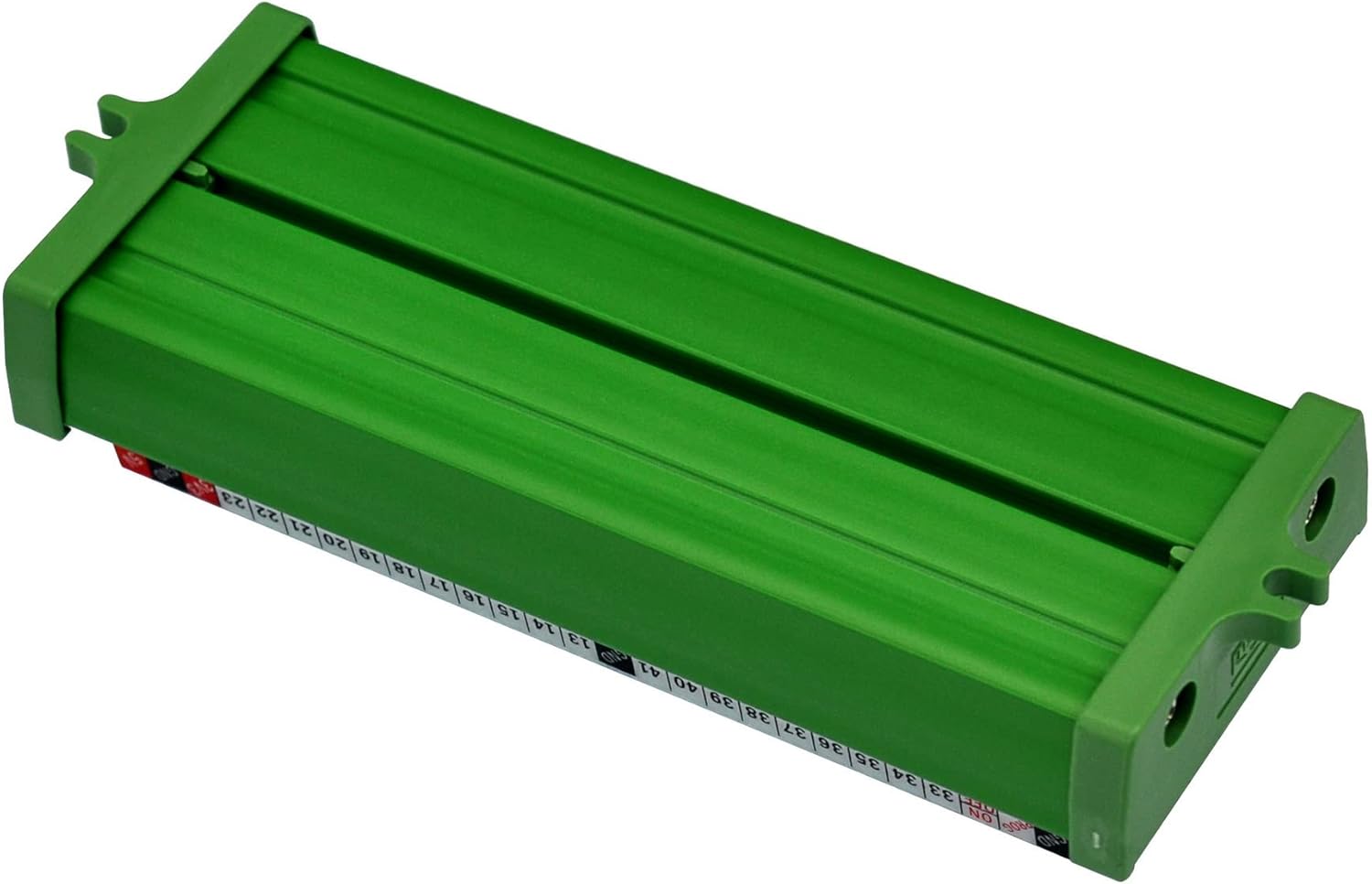

FR-4 fiberglass dual copper layers PCB. Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier).

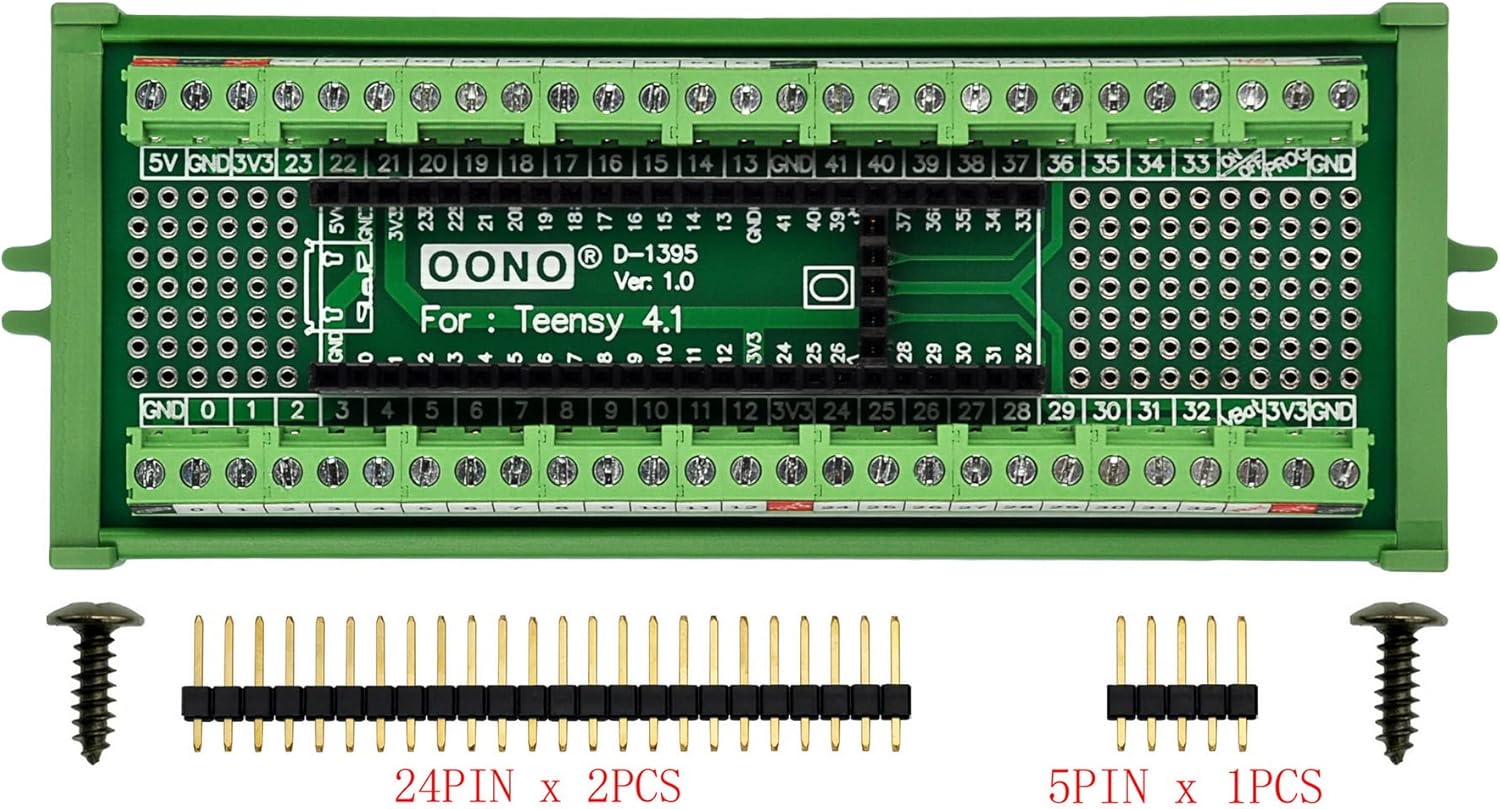

Packing list: 1x Breakout board module, 2x M3x10mm wood screws, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Terminal Block Breakout Board Module for Teensy 4.1, Screw Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier).
Packing list: 1x Breakout board module, 2x M3x10mm wood screws, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier).
Packing list: 1x Breakout board module, 2x M3x10mm wood screws, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Terminal Block Breakout Board Module for Teensy 4.1, Screw Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiberglass dual copper layers PCB. Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier).
Packing list: 1x Breakout board module, 2x M3x10mm wood screws, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
Technical details
| Item Pitch | 3.81 Millimeters |
|---|---|
| Gauge | 16.0 |
| Connector Type | Screw |
| Number Of Contacts | 112 |
| Mounting Type | PCB Mount |
| Material | Nylon |
| Color | Green |
| Brand | OONO |
| Number Of Poles | 112 |
| Centerline Length | 5 Millimeters |
| Manufacturer | CZH-LABS |
| Global Trade Identification Number | 06954525591755 |
| Package Dimensions | 5.79 x 3.39 x 1.34 inches |
| Item Weight | 4.2 ounces |
| ASIN | B08R7P8G9X |
| Item model number | D-1389 to D-1395 Series |
| Customer Reviews |
4.7 out of 5 stars |
| Best Sellers Rank |
|
| Is Discontinued By Manufacturer | No |
| Date First Available | March 10, 2016 |
