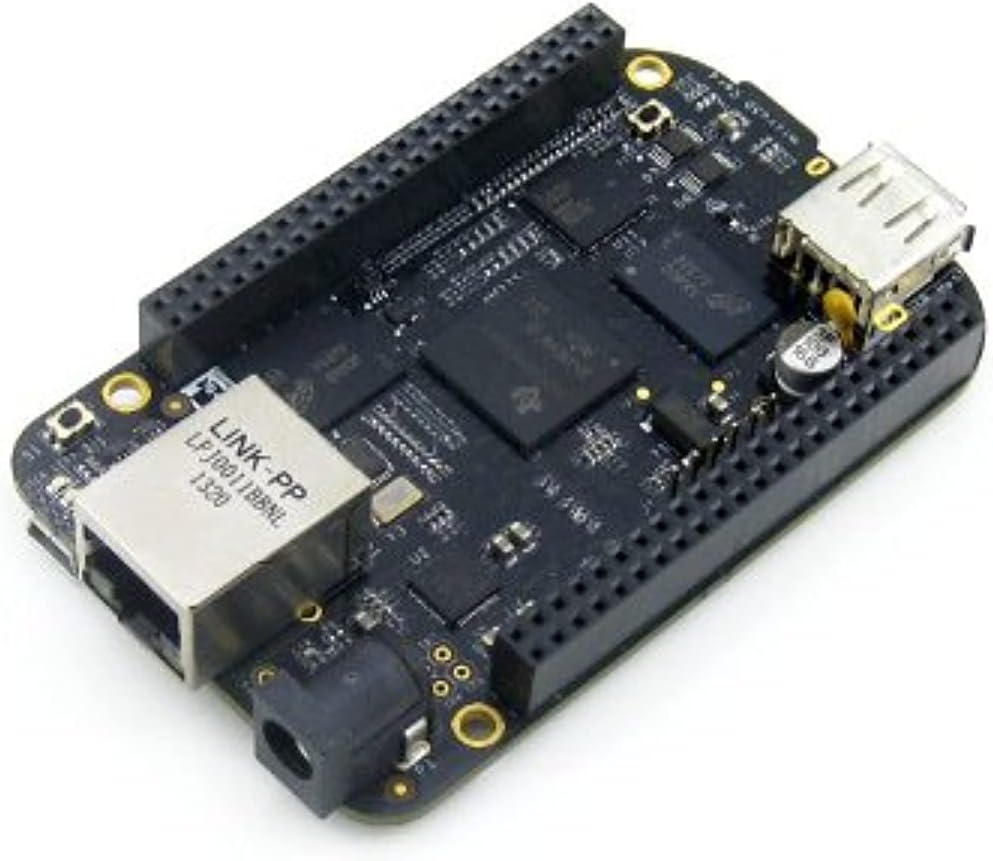

Home Core Cognition waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14
waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14

waveshare BeagleBone Black Rev C 1GHz ARM Cortex-A8 512MB DDR3 4GB 8bit eMMC Board Mini PC Development Board from Element14

$83.99
SKU: B00KM6YTN6

OVERVIEW

Price: $83.99
(as of Oct 19, 2025 12:02:53 UTC - Details)

Technical Details

Collapse all

Summary
Standing screen display size ‎7 Inches
Processor ‎1 GHz cortex
RAM ‎512 MB DDR3
Memory Speed ‎1000 MHz
Hard Drive ‎Embedded MultiMediaCard
Wireless Type ‎Bluetooth

Other Technical Details
Brand ‎waveshare
Series ‎BeagleBone Rev C
Item model number ‎BB Black
Operating System ‎Debian Linux
Item Weight ‎0.353 ounces
Product Dimensions ‎7.09 x 3.94 x 3.54 inches
Item Dimensions LxWxH ‎7.09 x 3.94 x 3.54 inches
Processor Brand ‎ARM
Number of Processors ‎1
Computer Memory Type ‎SDRAM
Manufacturer ‎Waveshare
ASIN ‎B00KM6YTN6
Is Discontinued By Manufacturer ‎No
Date First Available ‎May 28, 2014

Additional Information

Customer Reviews

4.2 out of 5 stars

31 ratings

4.2 out of 5 stars

Best Sellers Rank

Warranty & Support

Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is "dead on arrival," arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test "dead on arrival" returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

Product Warranty: For warranty information about this product, please click here

Product description

Overview

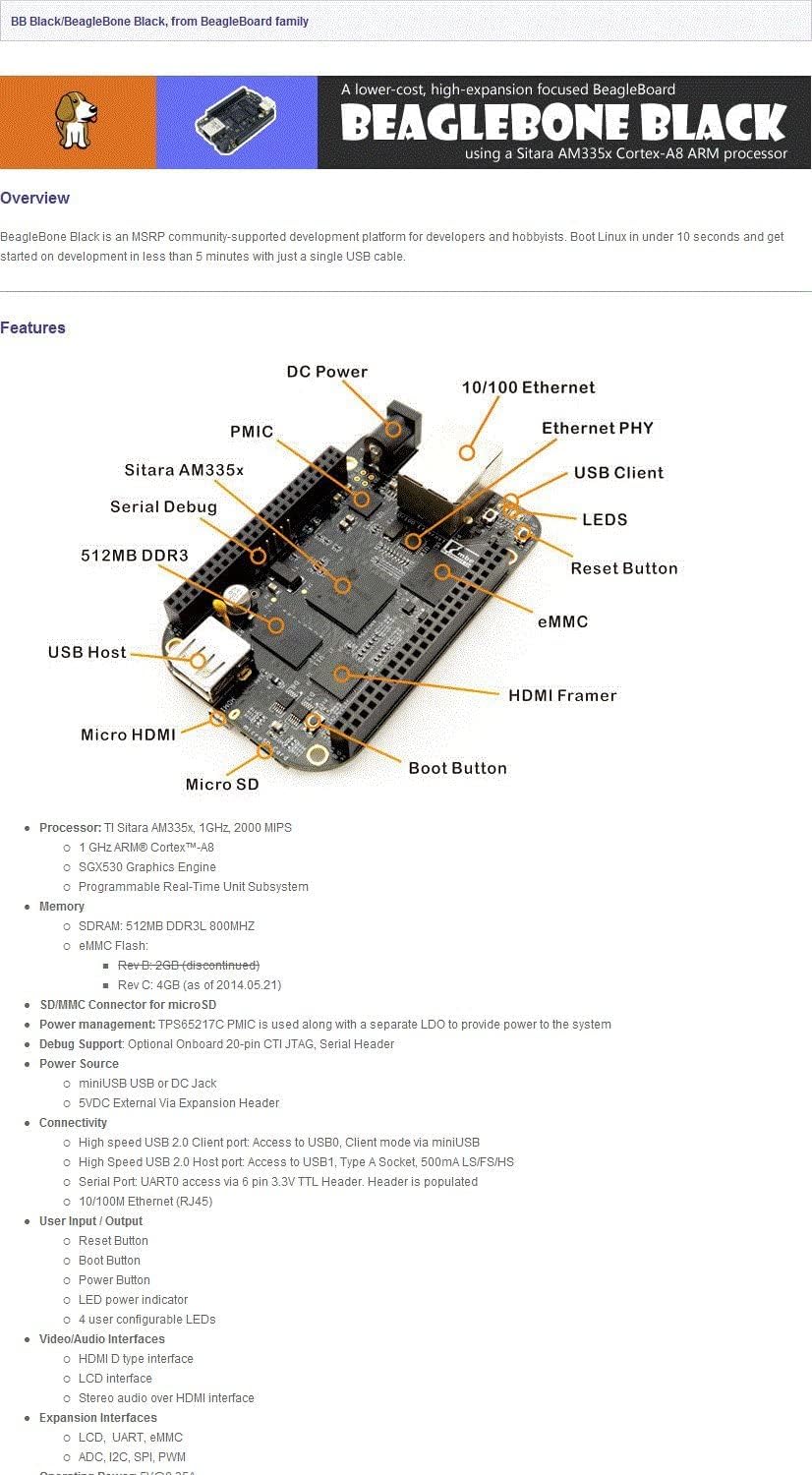

BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.

OverviewOverview

Processor: TI Sitara AM335x, 1GHz, 2000 MIPS

1 GHz ARM Cortex -A8SGX530 Graphics EngineProgrammable Real-Time Unit Subsystem

MemorySDRAM: 512MB DDR3L 800MHZ

eMMC Flash:Rev B: 2GB (discontinued)Rev C: 4GB (as of 2014.05.21)

SD/MMC Connector for microSD

Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system

Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header

Power Source

miniUSB USB or DC Jack5VDC External Via Expansion Header

Connectivity

High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSBHigh Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HSSerial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated10/100M Ethernet (RJ45)

User Input / OutputReset Button

Boot ButtonPower ButtonLED power indicator4 user configurable LEDs

Video/Audio Interfaces

HDMI D type interfaceLCD interfaceStereo audio over HDMI interface

Expansion Interfaces

LCD, UART, eMMCADC, I2C, SPI, PWM

Operating Power: 5V 0.35A

Board Size: 3.4” x 2.1”

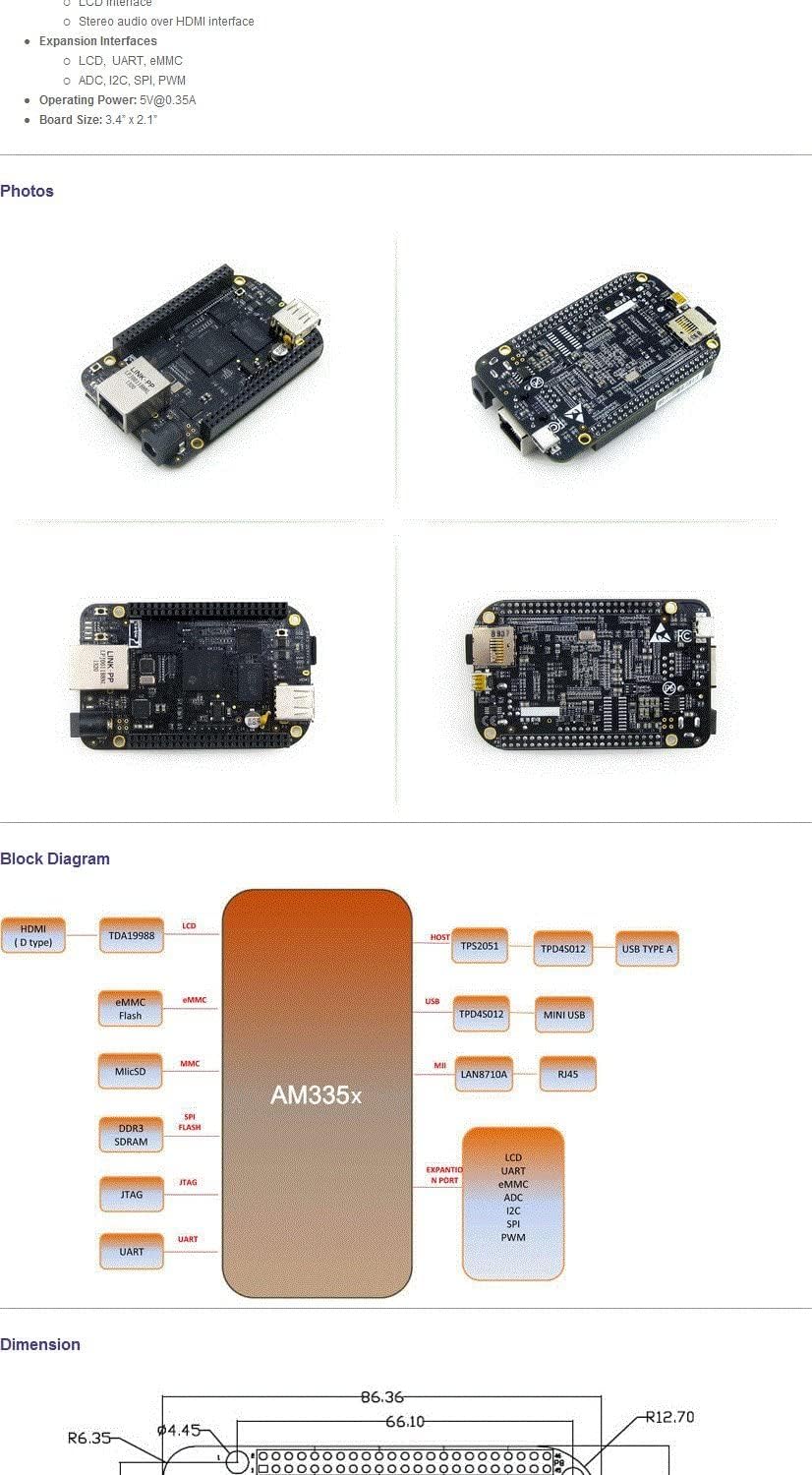

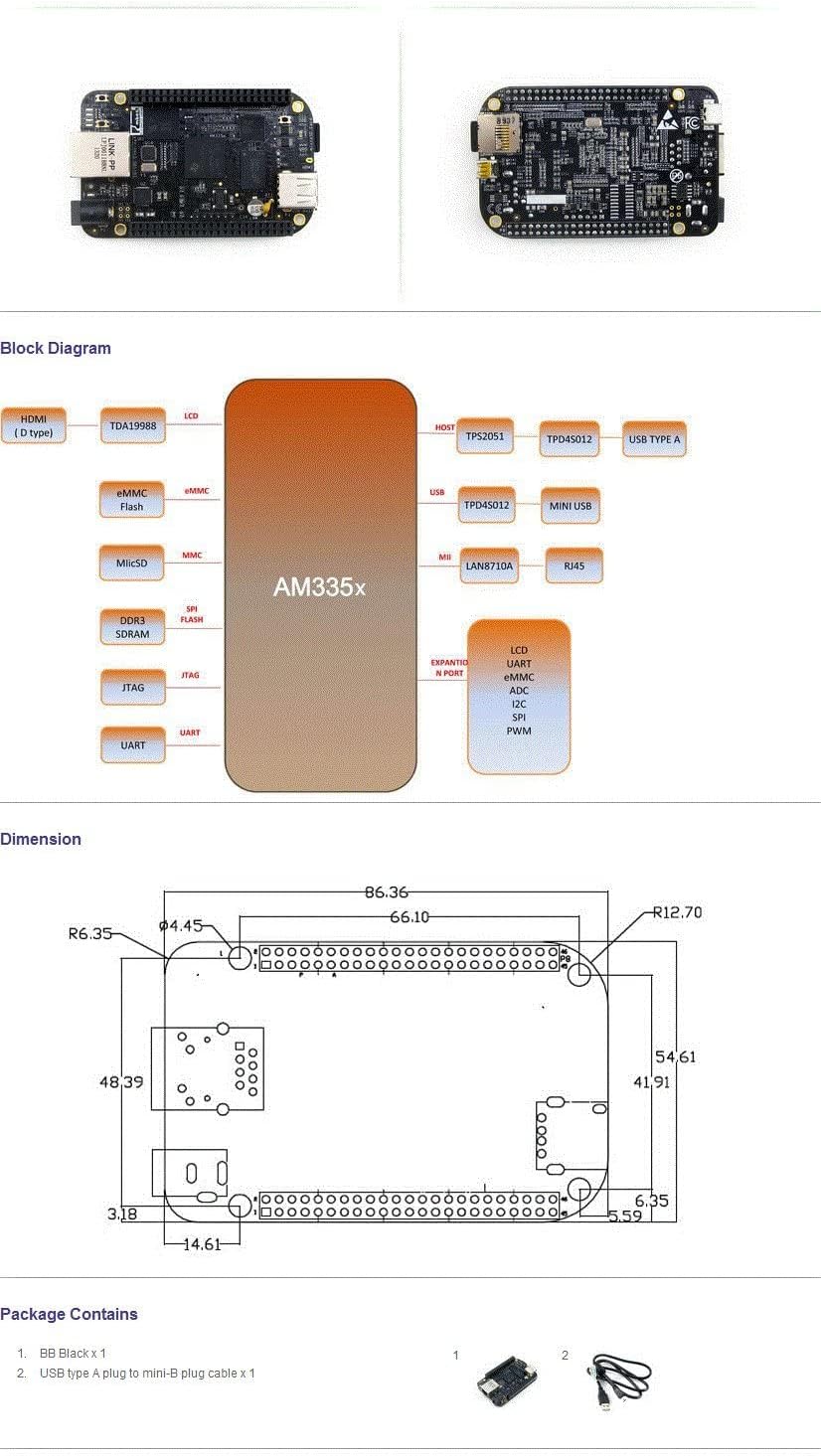

Block DiagramBlock Diagram

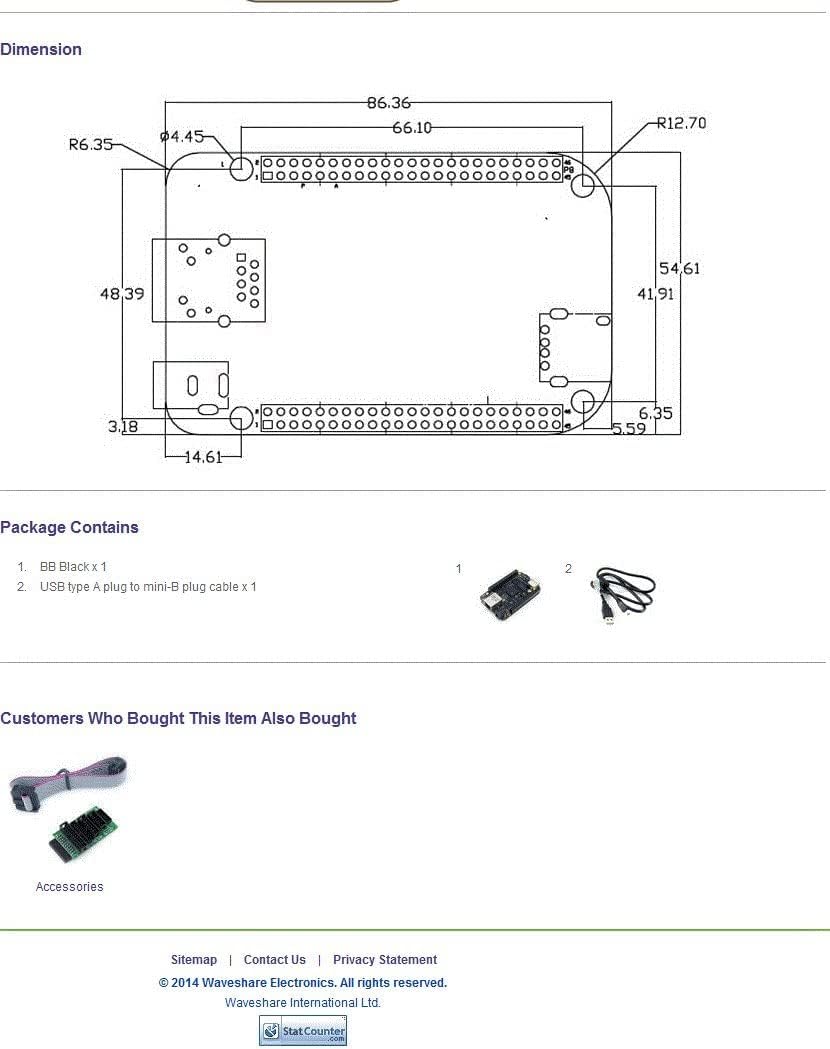

DimensionDimension

WIKI: waveshare.com/wiki/BB_Black?amazon

1 GHz ARM Cortex-A8
512MB DDR3 RAM
eMMC Flash:4GB
Rev C
Programmable Real-Time Unit Subsystem

Price: $83.99
(as of Oct 19, 2025 12:02:53 UTC - Details)
