$39.99
SKU: B0FGXGFRS6

OVERVIEW

ZYNQ 7000 FPGA Development Board PZ7010 PZ7020 Starlite XC7Z010 XC7Z020 DDR3 USB Ethernet HDMI JTAG for Embedded Linux and FPGA Learning (PZ7020-SL-C, FPGA Board)

SCFPGA

Price:
$39.99


(as of Dec 25, 2025 18:58:07 UTC –

Details
)


View this item on Amazon

Rating: 5 / 5
Categories: Electronics > Computers & Accessories > Computer Components > Single Board Computers
ASIN: B0FGXGFRS6

What customers are saying

Product overview

Product description

SDR Solution ProviderSDR Solution Provider

PZ7020-StarLite-CPZ7020-StarLite-C

PZ7010-StarLite-NCPZ7010-StarLite-NC

PZ7020-StarLite-CPZ7020-StarLite-C

PZ7020-StarLite-CPZ7020-StarLite-C

Features & Devices

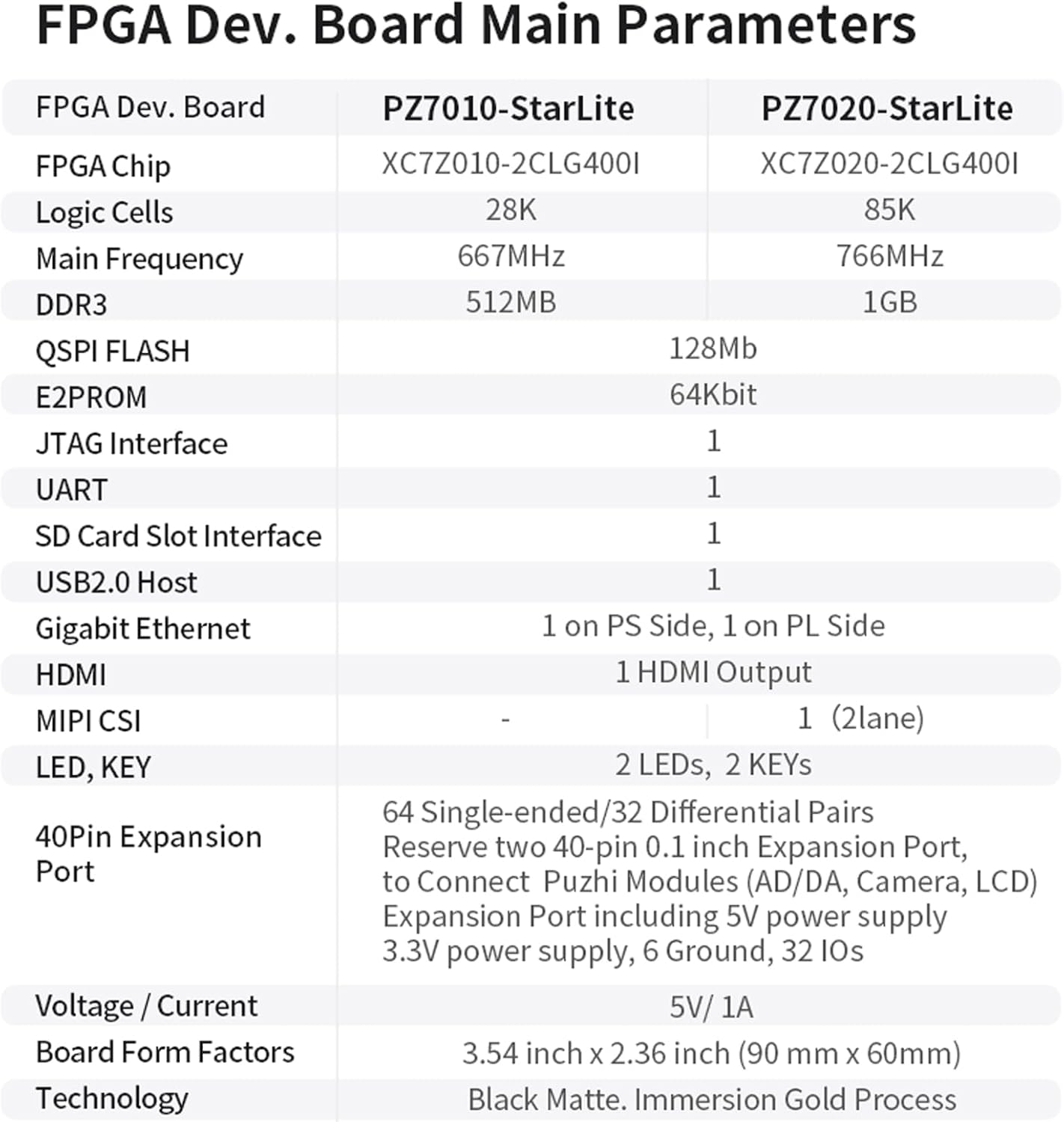

AMD Zynq 7000 XC7Z020-2CLG400I2 x DDR3 (1GB) on PS, 128Mb QSPI Flash on PS1 x USB2.0 Host (Type A) on PS1 x Gigabit Ethernet on PS1 x Gigabit Ethernet on PL1 x MPI CSI on PL1 x USB to JTAG (Type C) on PL2 x 40 Pin Expansion Port on PL1 x HDMI Output on PS

PZ7020-StarLite-CPZ7020-StarLite-C

PZ7020-StarLite-CPZ7020-StarLite-C

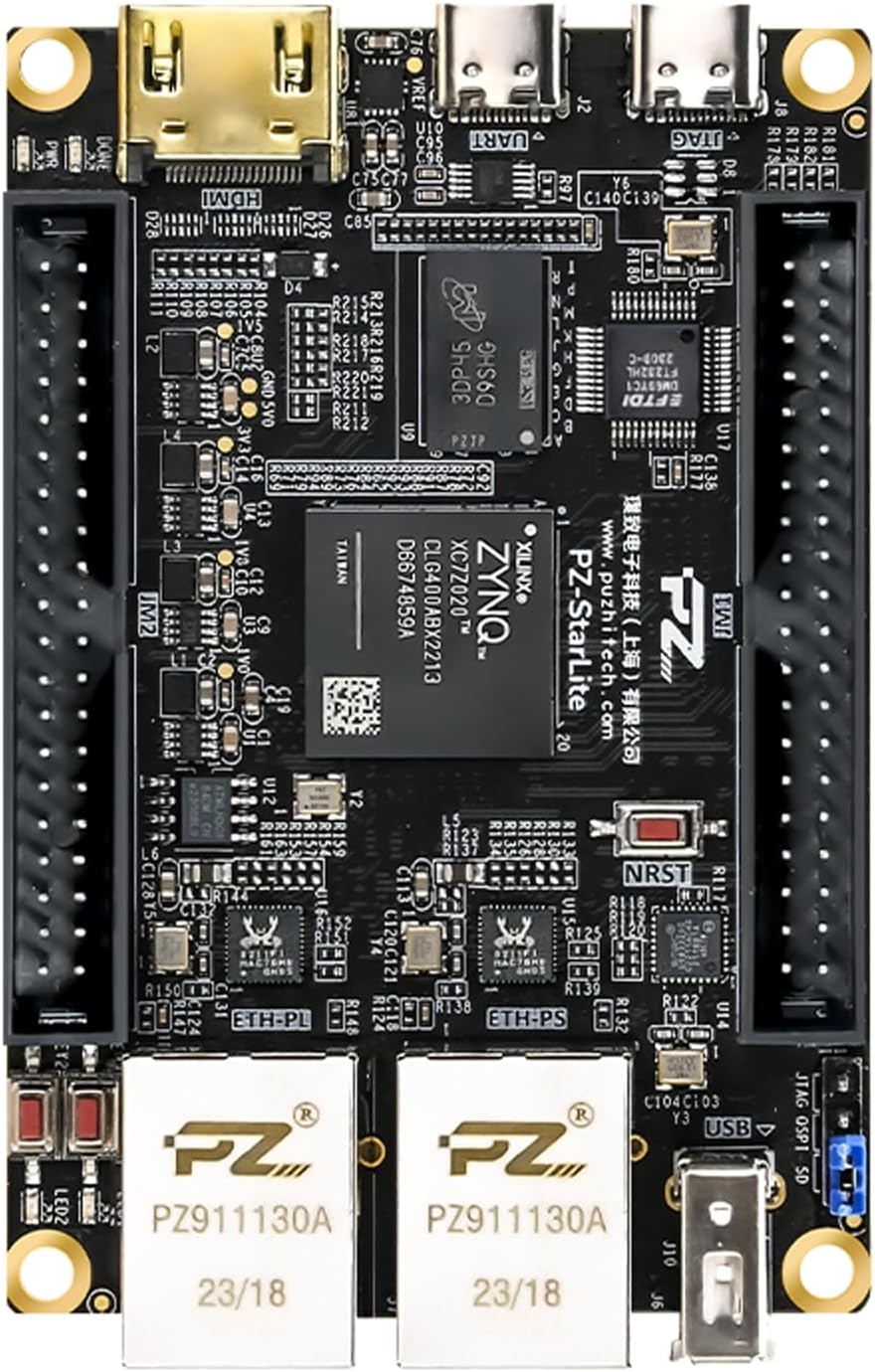

ZYNQ-7000 ARM+FPGA SoC: Powered by Xilinx ZYNQ XC7Z010/020 with dual-core ARM Cortex-A9 and programmable logic—ideal for embedded and FPGA development.

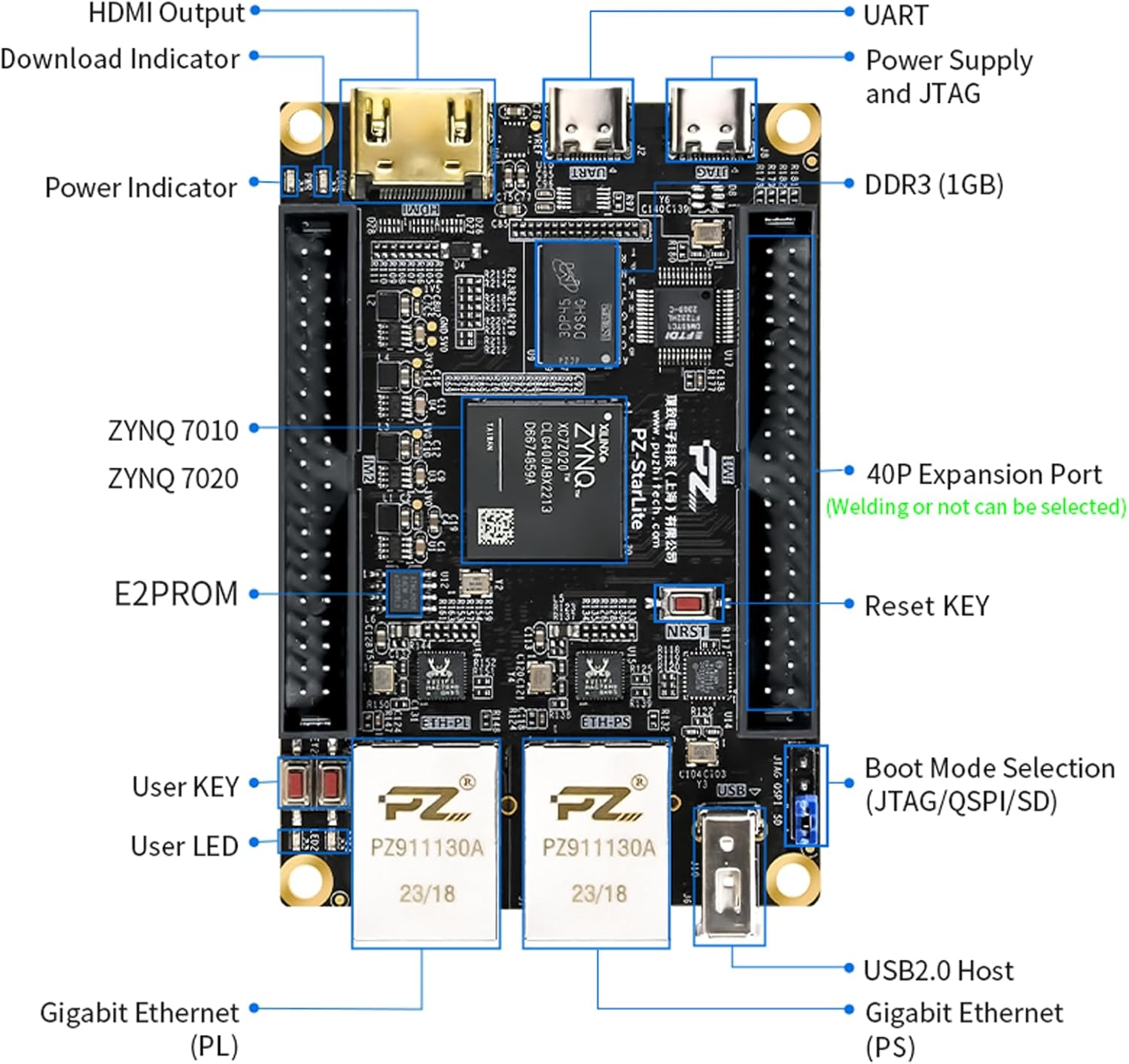

Integrated Interfaces for Versatile Applications: Features HDMI, USB 2.0 Host, UART, JTAG, Gigabit Ethernet (PS & PL), SD card, and 40-pin expansion for AD/DA, LCD, and camera modules.

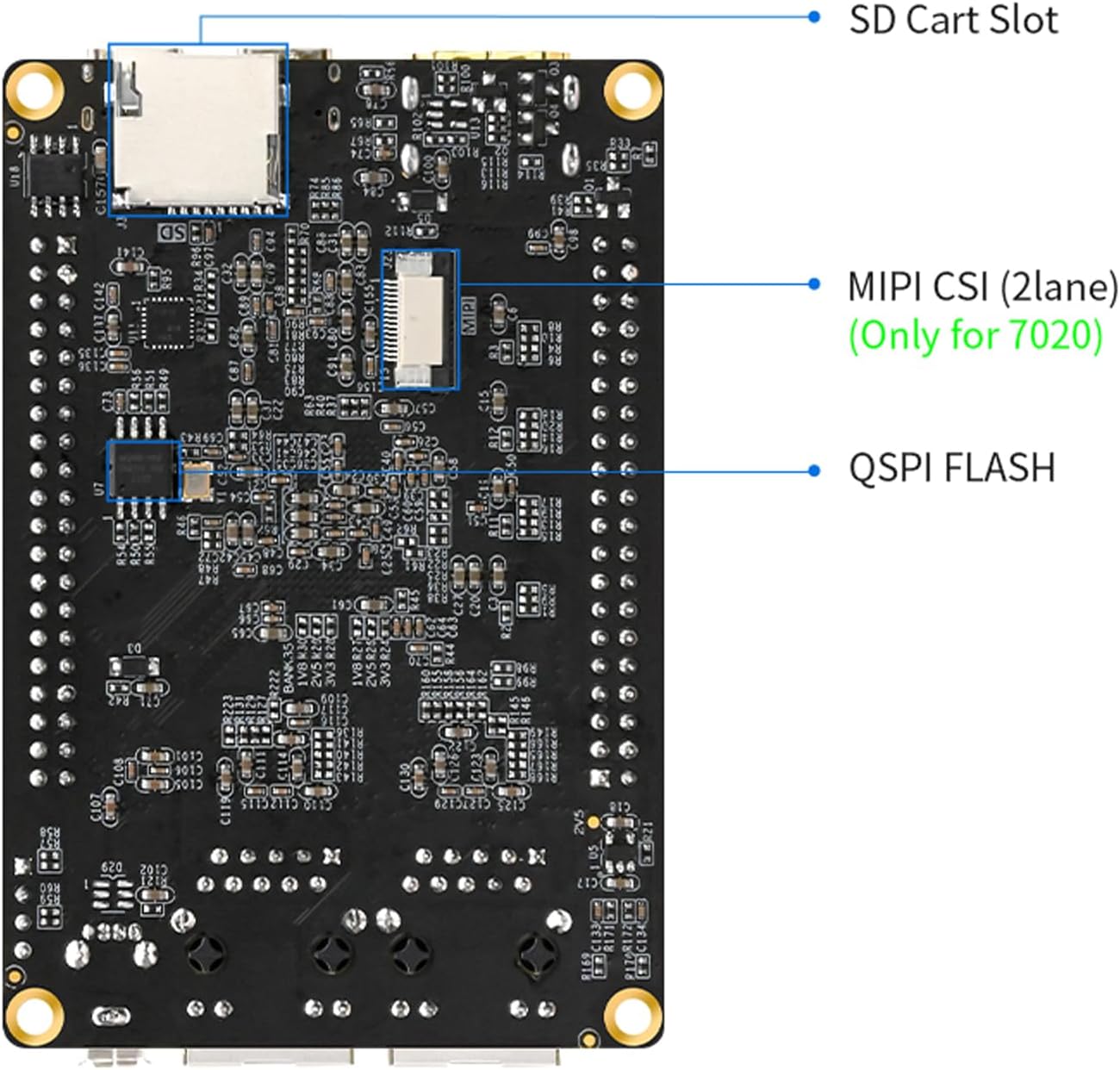

Robust Memory & Storage: Equipped with 512MB/1GB DDR3, 128Mb QSPI Flash, 64Kbit EEPROM, and boot selection via JTAG/QSPI/SD for flexible design setups.

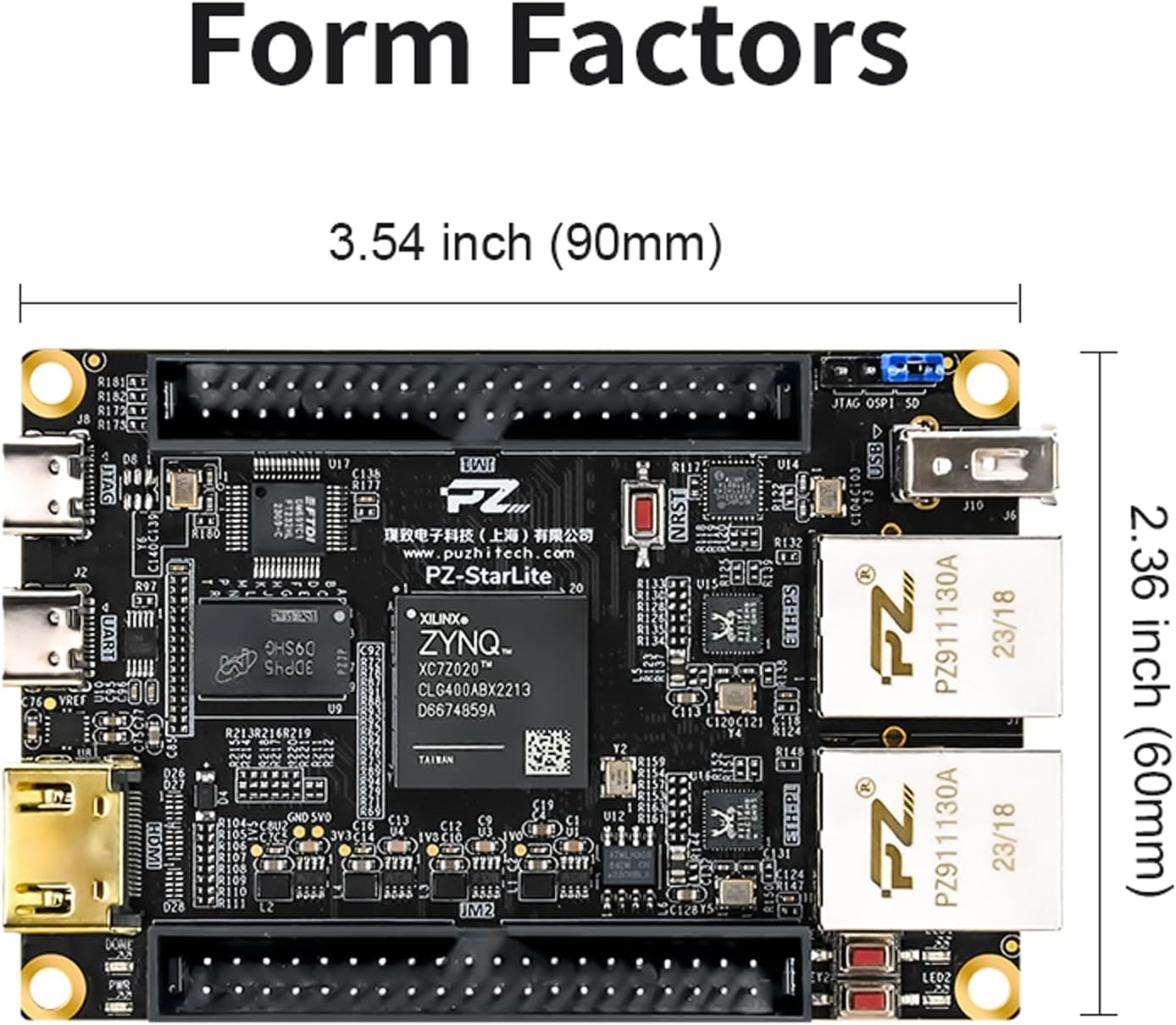

Industrial-Grade Design: Compact 90x60mm board with immersion gold finish, suitable for industrial environments. 5V/1A power input supports stable operation.
Support for Linux and Hardware Demos: Supports embedded Linux system, MIPI CSI camera input (7020 only), and comes with HDL demos—perfect for research and education.

Technical details

Package Dimensions 6.31 x 5.12 x 1.97 inches
Item Weight 7 ounces
Manufacturer SCFPGA
ASIN B0FGXGFRS6
Item model number PZ7010-StarLite/PZ7020-StarLite
Customer Reviews

5.0 out of 5 stars

(3)

5.0 out of 5 stars

Best Sellers Rank

Date First Available July 3, 2025
